Utility End Panel Spec

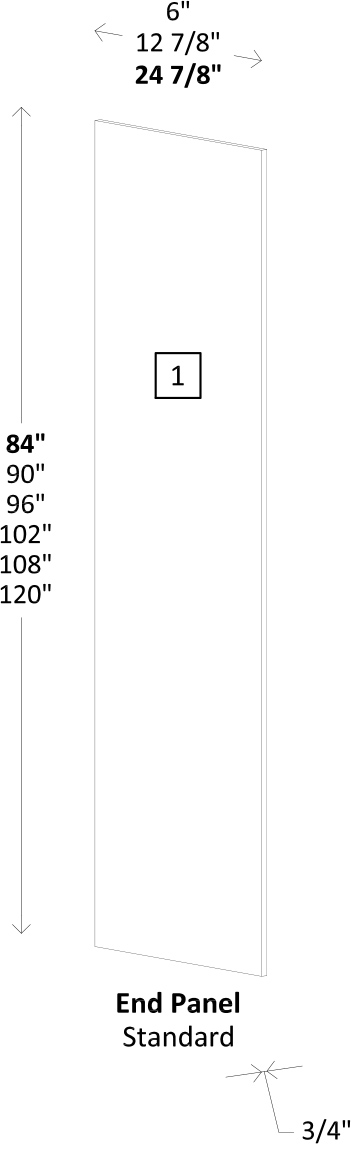

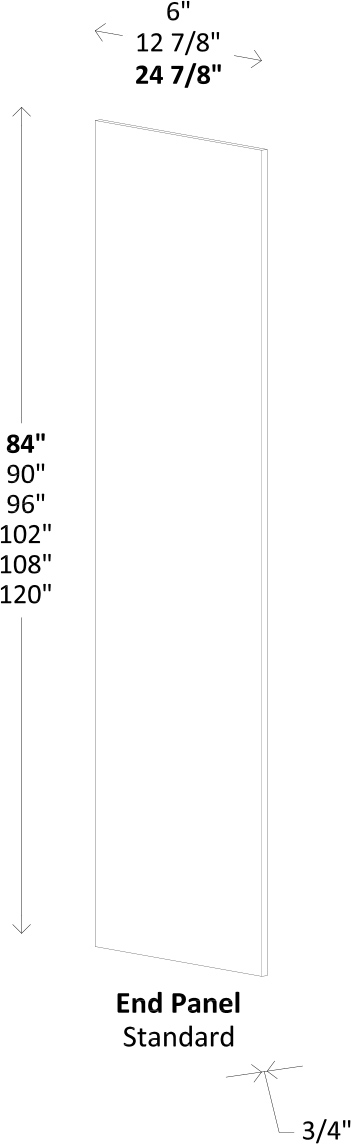

Standard Configurations
| No. |
Item Code |
Panel Depth |
| 1 |
UEP84-24.875 |
24 7/8" |
| 2 |
UEPL3-84-24L |
24" |
| 3 |
UEPJ3-84-24.875L |
24 7/8" |
| 4 |
UEPU3-84-24.875 |
24 7/8" |
Design Notes
- See Utility - End Panel Specifications for Available Modifications to Achieve Additional Panel End Configurations

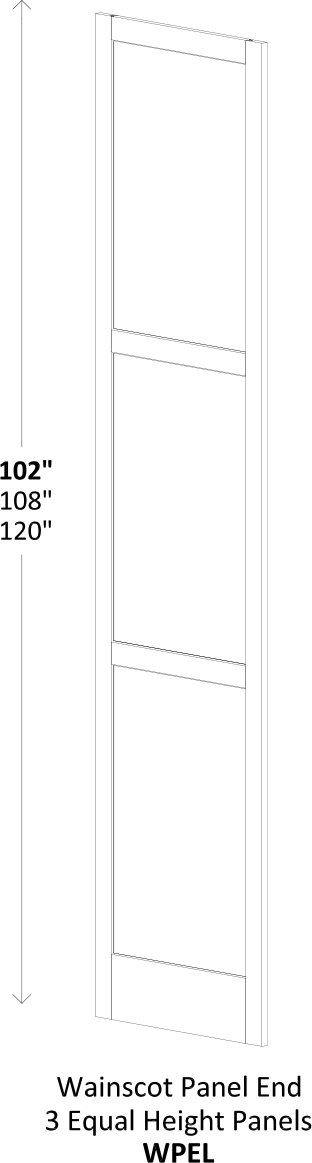

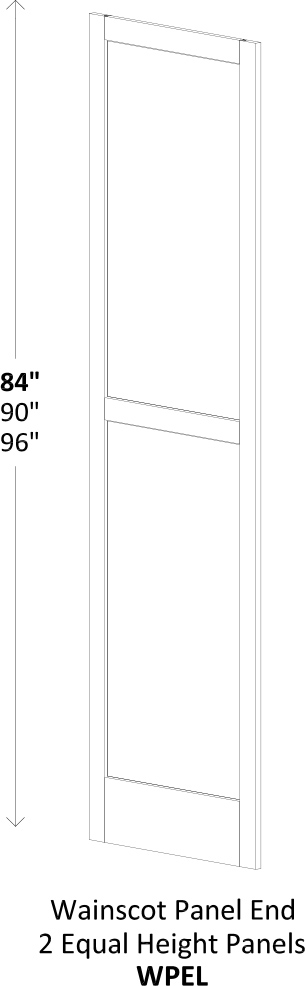

Utility - End Panel
Modification Name and Code to Achieve Additional Panel End Configuration
| Item Code |
End Panel Depth |
| UEP84-6 |
6" |
| UEP84-12.875 |
12 7/8" |
| UEP84-24.875 |
24 7/8" |
Design Notes
- See Door Specifications on Door Style Page for Minimum Size When Adding the WPEL/R Modification
- Finished Three Surfaces - Front, Left Side, and Right Side

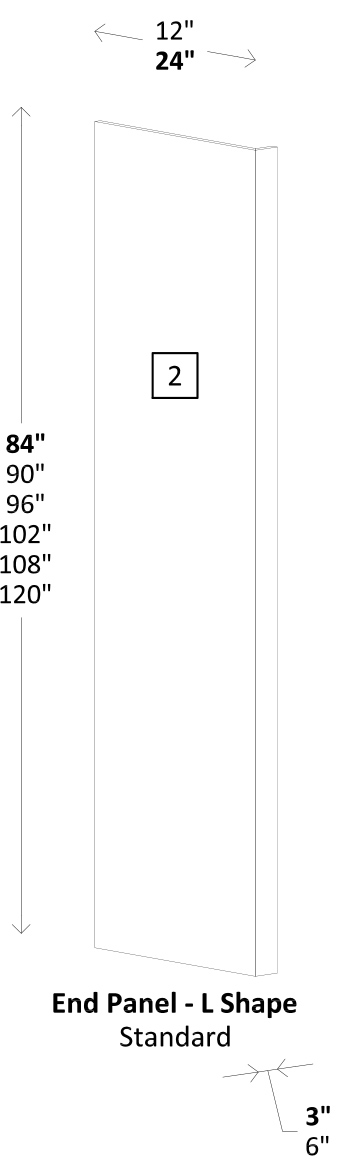

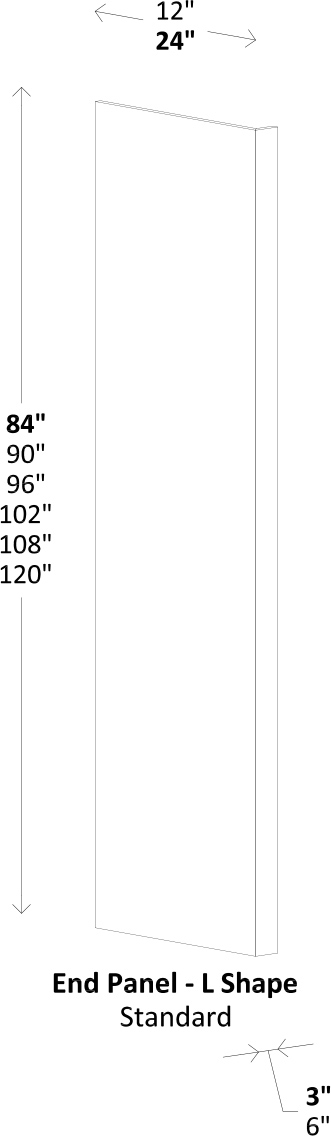

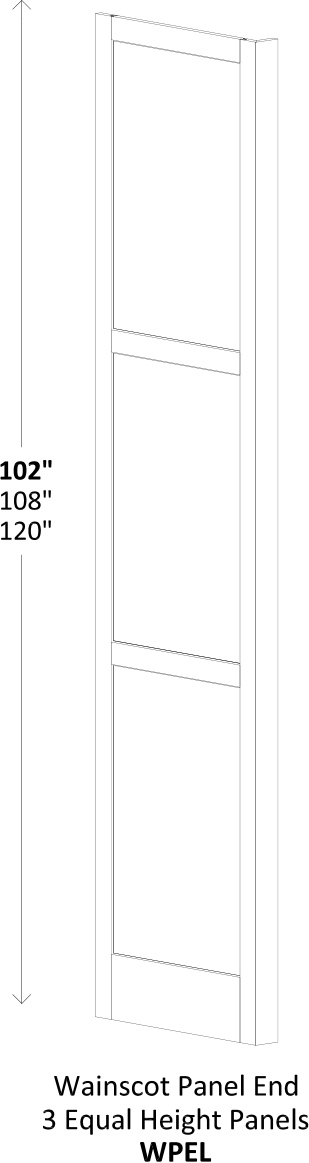

Utility - End Panel - L Shape
Modification Name and Code to Achieve Additional Panel End Configuration
3" Width
| Item Code |
End Panel Depth |
| UEPL3-84-12L |
12" |
| UEPL3-84-12R |
12" |
| UEPL3-84-24L |
24" |
| UEPL3-84-24R |
24" |
6" Width
| Item Code |
End Panel Depth |
| UEPL6-84-12L |
12" |
| UEPL6-84-12R |
12" |
| UEPL6-84-24L |
24" |
| UEPL6-84-24R |
24" |
Design Notes
- Left Shown - Right Opposite Shown
- Finished Three Surfaces - Front, Left Side, and Right Side

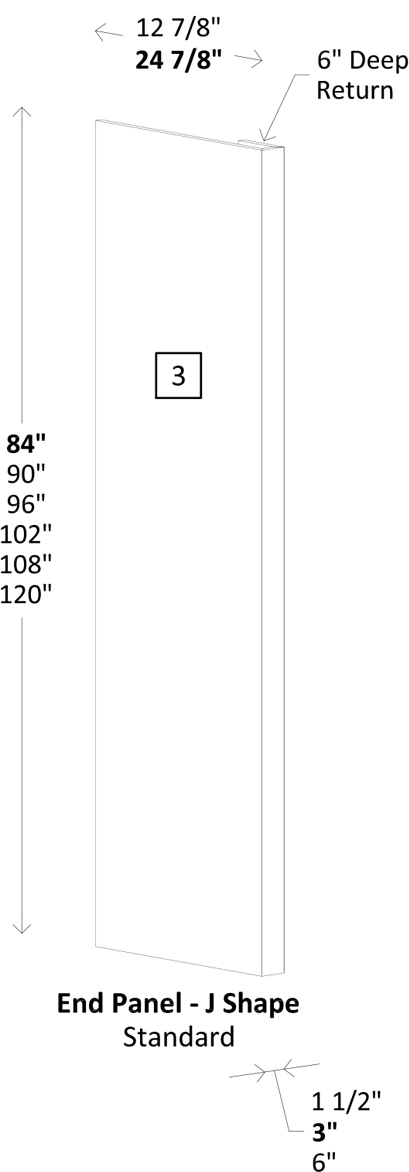

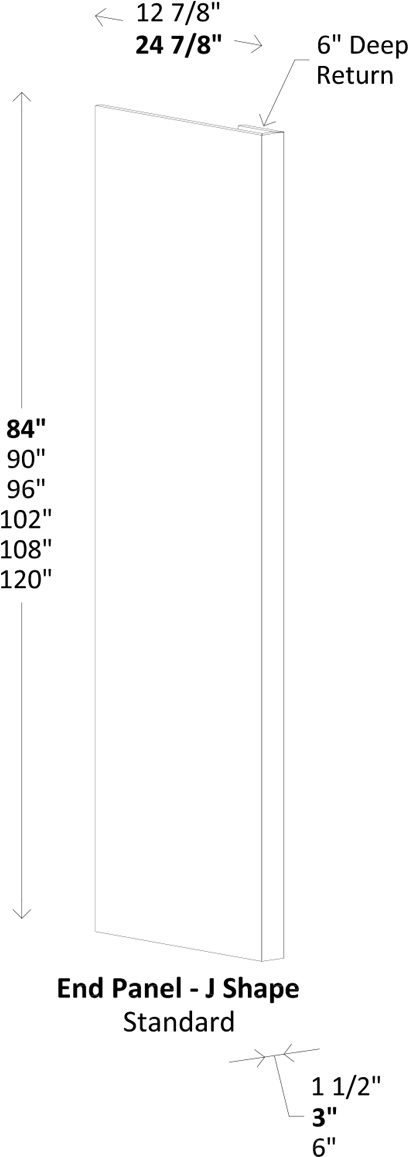

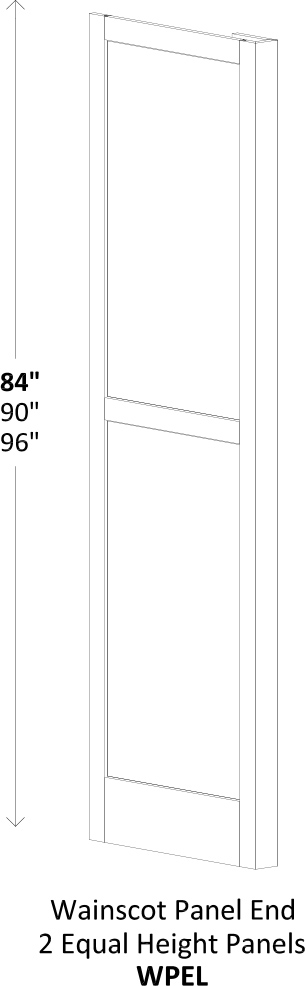

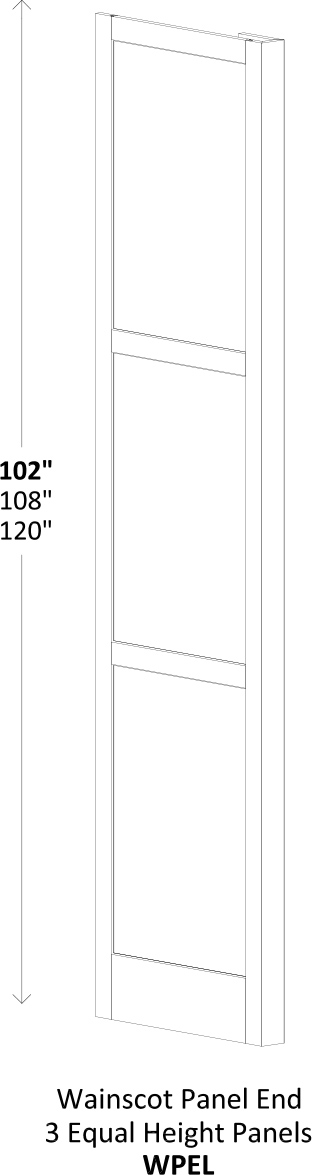

Utility - End Panel - J Shape
Modification Name and Code to Achieve Additional Panel End Configuration
1 1/2" Width
| Item Code |
End Panel Depth |
| UEPJ1.5-84-12.875L |
12 7/8" |
| UEPJ1.5-84-12.875R |
12 7/8" |
| UEPJ1.5-84-24.875L |
24 7/8" |
| UEPJ1.5-84-24.875R |
24 7/8" |
3" Width
| Item Code |
End Panel Depth |
| UEPJ3-84-12.875L |
12 7/8" |
| UEPJ3-84-12.875R |
12 7/8" |
| UEPJ3-84-24.875L |
24 7/8" |
| UEPJ3-84-24.875R |
24 7/8" |
6" Width
| Item Code |
End Panel Depth |
| UEPJ6-84-12.875L |
12 7/8" |
| UEPJ6-84-12.875R |
12 7/8" |
| UEPJ6-84-24.875L |
24 7/8" |
| UEPJ6-84-24.875R |
24 7/8" |
Design Notes
- Left Shown - Right Opposite Shown
- Inside Return Panel is 6" Deep
- Finished Three Surfaces - Front, Left Side, and Right Side

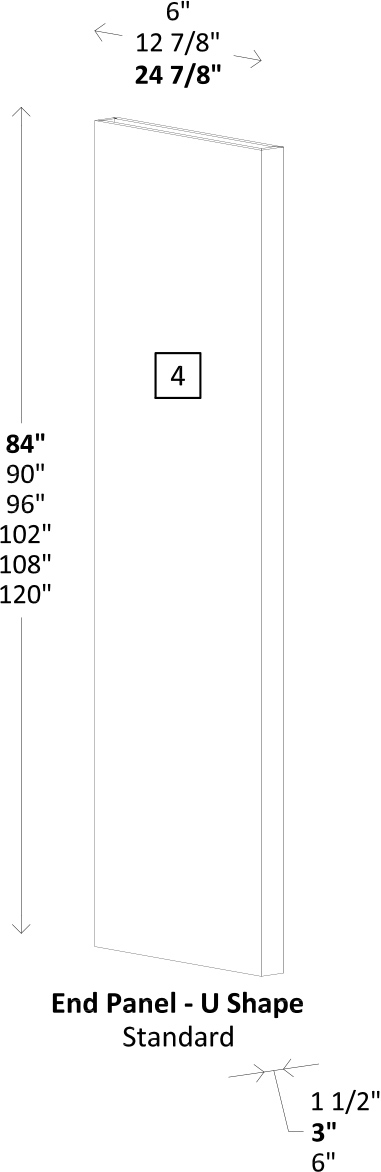

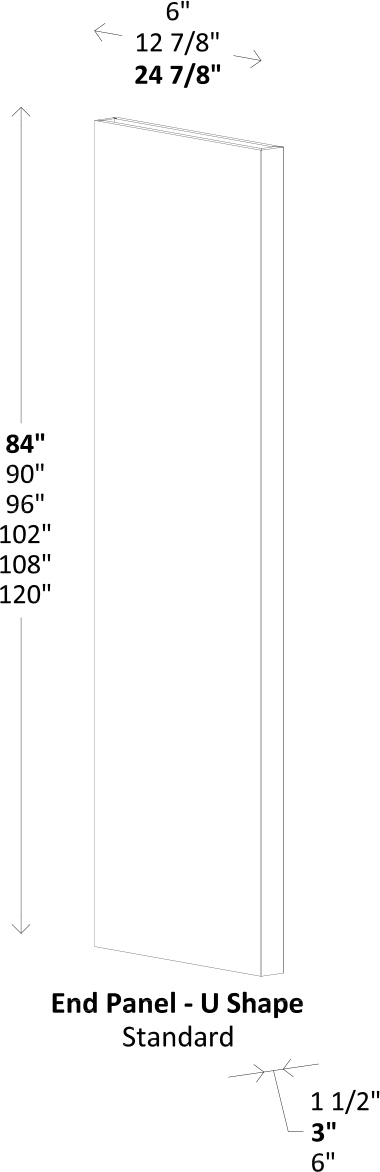

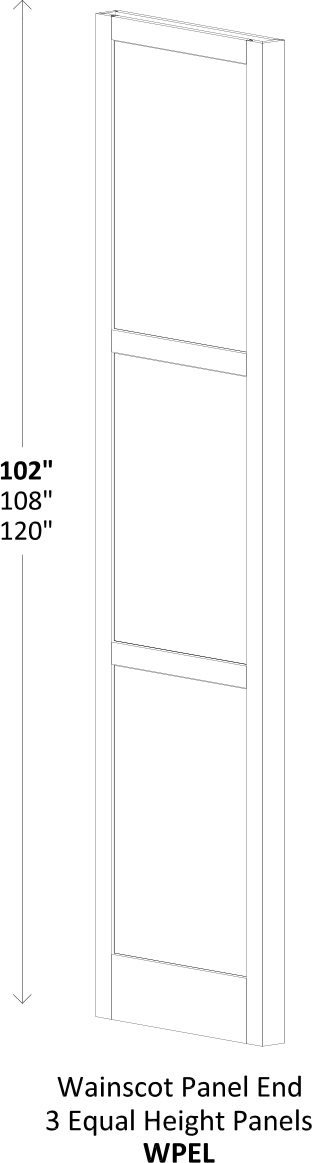

Utility - End Panel - U Shape
Modification Name and Code to Achieve Additional Panel End Configuration
1 1/2" Width
| Item Code |
End Panel Depth |
| UEPU1.5-84-6 |
6" |
| UEPU1.5-84-12.875 |
12 7/8" |
| UEPU1.5-84-24.875 |
24 7/8" |
3" Width
| Item Code |
End Panel Depth |
| UEPU3-84-6 |
6" |
| UEPU3-84-12.875 |
12 7/8" |
| UEPU3-84-24.875 |
24 7/8" |
6" Width
| Item Code |
End Panel Depth |
| UEPU6-84-6 |
6" |
| UEPU6-84-12.875 |
12 7/8" |
| UEPU6-84-24.875 |
24 7/8" |
Design Notes

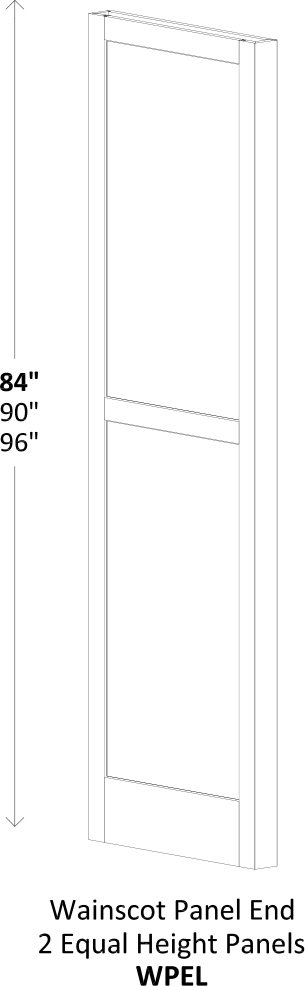

- See Door Specifications on Door Style Page for Minimum Size When Adding the WPEL/R Modification
- Finished Three Surfaces - Front, Left Side, and Right Side
