Top Drawer - Cutlery Inserts Spec

Overview

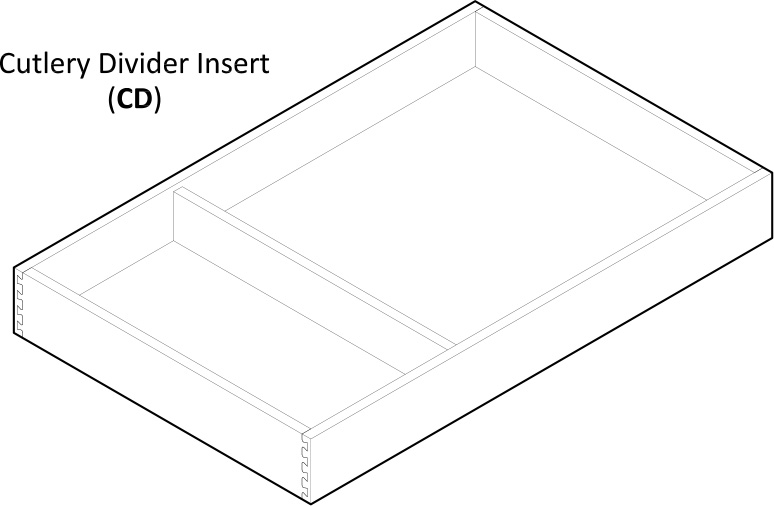

Specsheet Mod Top Drawer Cutlery Insert Overview 1

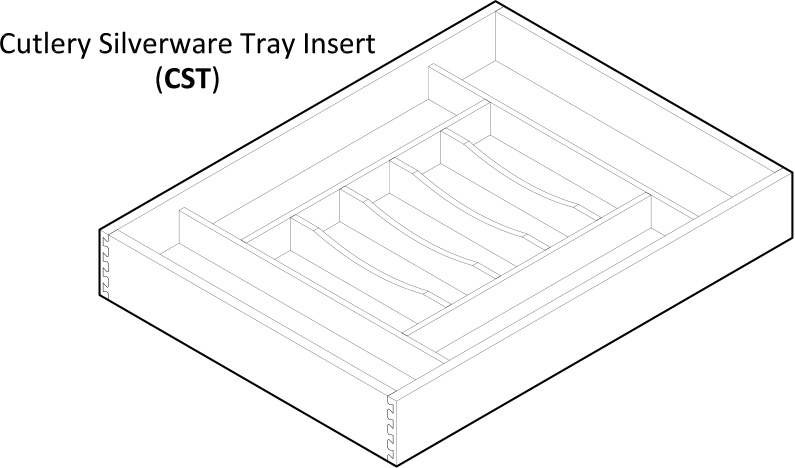

Specsheet Mod Top Drawer Cutlery Insert Overview 2

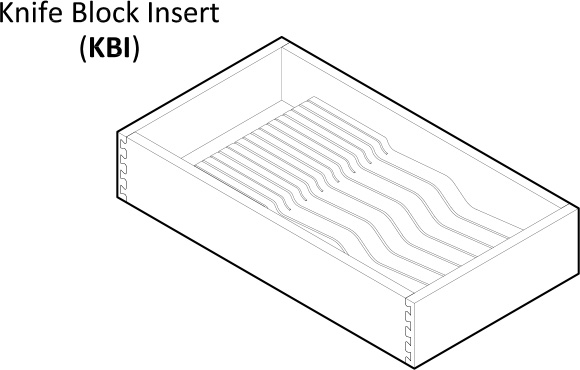

Specsheet Mod Top Drawer Cutlery Insert Overview 5

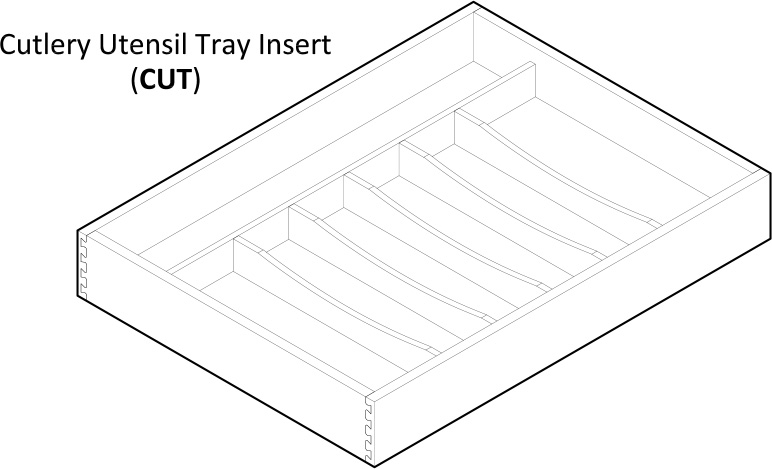

Specsheet Mod Top Drawer Cutlery Insert Overview 3

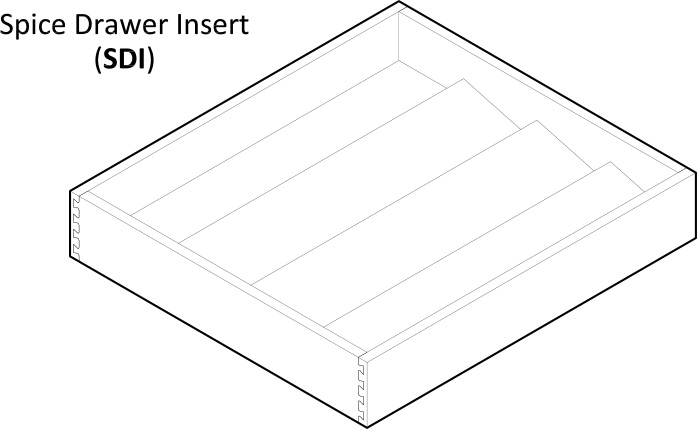

Specsheet Mod Top Drawer Cutlery Insert Overview 4

Design Notes

Cutlery Insert Images are for Reference Only - Configuration of Inserts May Vary Based on Width of Cabinet Ordered

Cutlery Divider Insert (CD)

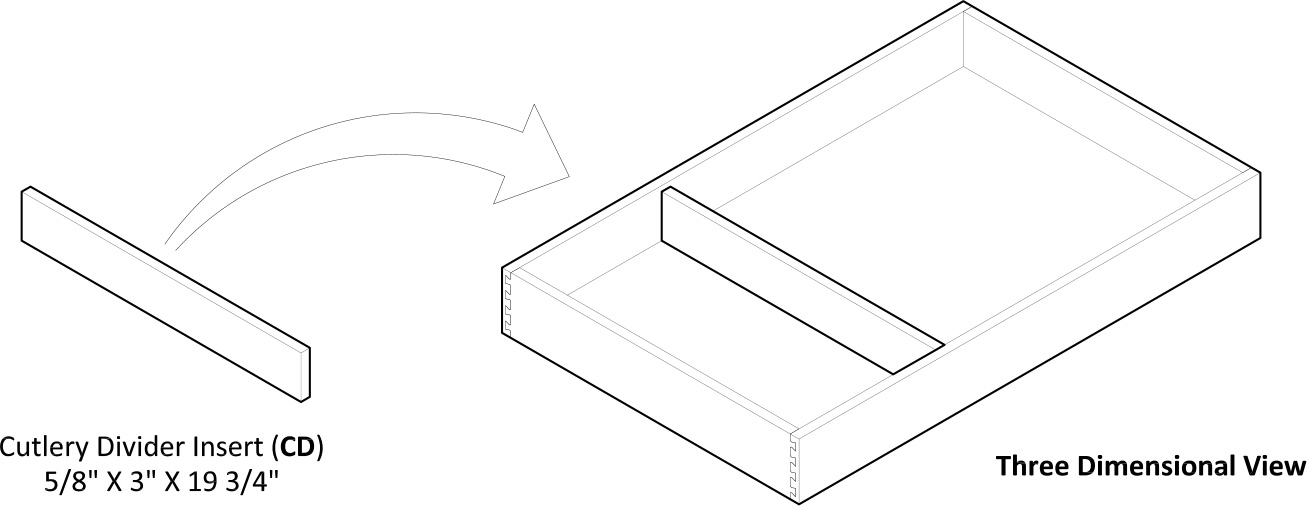

Specsheet Mod Top Drawer Cutlery Divider 1

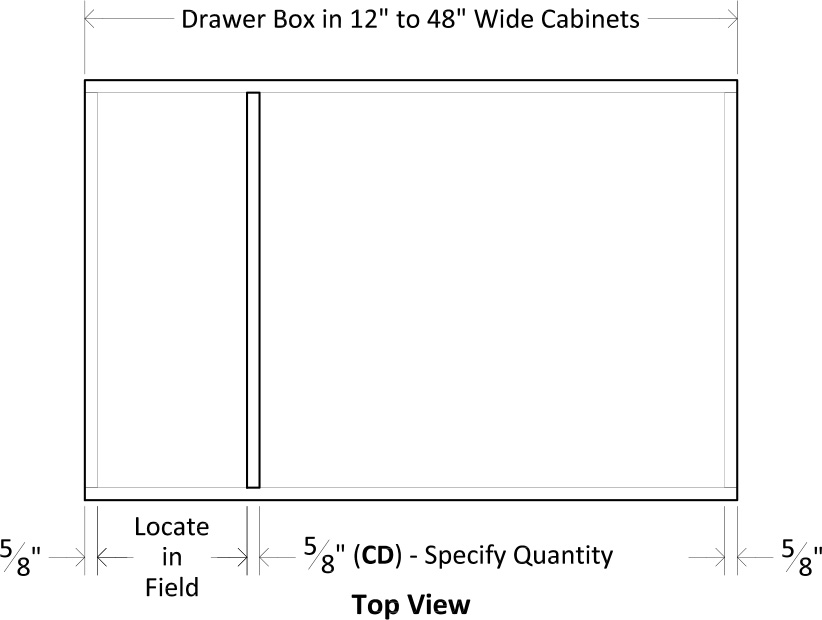

Specsheet Mod Top Drawer Cutlery Divider 2

Design Notes

Cutlery Divider Insert (CD) is Available in Base Cabinet Top Drawers
Material: Natural Maple
Loose Divider(s) are Intended to be Oriented Front to Back in the Drawer Box
Specify Quantity of Dividers
Cutlery Divider Insert Height = 3"

↑ Return to Overview

Cutlery Silverware Tray Insert (CST)

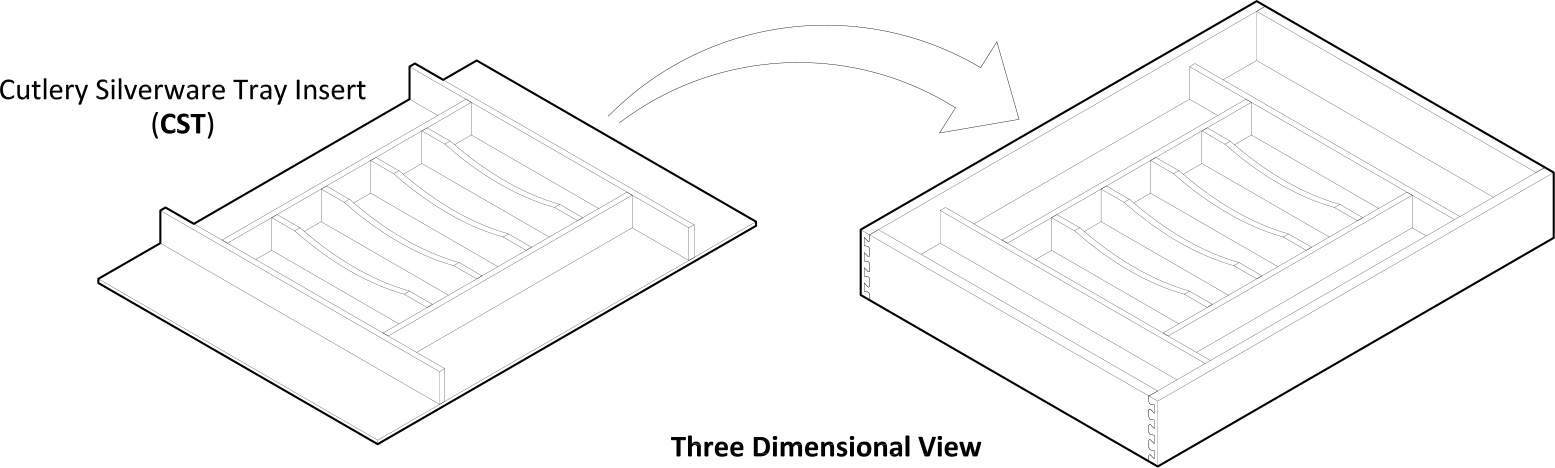

Specsheet Mod Top Drawer Cutlery Tray 1

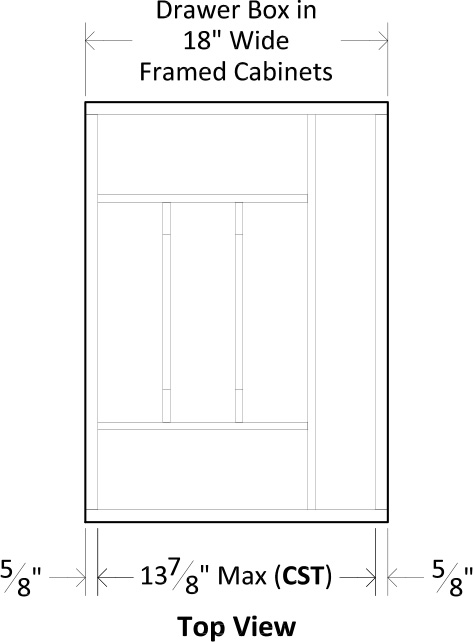

Specsheet Mod Top Drawer Cutlery Tray 2

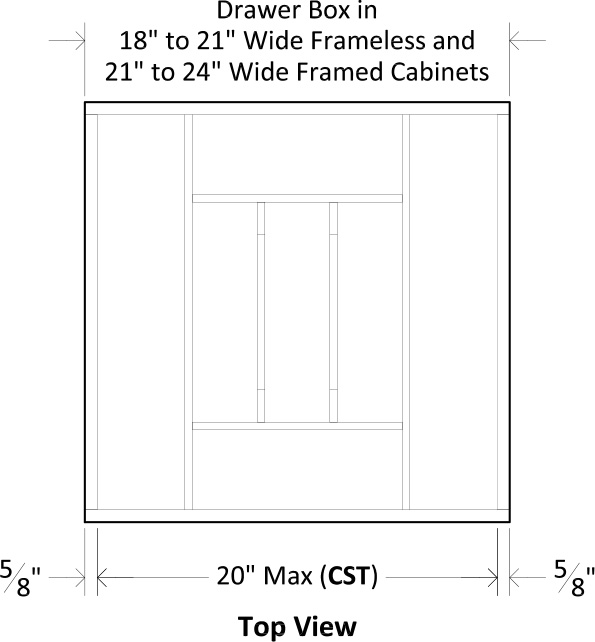

Specsheet Mod Top Drawer Cutlery Tray 3

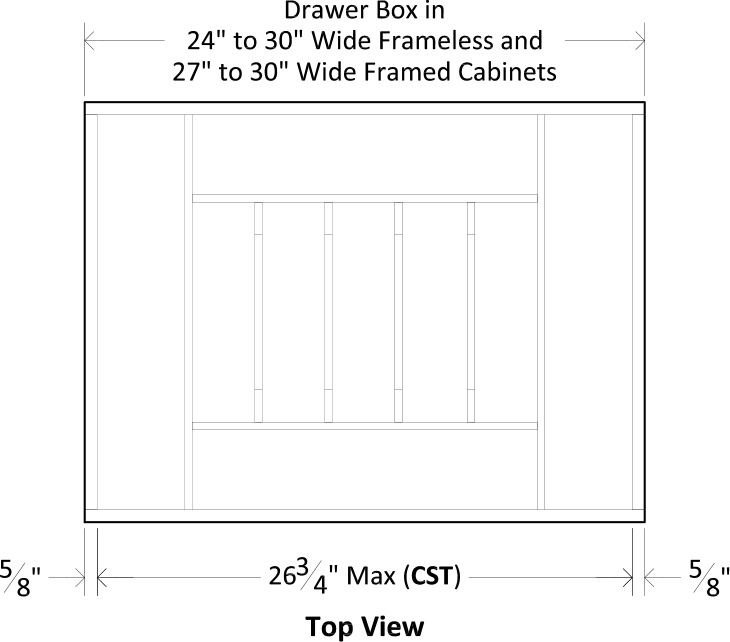

Specsheet Mod Top Drawer Cutlery Tray 4

Design Notes

Cutlery Silverware Tray Insert (CST) is Available in Base Cabinet Top Drawers
Material: Natural Maple
Cut Down Logic: Cutlery Silverware Tray Inserts are Ordered in Three Widths - 13.875" | 20" | 26.75" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior (Left and Right Ends are to be Cut Down Equally - If Ends would be Less than 2" Wide, Cut One End Off and Trim the Other End to Fit)

↑ Return to Overview

Knife Block Insert (KBI)

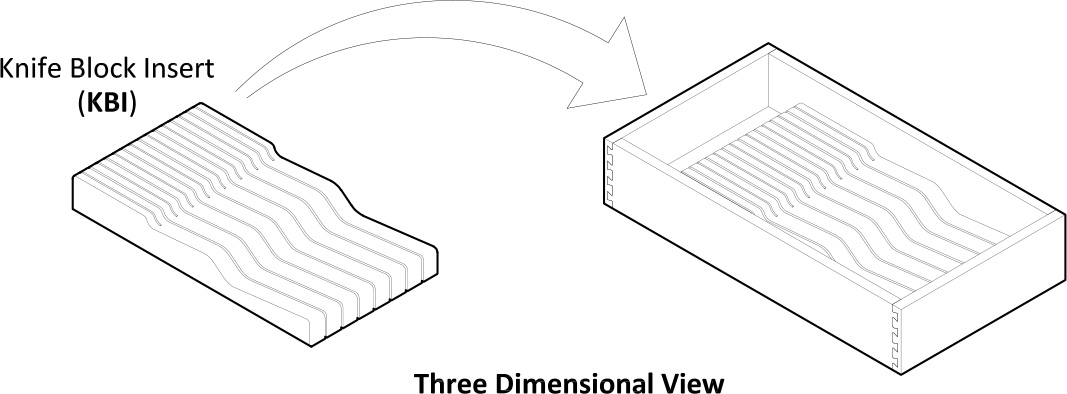

Specsheet Mod Top Drawer Knife Block 1

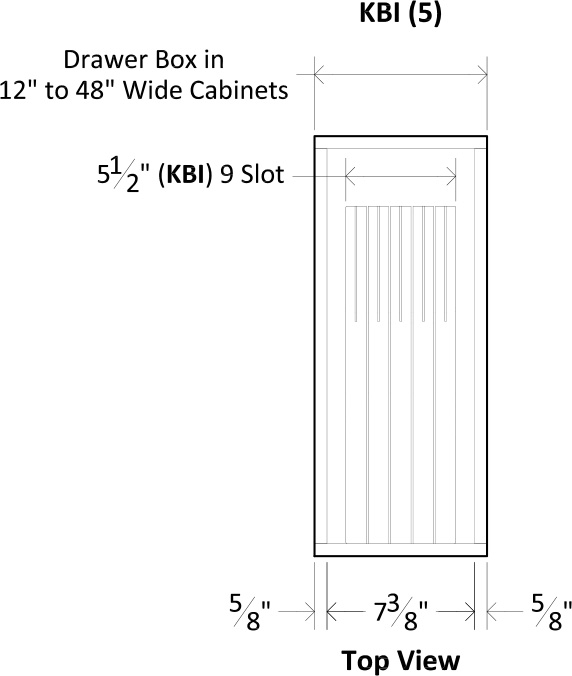

Specsheet Mod Top Drawer Knife Block 2

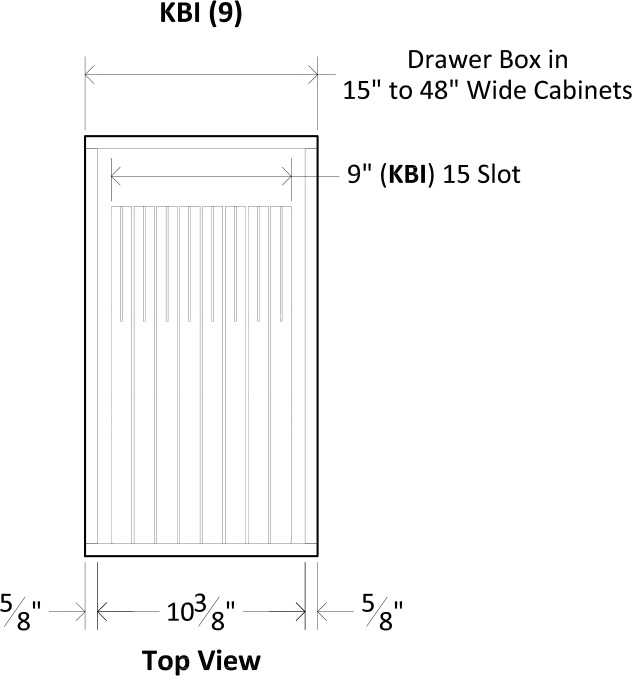

Specsheet Mod Top Drawer Knife Block 3

Design Notes

Knife Block Insert (KBI) is Available in Base Cabinet Top Drawers
Material: Natural Maple
Specify Choice of Knife Block Insert Width: 5 or 9

↑ Return to Overview

Cutlery Utensil Tray Insert (CUT)

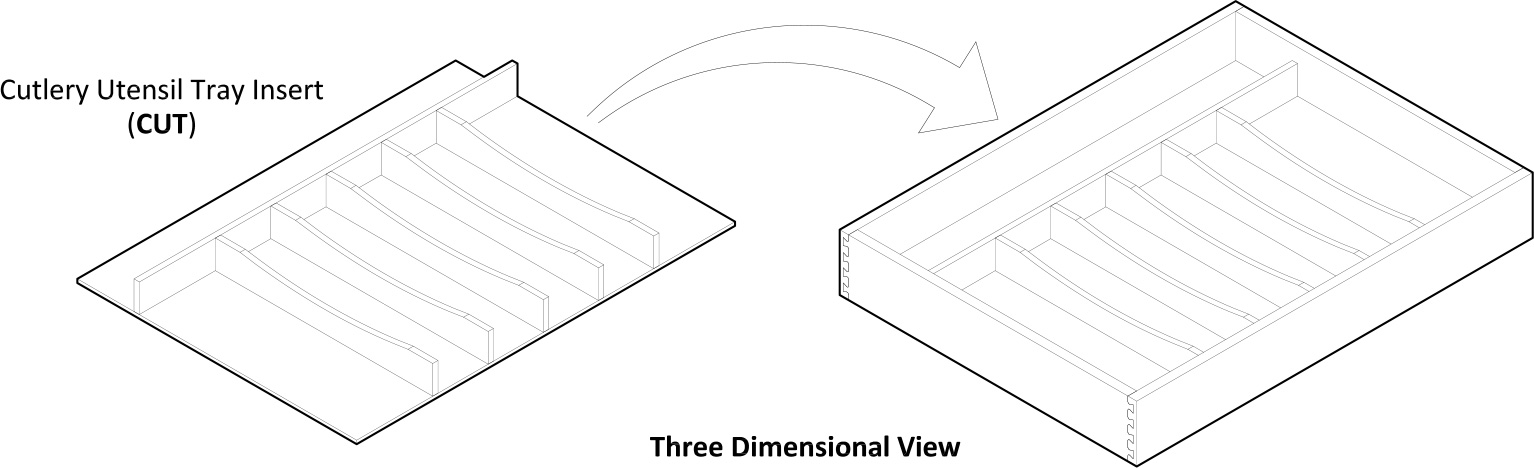

Specsheet Mod Top Drawer Utensil 1

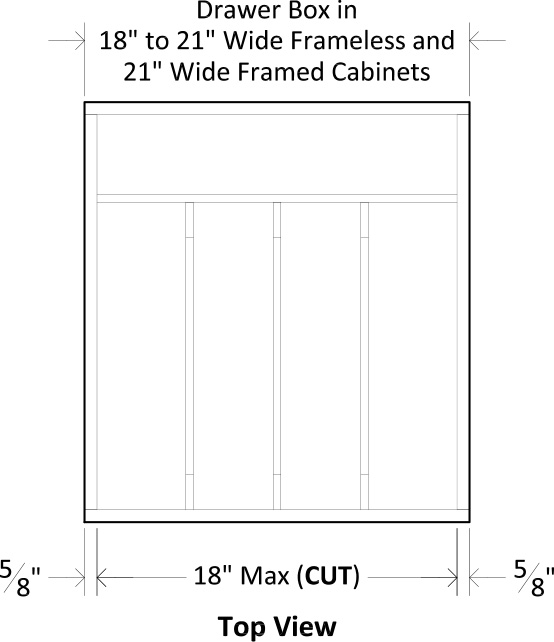

Specsheet Mod Top Drawer Utensil 2

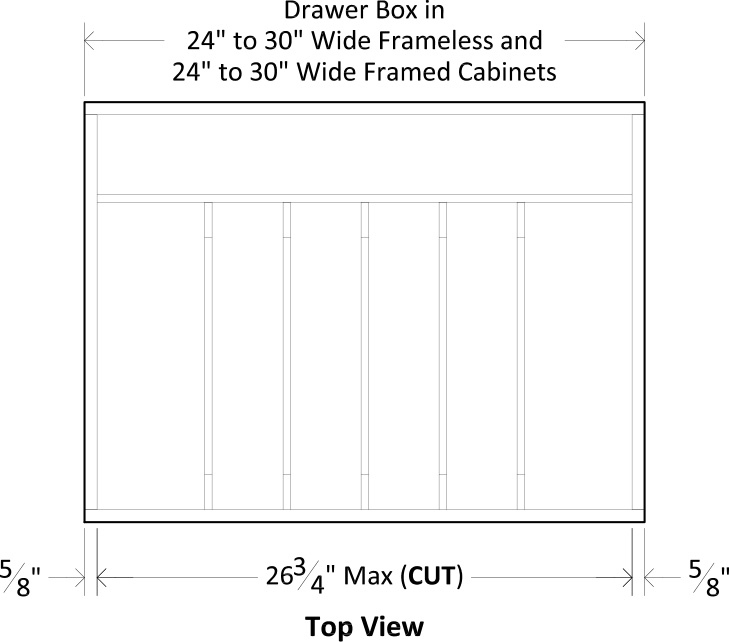

Specsheet Mod Top Drawer Utensil 3

Design Notes

Cutlery Utensil Tray Insert (CUT) is Available in Base Cabinet Top Drawers
Material: Natural Maple
Cut Down Logic: Cutlery Utensil Tray Inserts are Ordered in Two Widths - 18" | 26.75" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior (Left and Right Ends are to be Cut Down Equally - If Ends would be Less than 2" Wide, Cut One End Off and Trim the Other End to Fit)

↑ Return to Overview

Spice Drawer Insert (SDI)

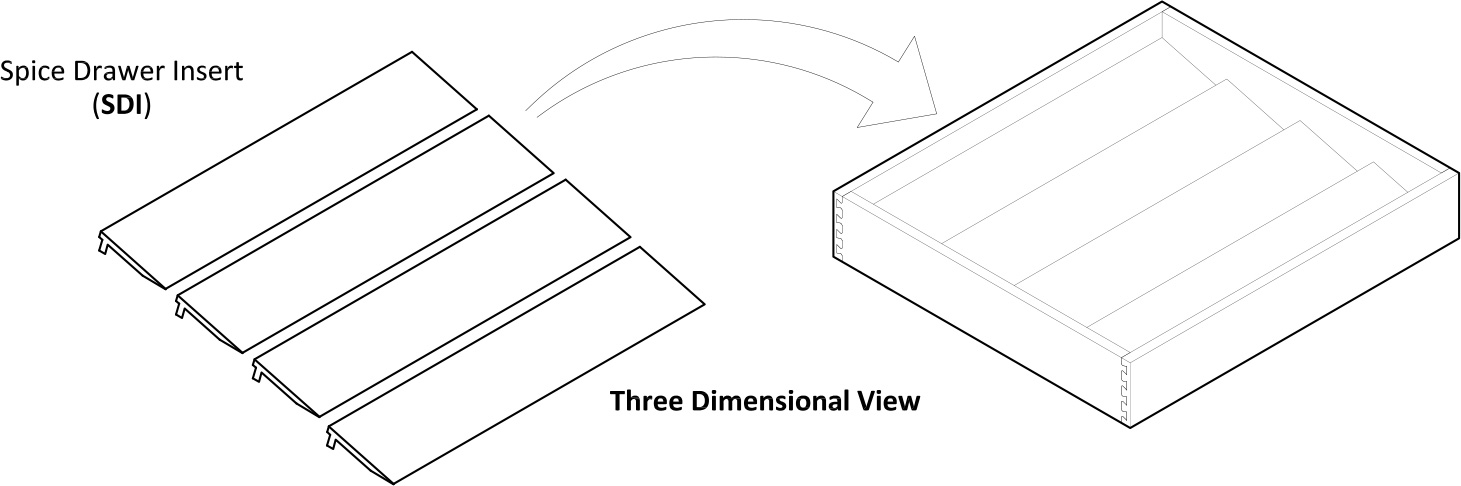

Specsheet Mod Top Drawer Spice 1

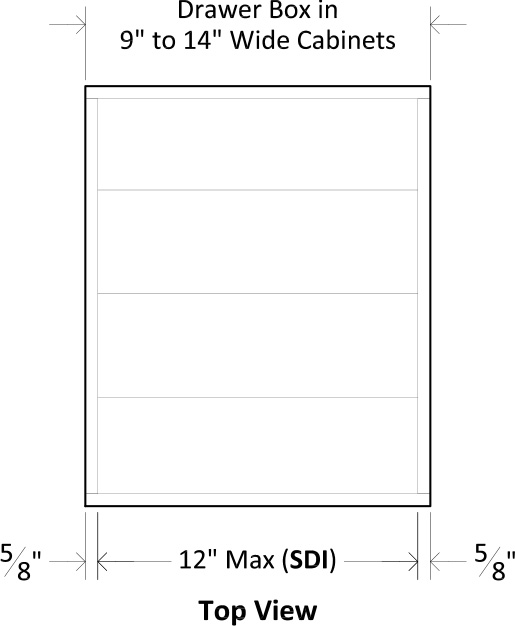

Specsheet Mod Top Drawer Spice 2

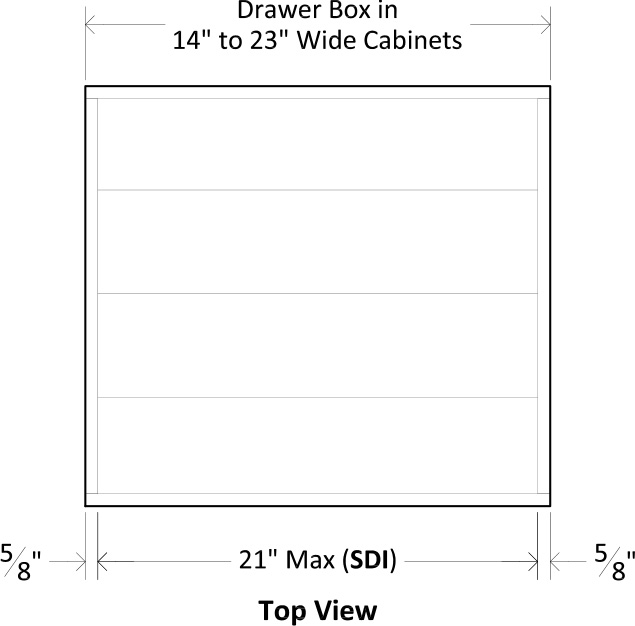

Specsheet Mod Top Drawer Spice 3

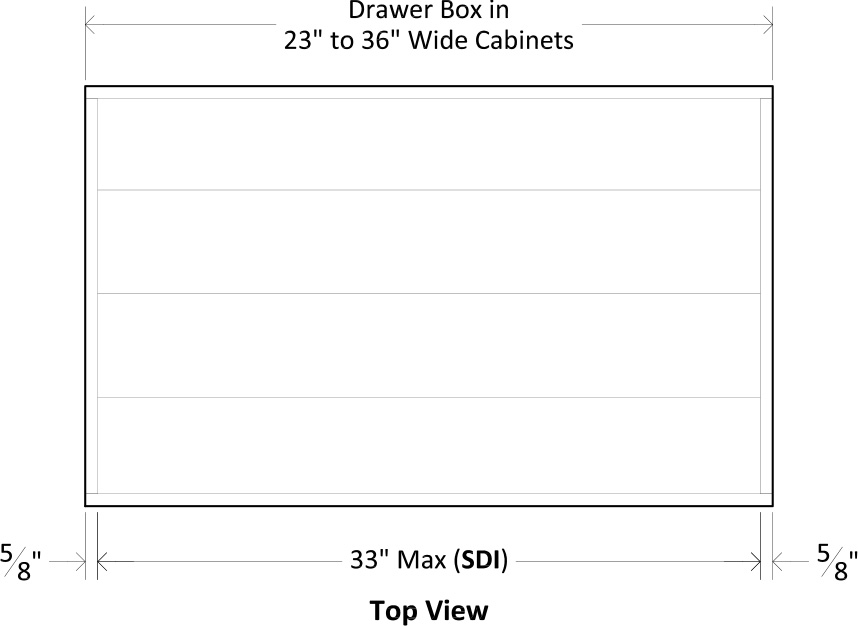

Specsheet Mod Top Drawer Spice 4

Design Notes

Spice Drawer Insert (SDI) is Available in Base Cabinet Top Drawers
Material: Natural Maple
Cut Down Logic: Spice Drawer Inserts are Ordered in Three Widths - 12" | 21" | 33" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior

↑ Return to Overview
