Top Drawer - Cutlery Combo Inserts Spec

Overview

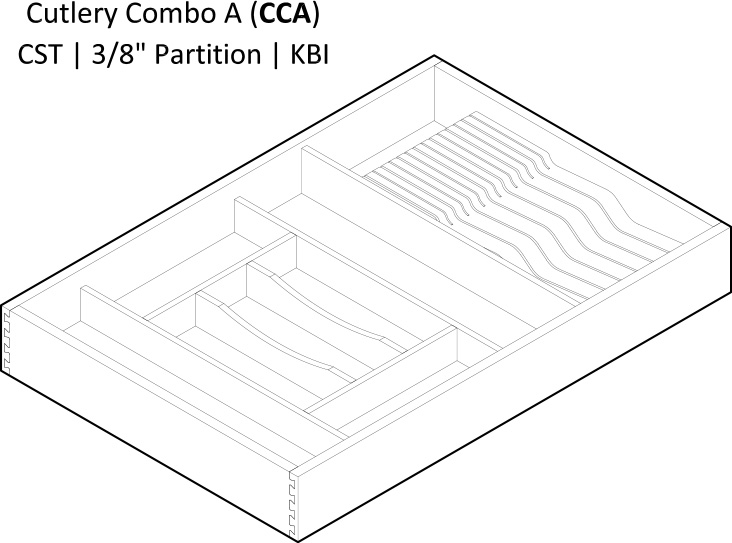

Specsheet Topdrawer Cutlery Combo Overview A
Specsheet Topdrawer Cutlery Combo Overview B

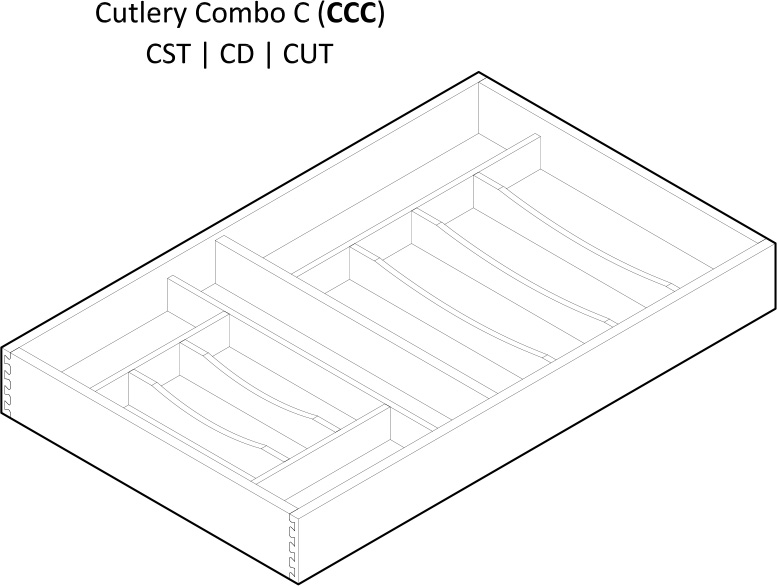

Specsheet Topdrawer Cutlery Combo Overview C

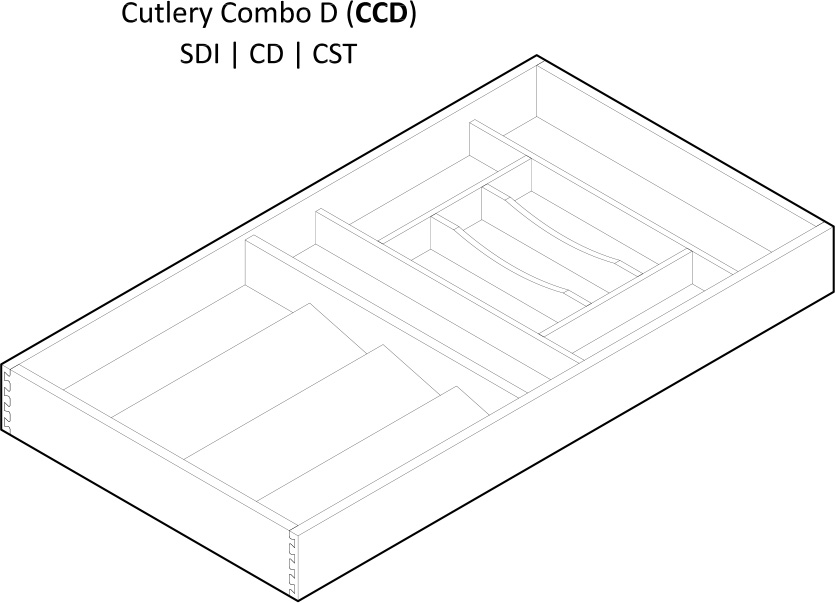

Specsheet Topdrawer Cutlery Combo Overview D

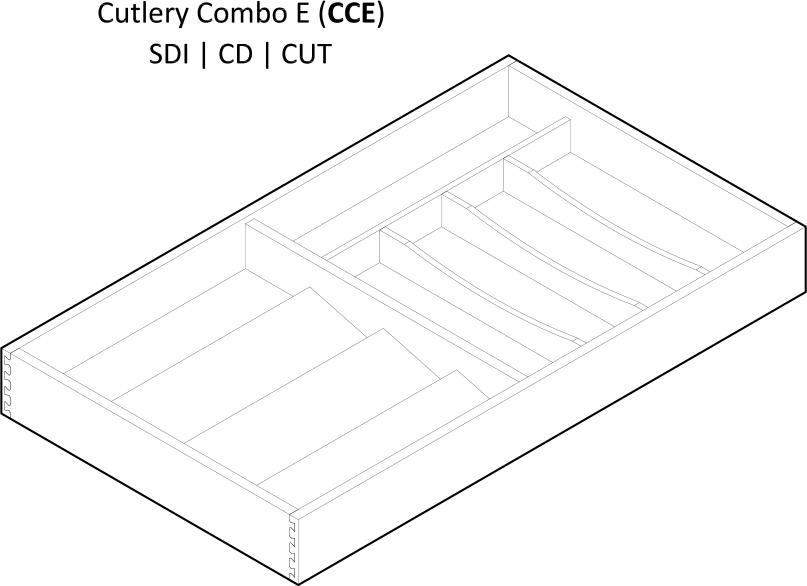

Specsheet Topdrawer Cutlery Combo Overview E

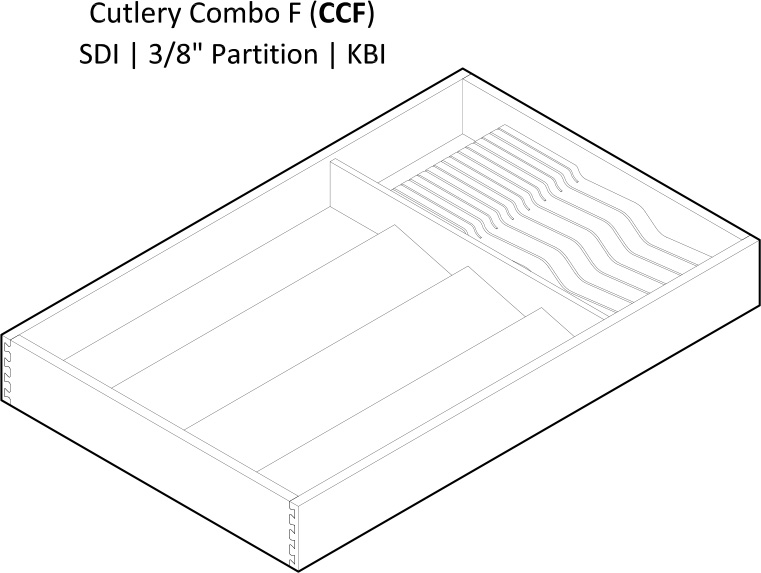

Specsheet Topdrawer Cutlery Combo Overview F
Item Code Description
CD Cutlery Divider Insert
CST Cutlery Silverware Tray Insert
CUT Cutlery Utensil Tray Insert
KBI Knife Block Insert
SDI Spice Drawer Insert

Design Notes

  • Cutlery Combo Inserts Images are for Reference Only - Configuration of Inserts May Vary Based on Width of Cabinet Ordered

Cutlery Combo A - CST | KBI Inserts (CCA)

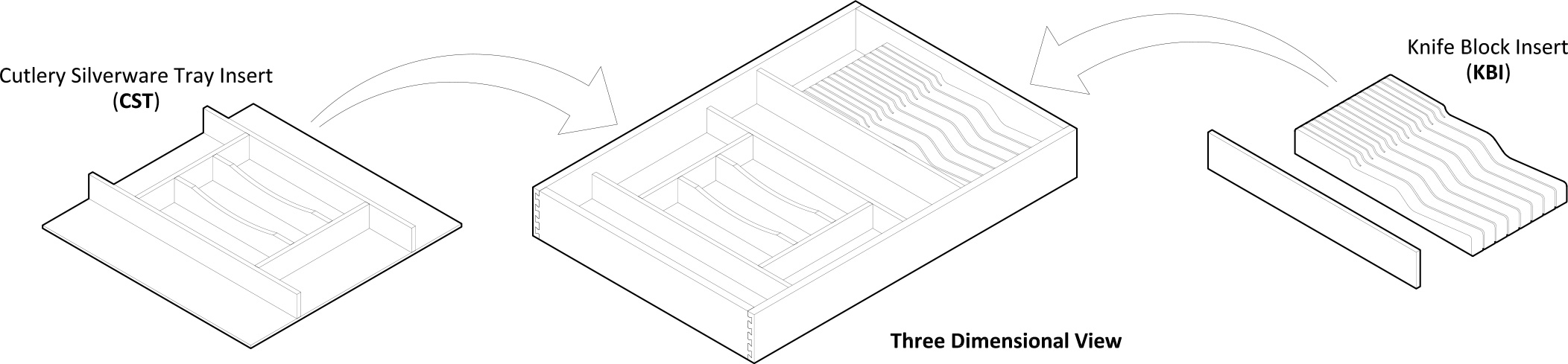

Specsheet Mod Topdrawer Cutlery Combo A 1

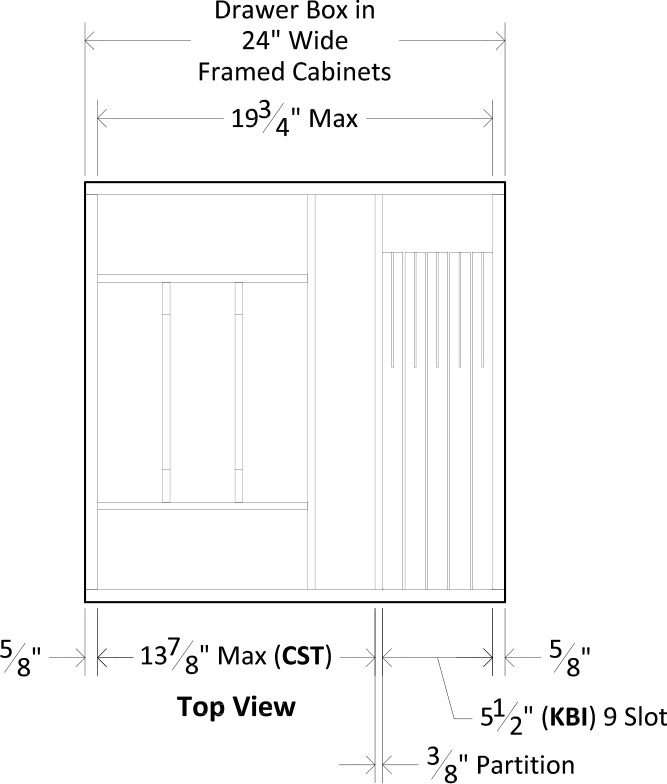

Specsheet Mod Topdrawer Cutlery Combo A 2

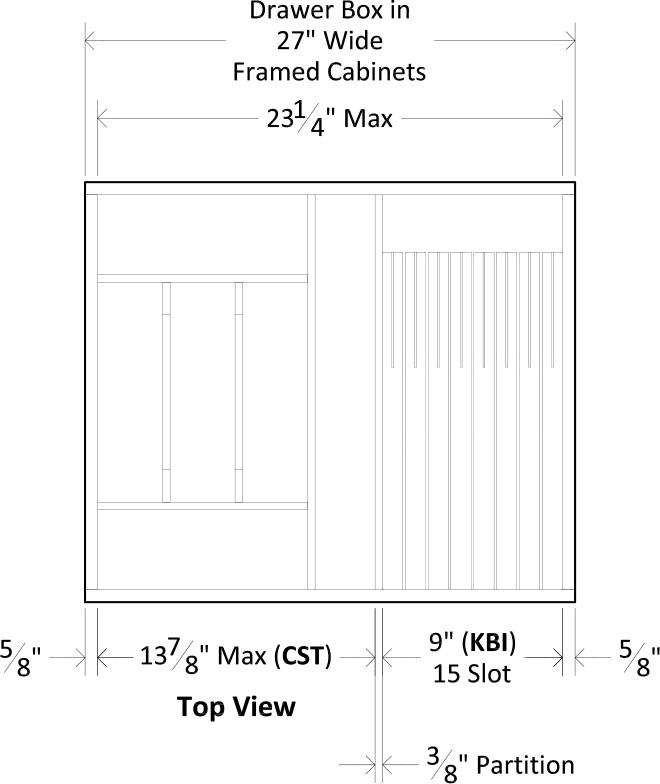

Specsheet Mod Topdrawer Cutlery Combo A 3

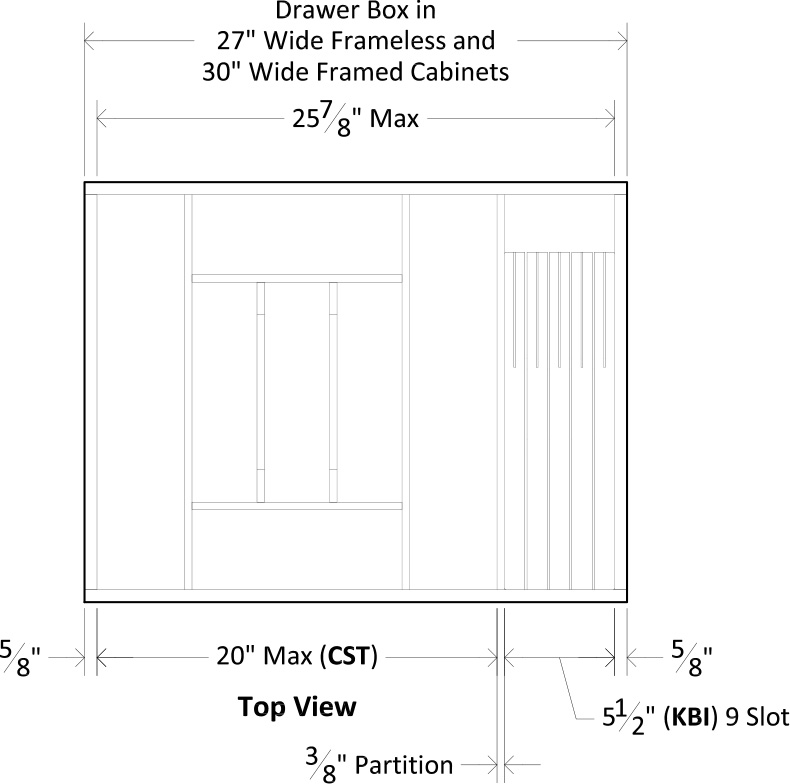

Specsheet Mod Topdrawer Cutlery Combo A 4

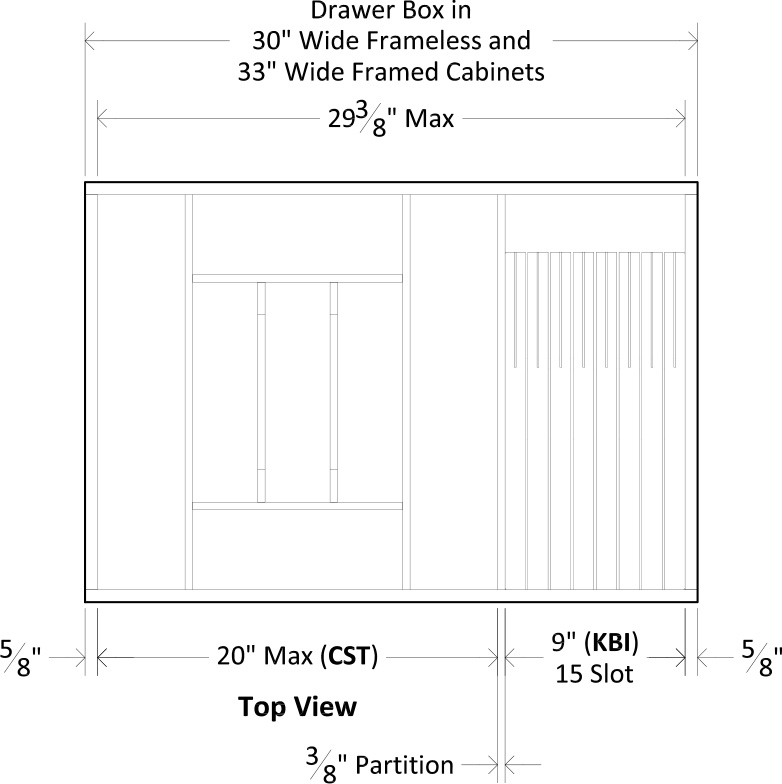

Specsheet Mod Topdrawer Cutlery Combo A 5

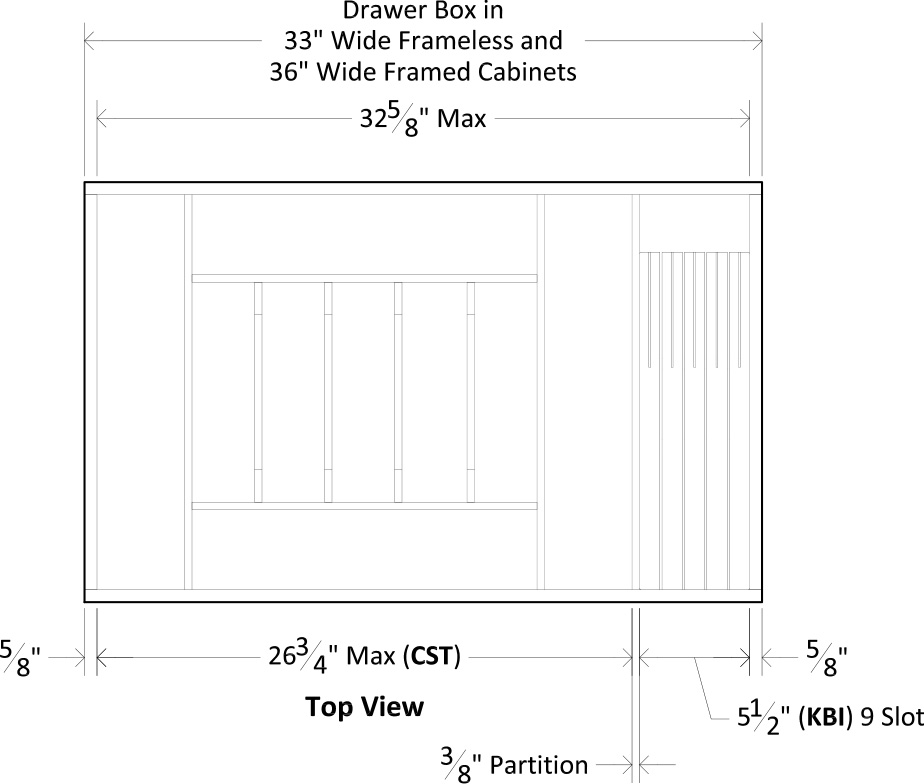

Specsheet Mod Topdrawer Cutlery Combo A 6

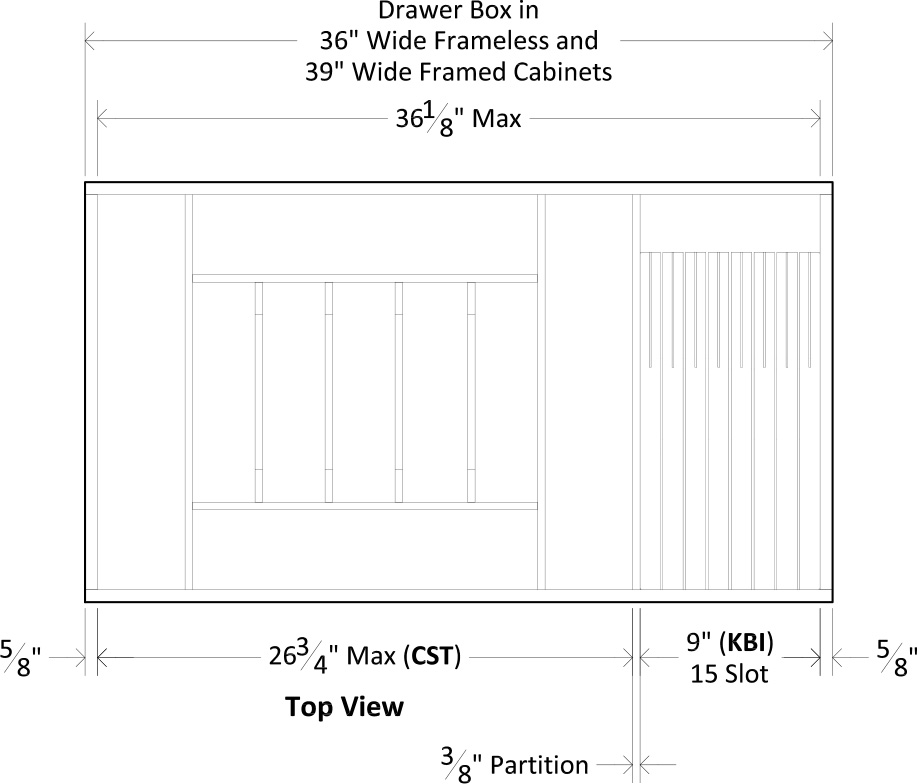

Specsheet Mod Topdrawer Cutlery Combo A 7

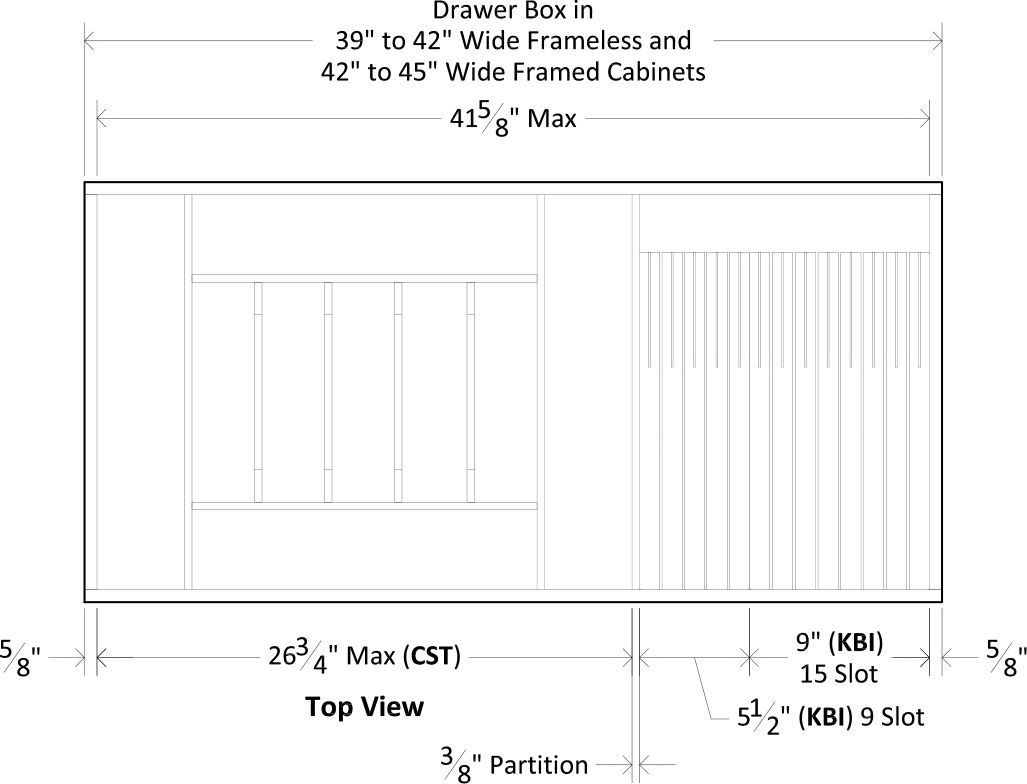

Specsheet Mod Topdrawer Cutlery Combo A 8

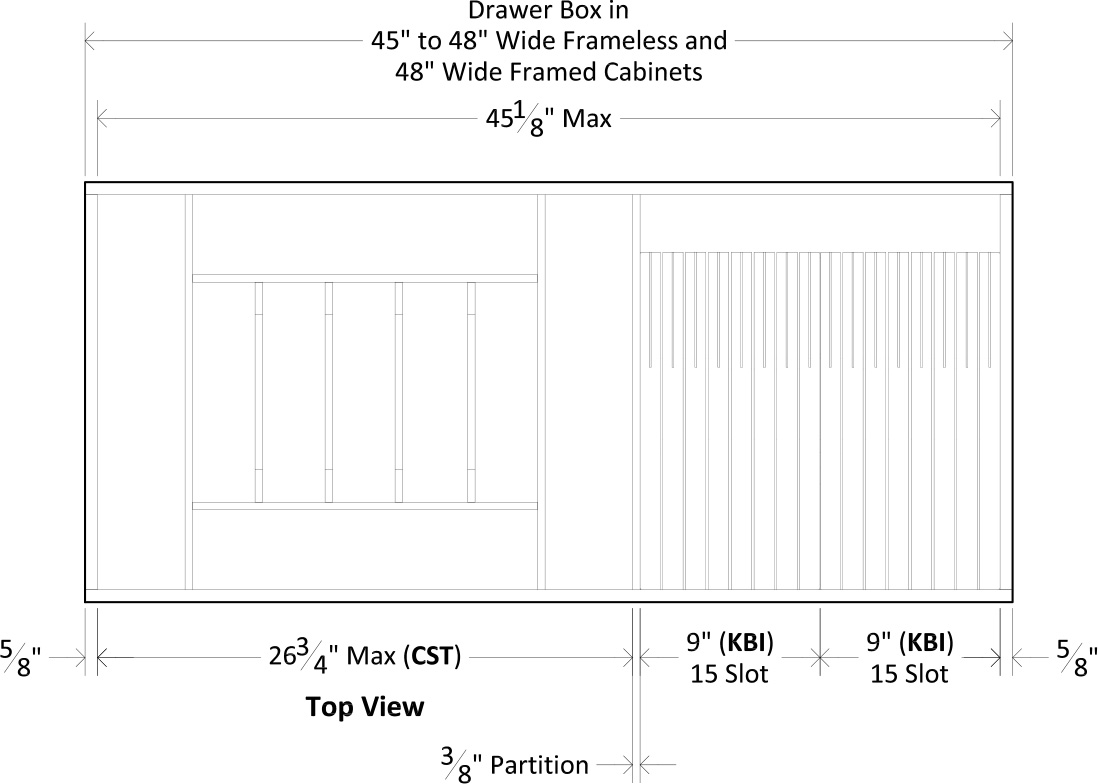

Specsheet Mod Topdrawer Cutlery Combo A 9

Design Notes

  • Cutlery Combo A - CST | KBI Inserts (CCA) is Available in Base Cabinet Top Drawers
  • Material: Natural Maple
  • 3/8" Thick Partition Between the CST and KBI is Included with the KBI from the Supplier
  • Cut Down Logic: Cutlery Silverware Tray Inserts (CST) are Ordered in Three Widths - 13.875" | 20" | 26.75" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior (Left and Right Ends are to be Cut Down Equally - If Ends would be Less than 2" Wide, Cut One End Off and Trim the Other End to Fit)
↑ Return to Overview

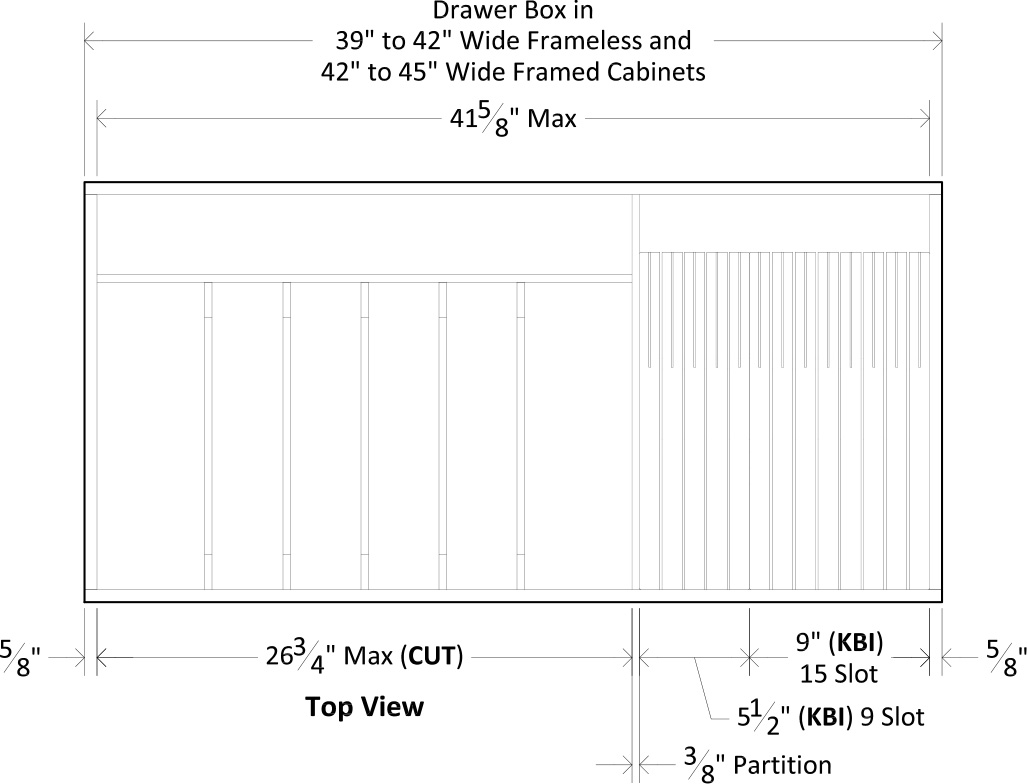

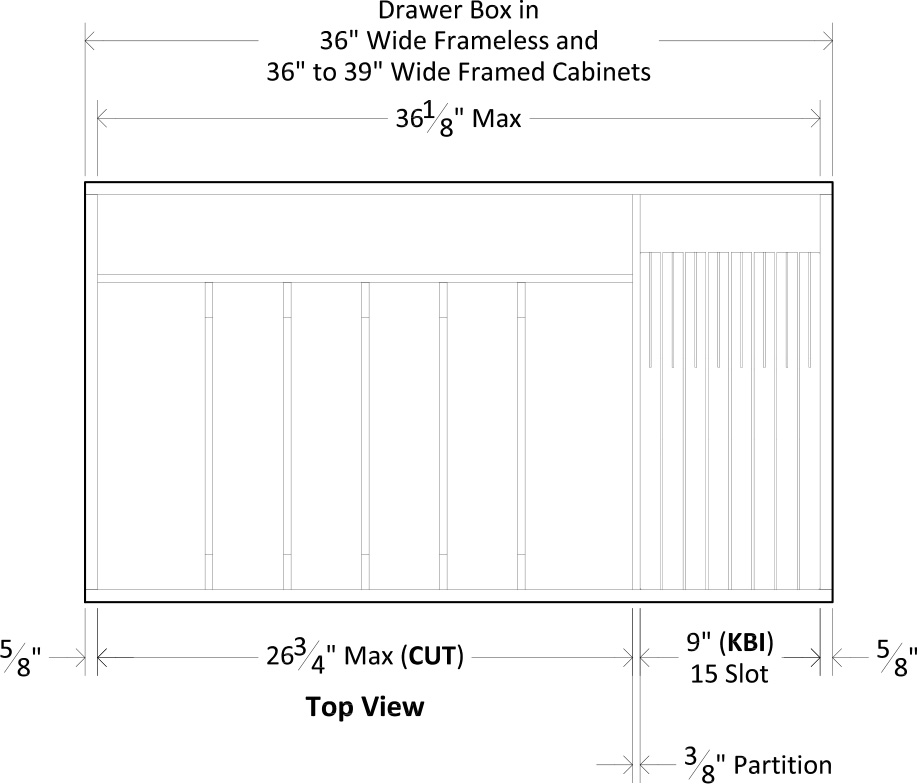

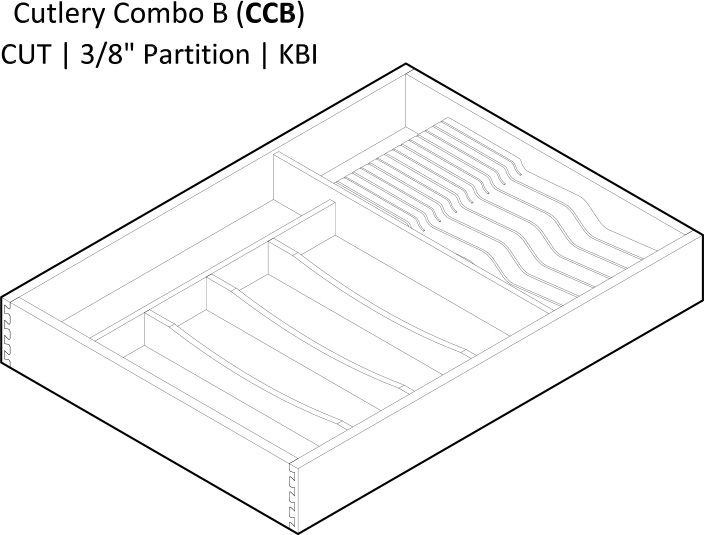

Cutlery Combo B - CUT | KBI Inserts (CCB)

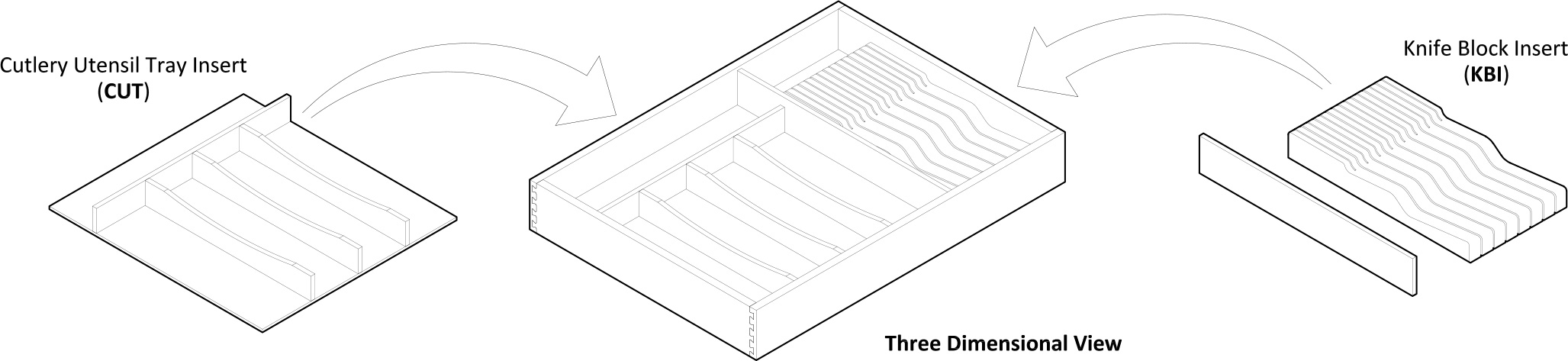

Specsheet Mod Topdrawer Cutlery Combo B 1

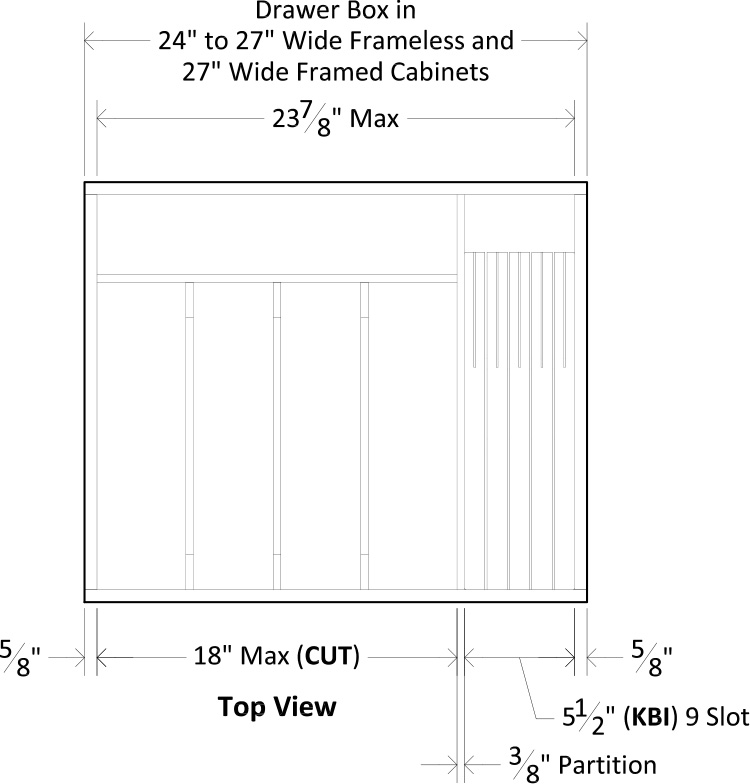

Specsheet Mod Topdrawer Cutlery Combo B 2

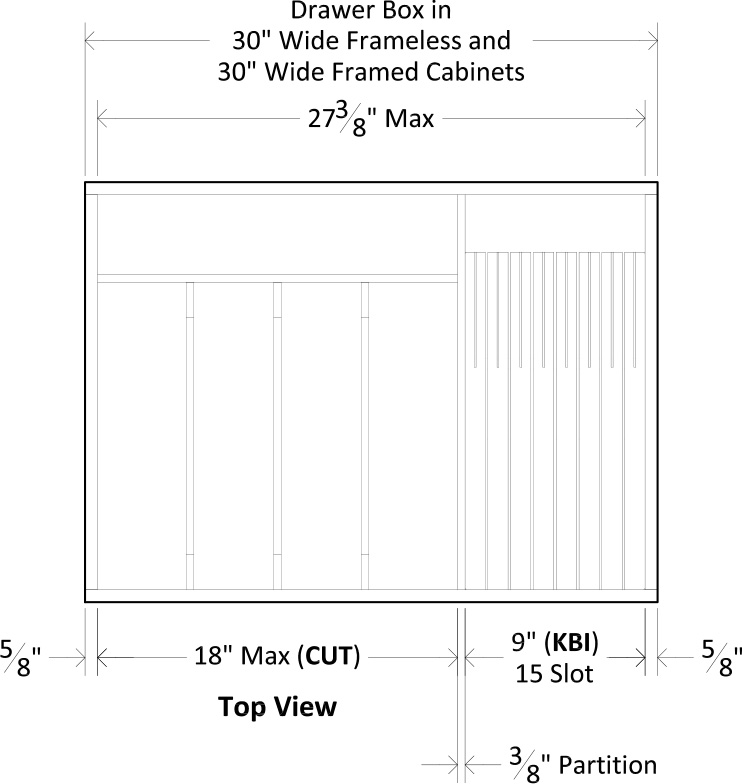

Specsheet Mod Topdrawer Cutlery Combo B 3

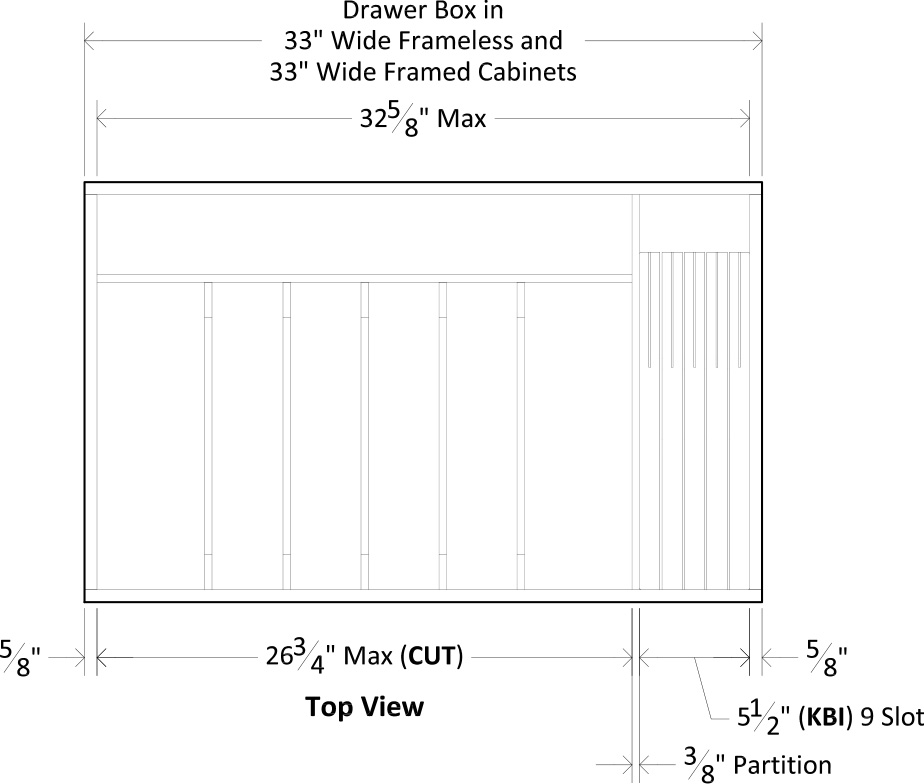

Specsheet Mod Topdrawer Cutlery Combo B 4
Specsheet Mod Topdrawer Cutlery Combo B 5
Specsheet Mod Topdrawer Cutlery Combo B 6

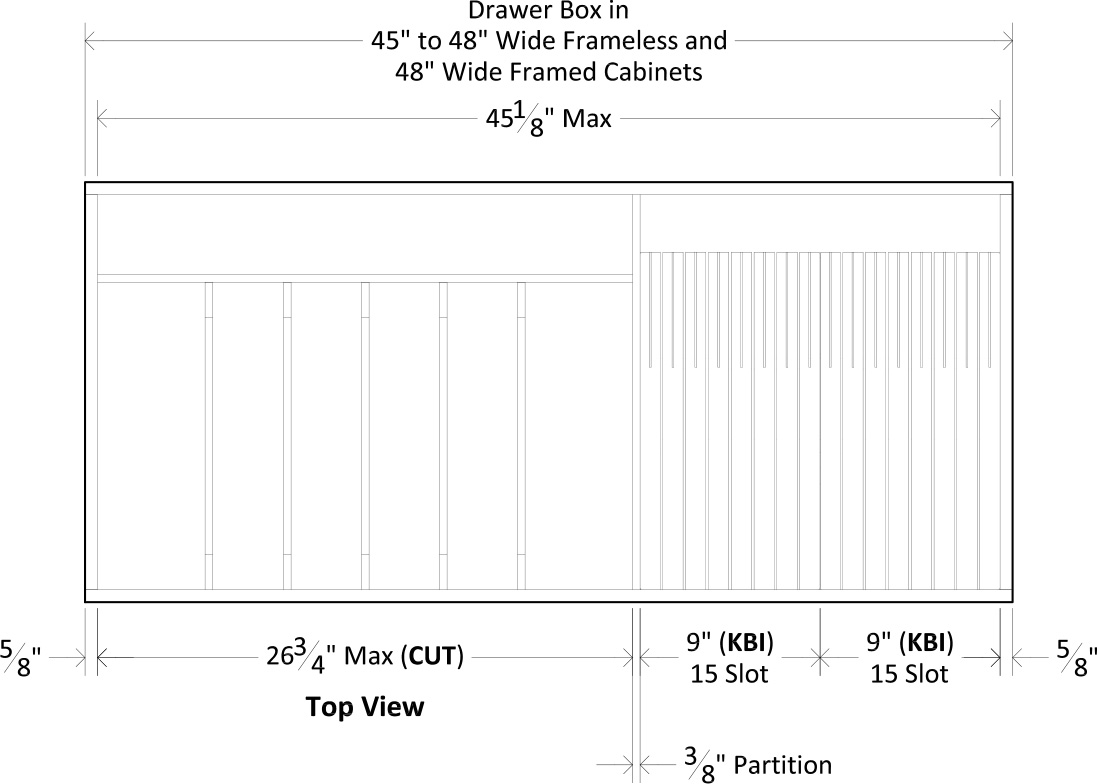

Specsheet Mod Topdrawer Cutlery Combo B 7

Design Notes

  • Cutlery Combo B - CUT | KBI Inserts (CCB) is Available in Base Cabinet Top Drawers
  • Material: Natural Maple
  • 3/8" Thick Partition Between the CUT and KBI is Included with the KBI from the Supplier
  • Cut Down Logic: Cutlery Utensil Tray Inserts (CUT) are Ordered in Two Widths - 18" | 26.75" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior (Left and Right Ends are to be Cut Down Equally - If Ends would be Less than 2" Wide, Cut One End Off and Trim the Other End to Fit)
↑ Return to Overview

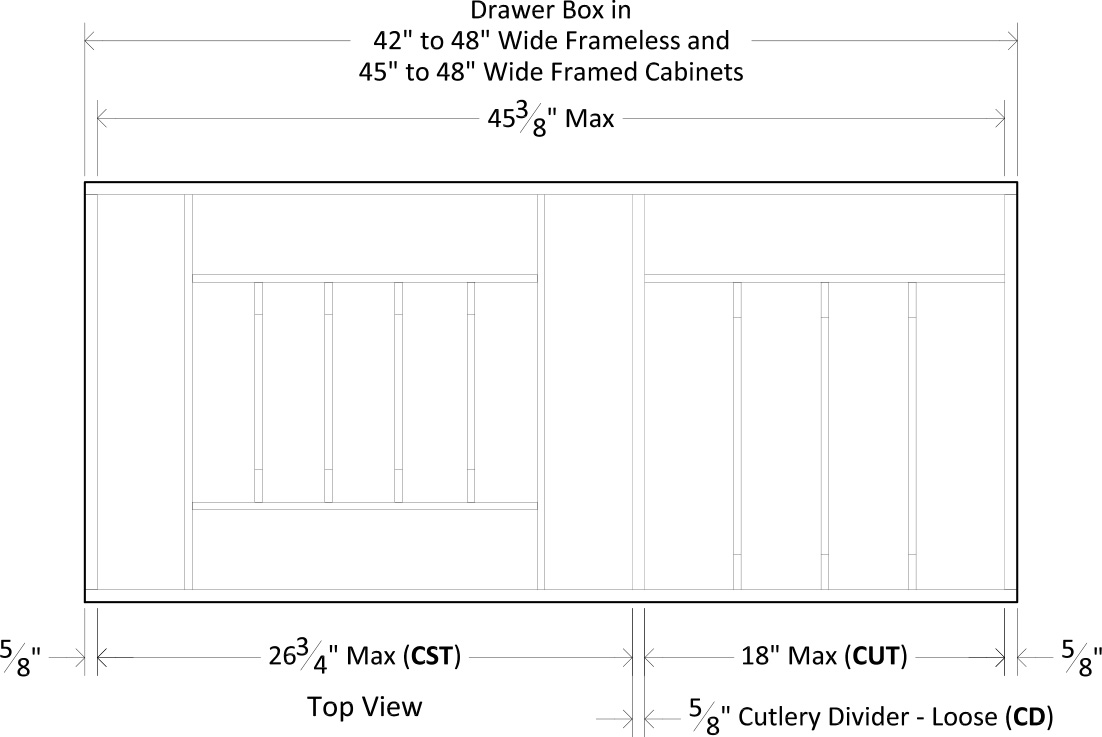

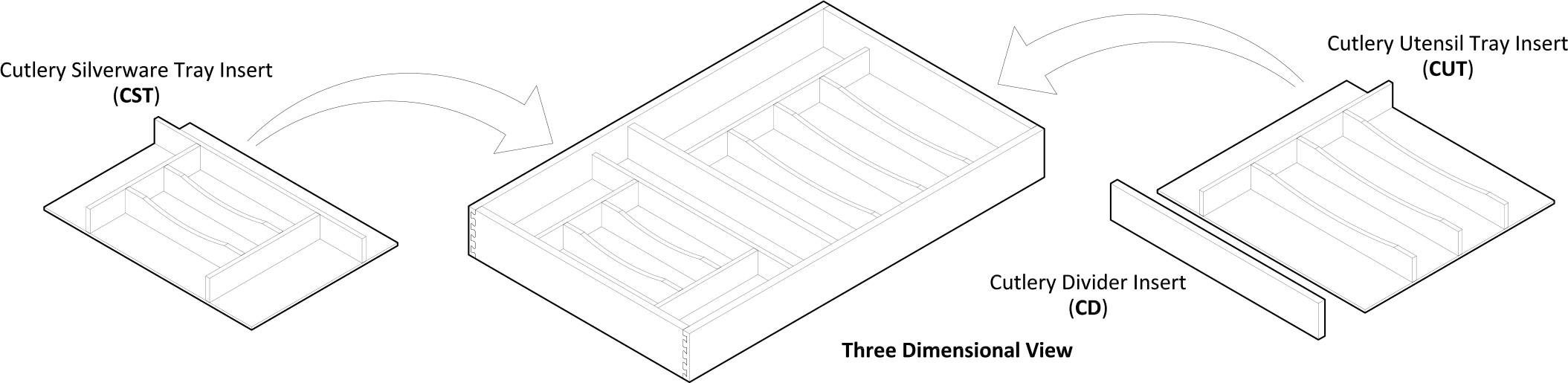

Cutlery Combo C - CST | CD | CUT Inserts (CCC)

Specsheet Mod Topdrawer Cutlery Combo C 1

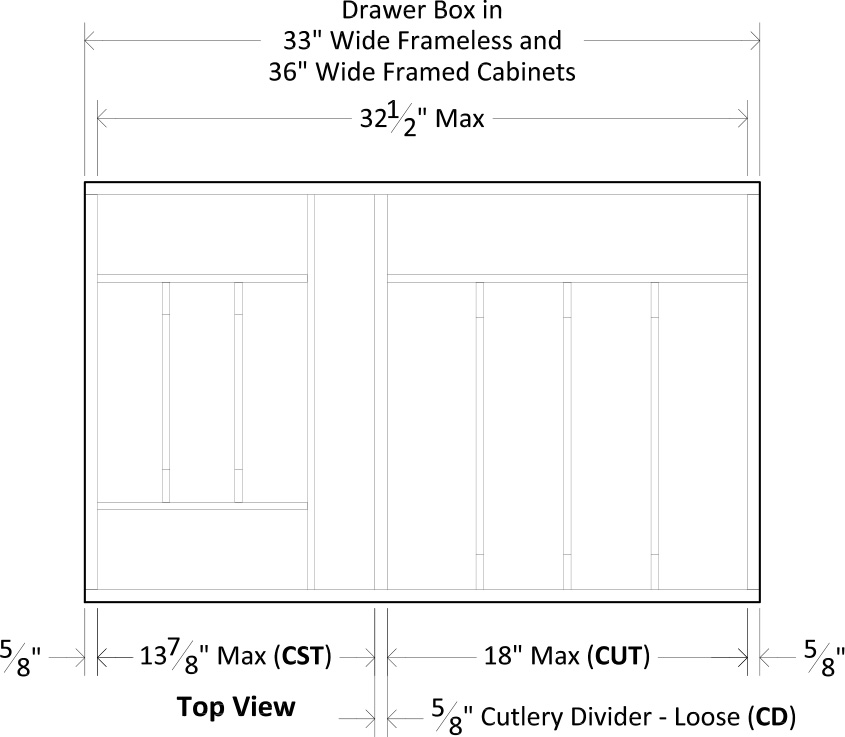

Specsheet Mod Topdrawer Cutlery Combo C 2

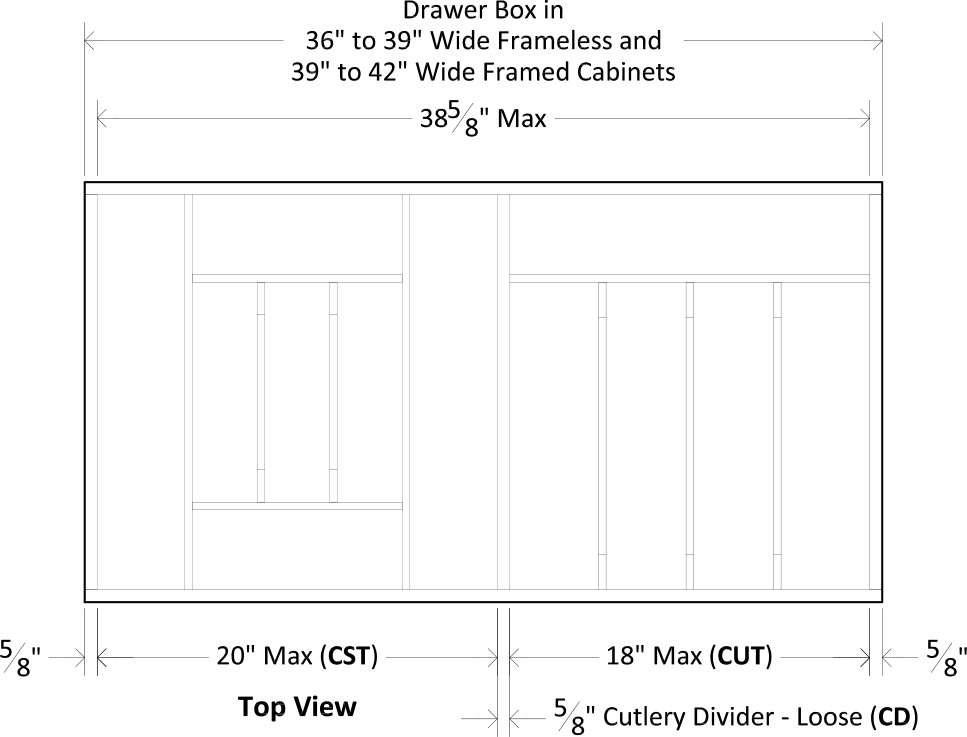

Specsheet Mod Topdrawer Cutlery Combo C 3
Specsheet Mod Topdrawer Cutlery Combo C 4

Design Notes

  • Cutlery Combo C - CST | CD | CUT Inserts (CCC) is Available in Base Cabinet Top Drawers
  • Material: Natural Maple
  • 5/8" Thick Cutlery Divider - Loose (CD) Between the CST and CUT is Included
  • Cut Down Logic: Cutlery Silverware Tray Inserts (CST) are Ordered in Three Widths - 13.875" | 20" | 26.75" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior (Left and Right Ends are to be Cut Down Equally - If Ends would be Less than 2" Wide, Cut One End Off and Trim the Other End to Fit)
↑ Return to Overview

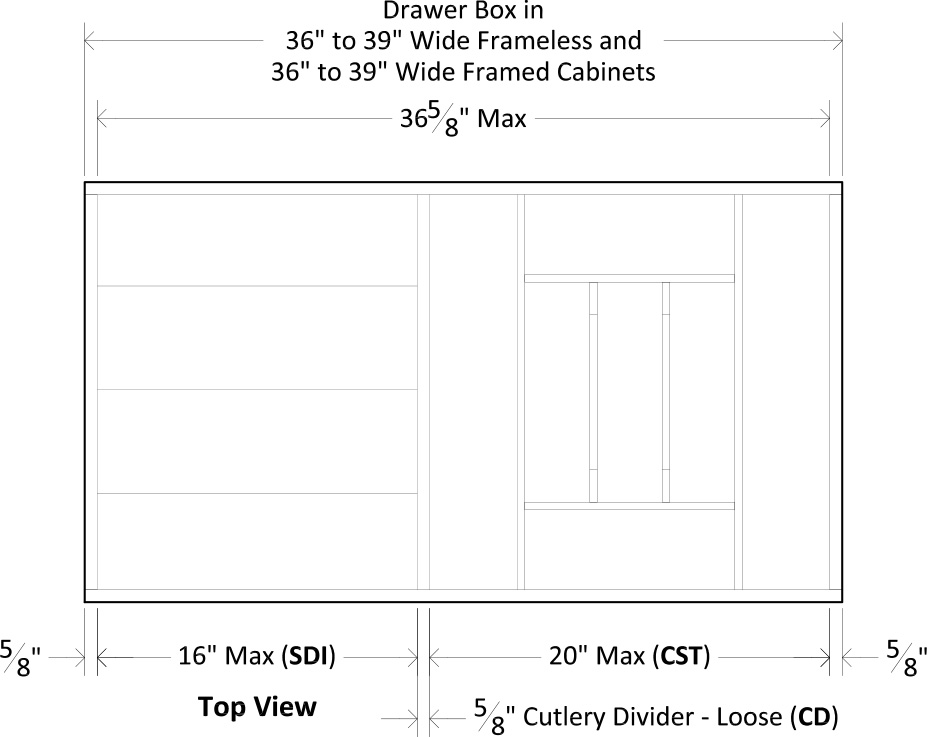

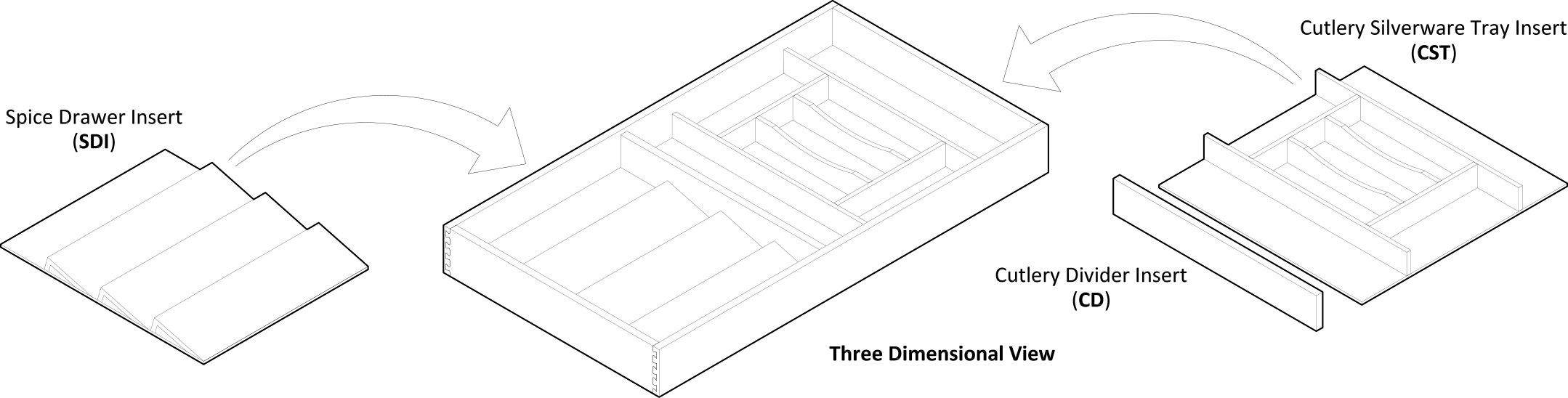

Cutlery Combo D - SDI | CD | CST Inserts (CCD)

Specsheet Mod Topdrawer Cutlery Combo D 1

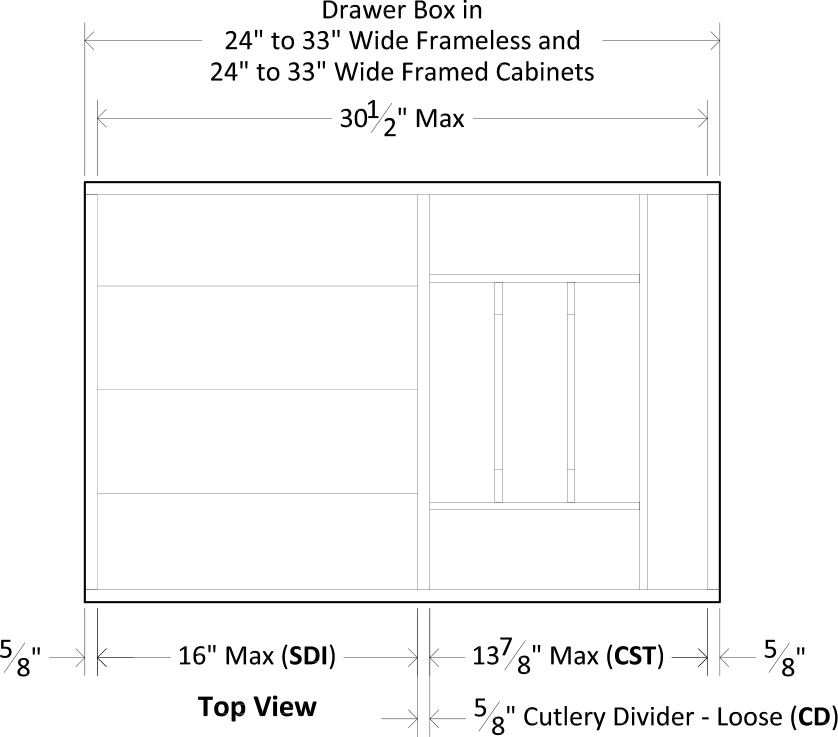

Specsheet Mod Topdrawer Cutlery Combo D 2
Specsheet Mod Topdrawer Cutlery Combo D 3
Specsheet Mod Topdrawer Cutlery Combo D 4
Specsheet Mod Topdrawer Cutlery Combo D 5

Design Notes

  • Cutlery Combo D - SDI | CD | CST Inserts (CCD) is Available in Base Cabinet Top Drawers
  • Material: Natural Maple
  • 5/8" Thick Cutlery Divider - Loose (CD) Between the SDI and CST is Included
  • Cut Down Logic: Spice Drawer Inserts (SDI) are Ordered in Two Widths - 16" | 22" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior
↑ Return to Overview

Cutlery Combo E - SDI | CD | CUT Inserts (CCE)

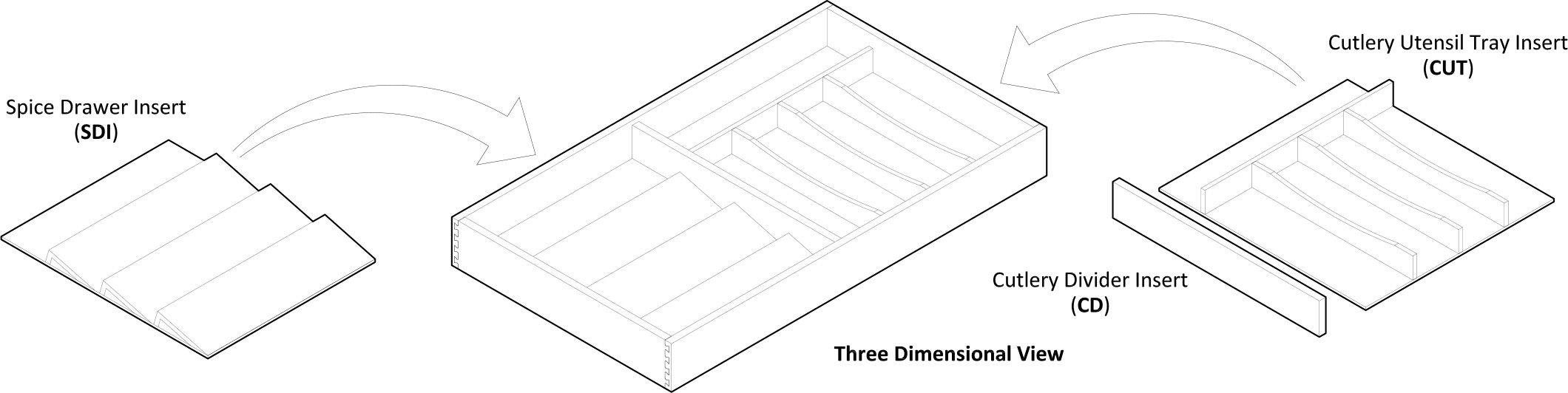

Specsheet Mod Topdrawer Cutlery Combo E 1

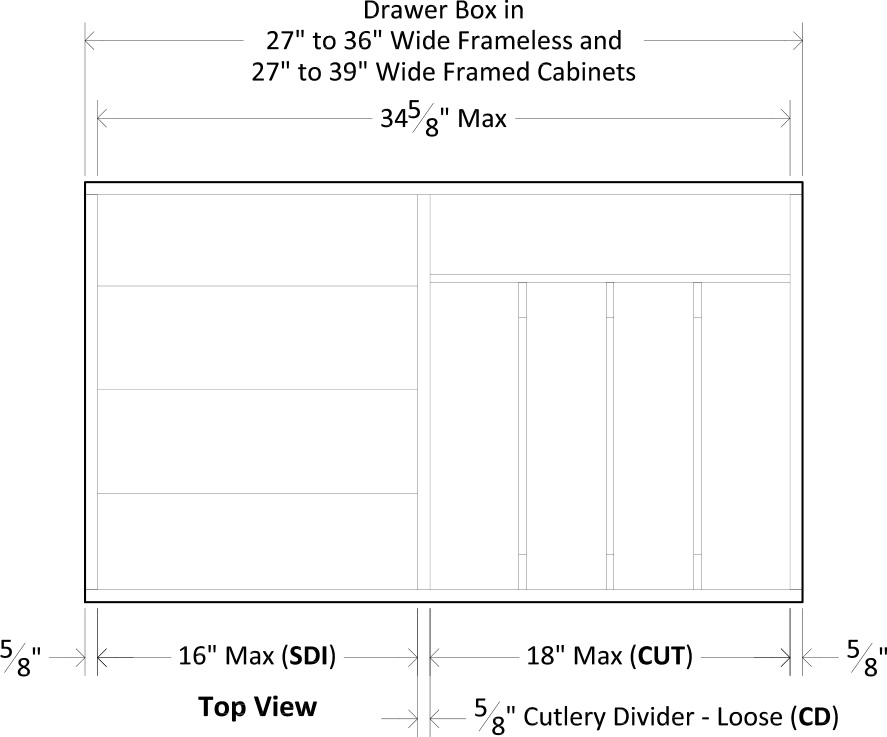

Specsheet Mod Topdrawer Cutlery Combo E 2

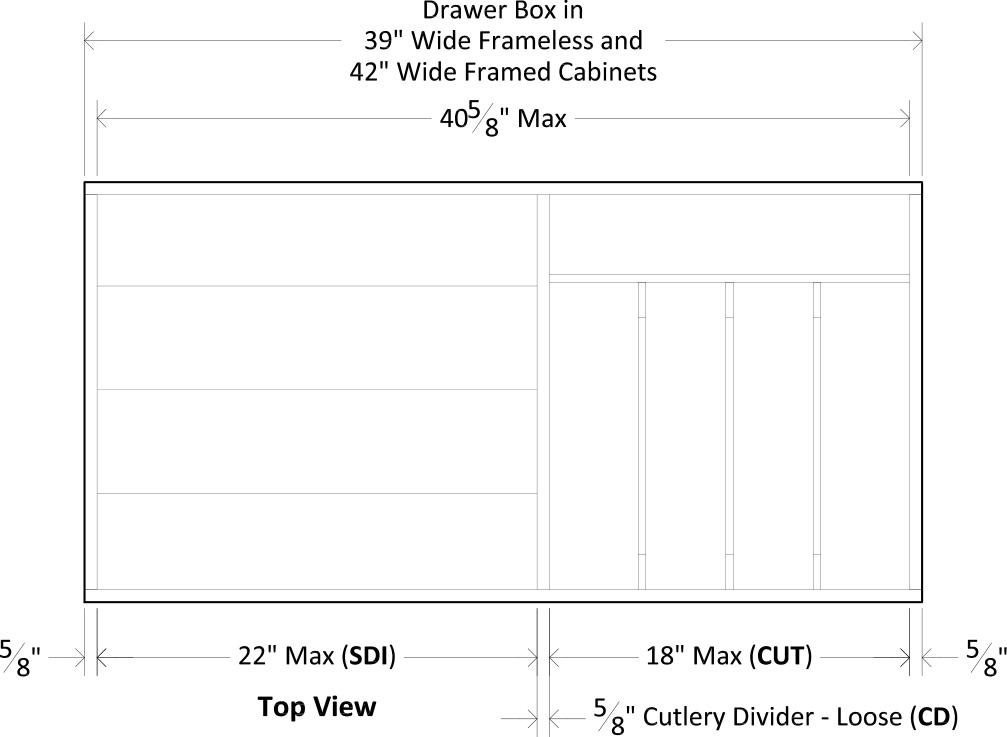

Specsheet Mod Topdrawer Cutlery Combo E 3

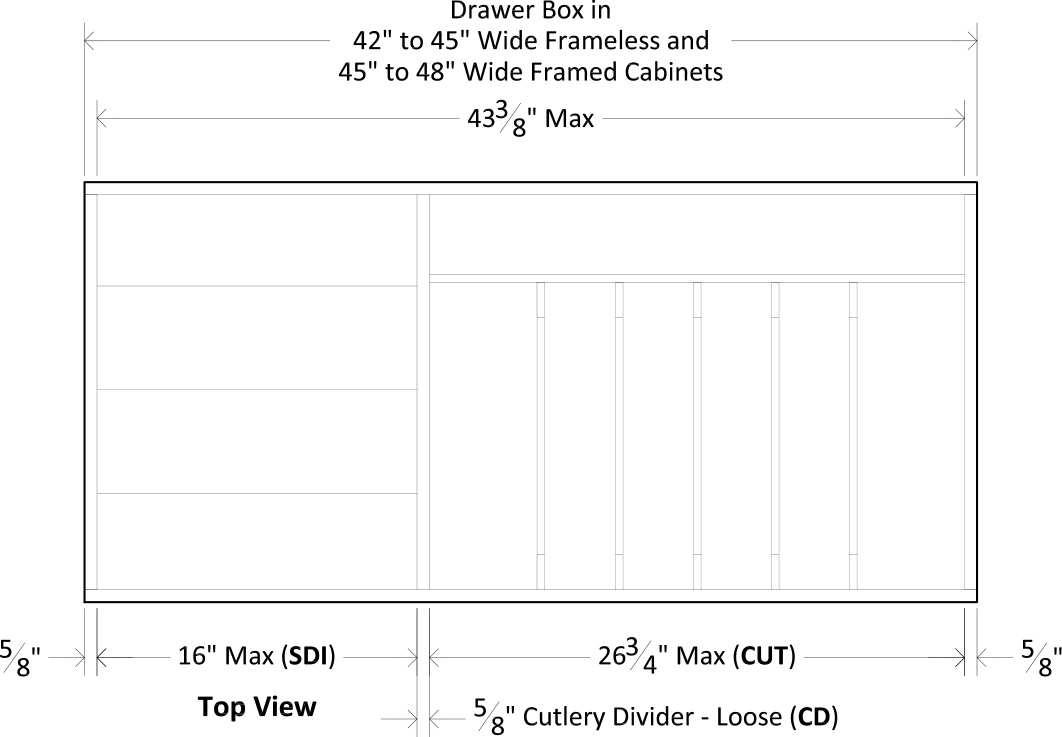

Specsheet Mod Topdrawer Cutlery Combo E 4

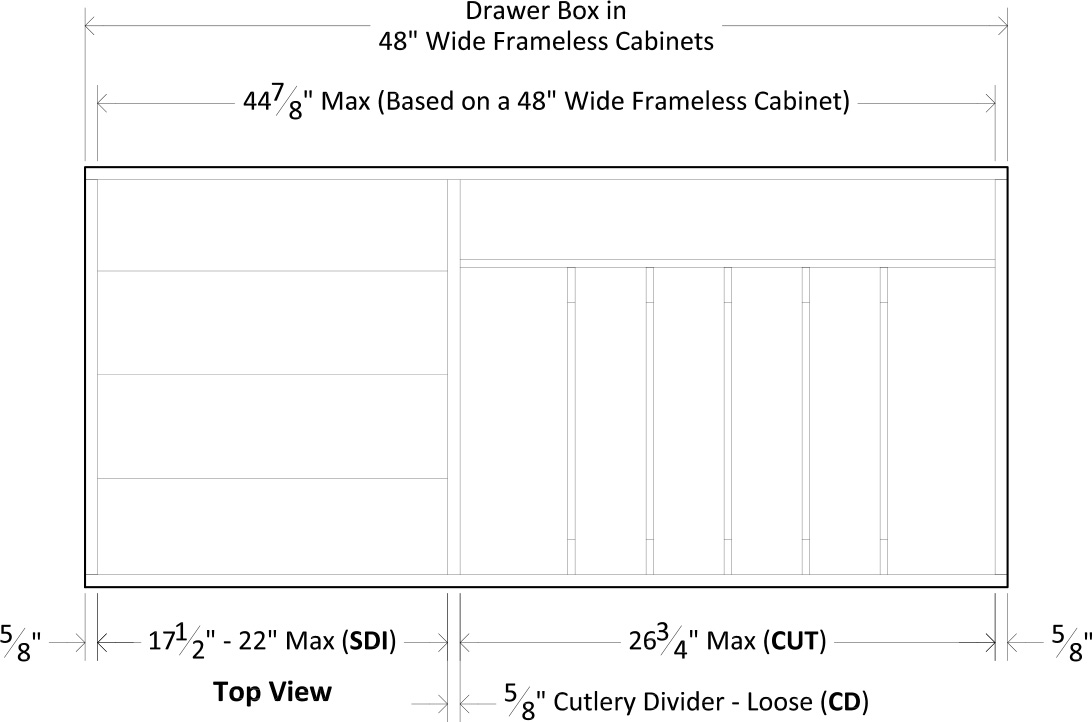

Specsheet Mod Topdrawer Cutlery Combo E 5

Design Notes

  • Cutlery Combo E - SDI | CD | CUT Inserts (CCE) is Available in Base Cabinet Top Drawers
  • Material: Natural Maple
  • 5/8" Thick Cutlery Divider - Loose (CD) Between the SDI and CUT is Included
  • Cut Down Logic: Spice Drawer Inserts (SDI) are Ordered in Two Widths - 16" | 22" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior
↑ Return to Overview

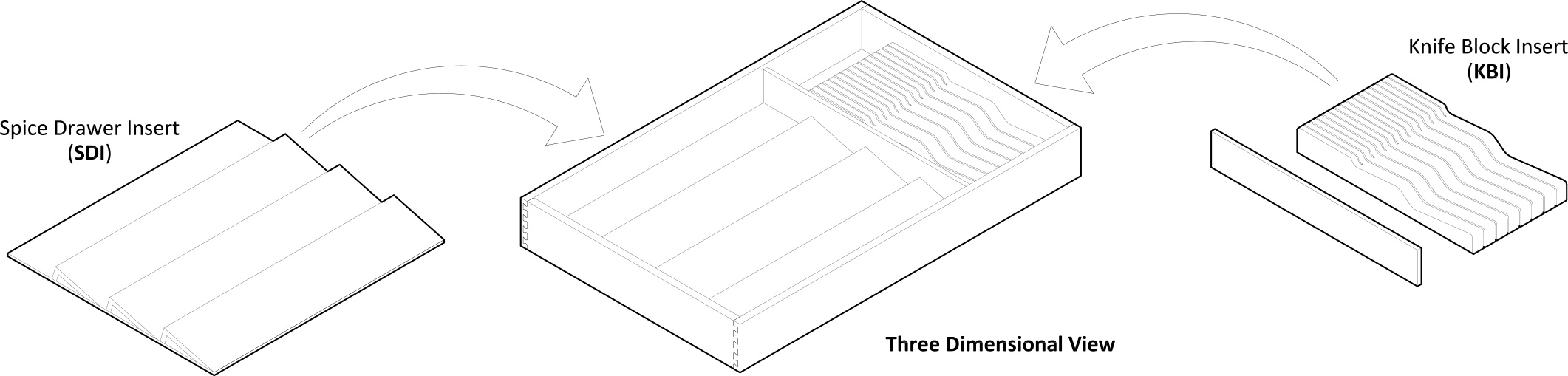

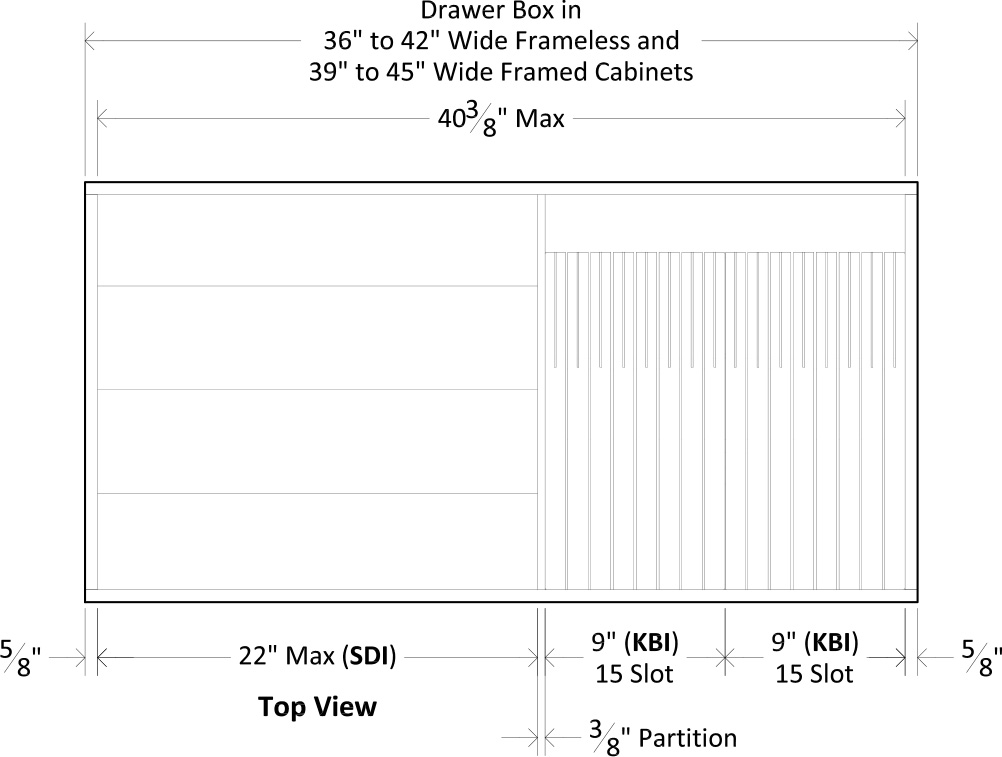

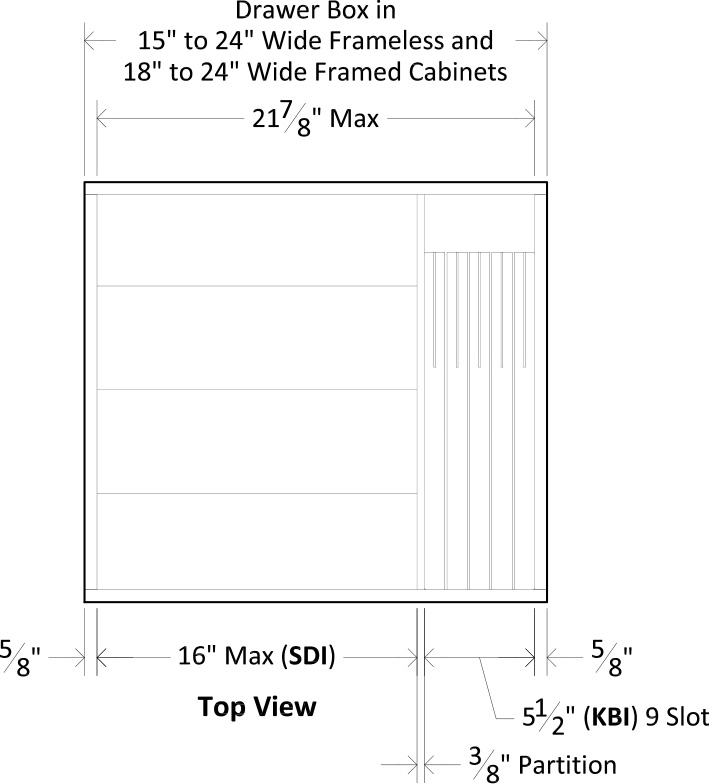

Cutlery Combo F - SDI | KBI Inserts (CCF)

Specsheet Mod Topdrawer Cutlery Combo F 1
Specsheet Mod Topdrawer Cutlery Combo F 2

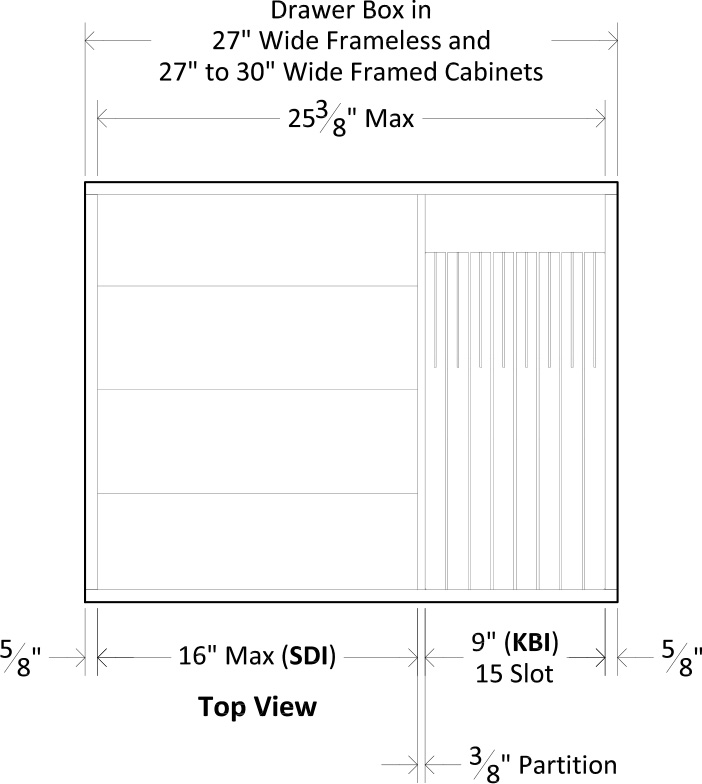

Specsheet Mod Topdrawer Cutlery Combo F 3

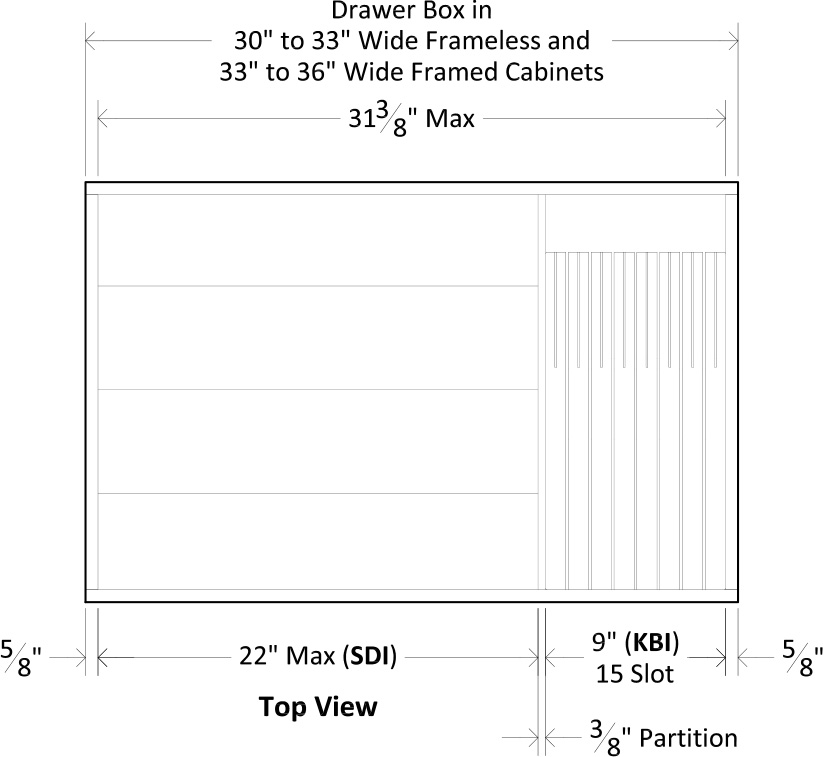

Specsheet Mod Topdrawer Cutlery Combo F 4
Specsheet Mod Topdrawer Cutlery Combo F 5

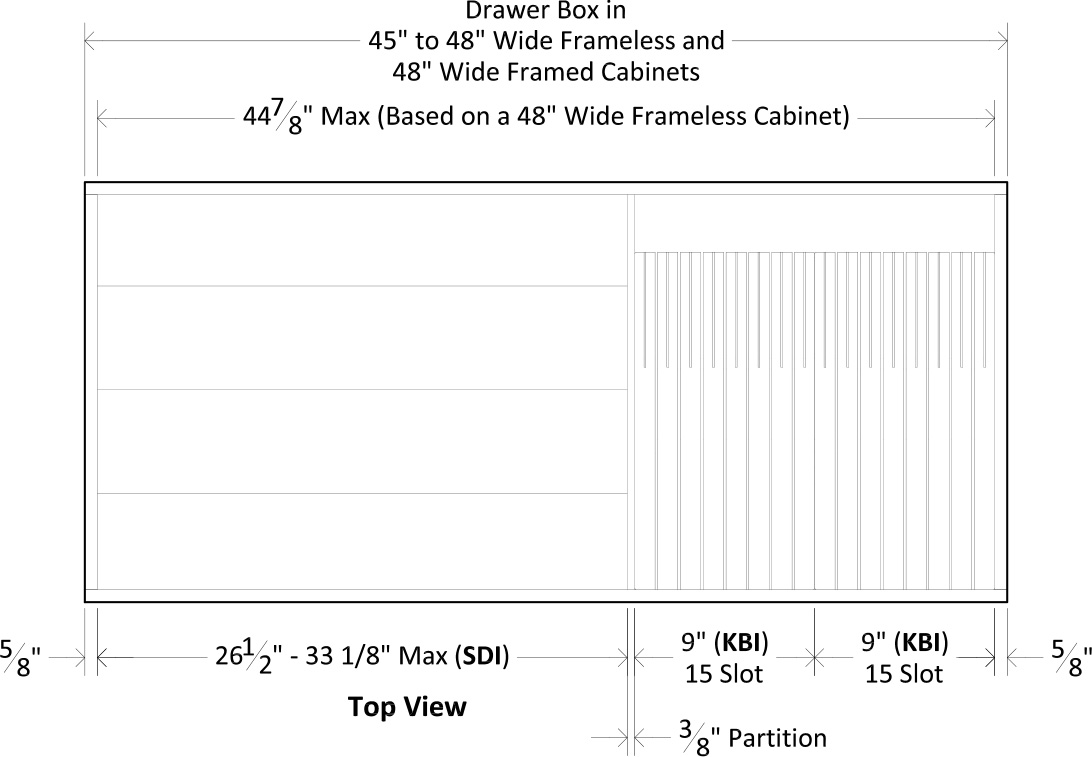

Specsheet Mod Topdrawer Cutlery Combo F 6

Design Notes

  • Cutlery Combo F - SDI | KBI Inserts (CCF) is Available in Base Cabinet Top Drawers
  • Material: Natural Maple
  • 3/8" Thick Partition Between the SDI and KBI is Included with the KBI from the Supplier
  • Cut Down Logic: Spice Drawer Inserts (SDI) are Ordered in Three Widths - 16" | 22" | 33.125" - Narrowest Possible is Used and Cut to Fit Drawer Box Interior
↑ Return to Overview
