Tip-Out Tray - One False Front Spec (TOT_1)

One Door Cabinets

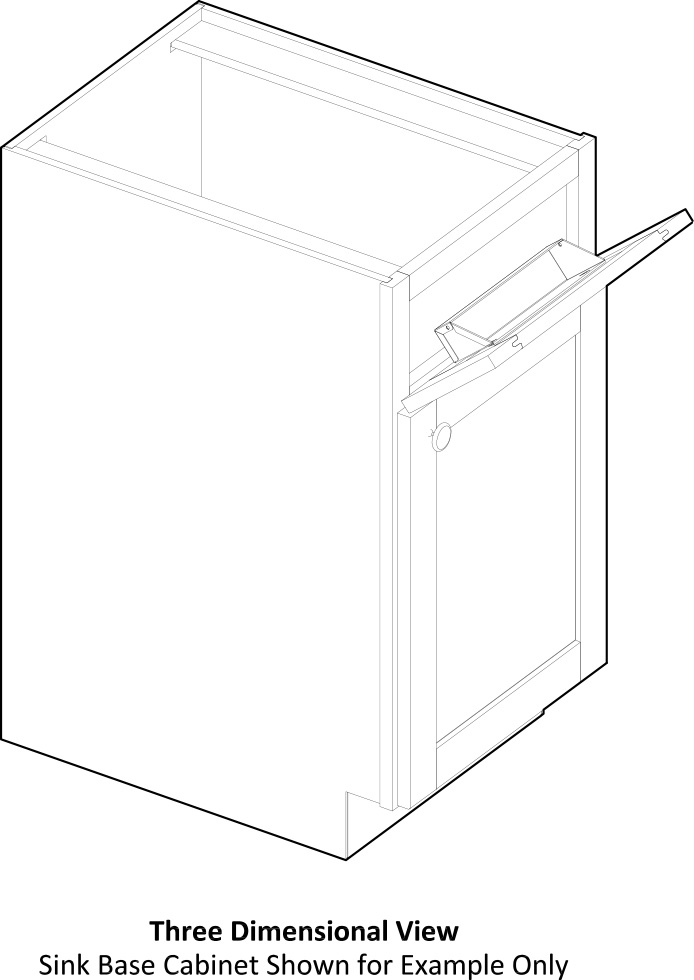

Specsheet Mod Door Drawer Tip Out One False 1

Cabinet Width	Tip-Out Tray Width - Framed \| Frameless
18"	10" \| 13"
21"	13" \| 16"
24"	16" \| 19"

Design Notes

Adds a Stainless Steel Tip-Out Tray and 50° Soft-Close Hinges to One False Front

Two Door Cabinets

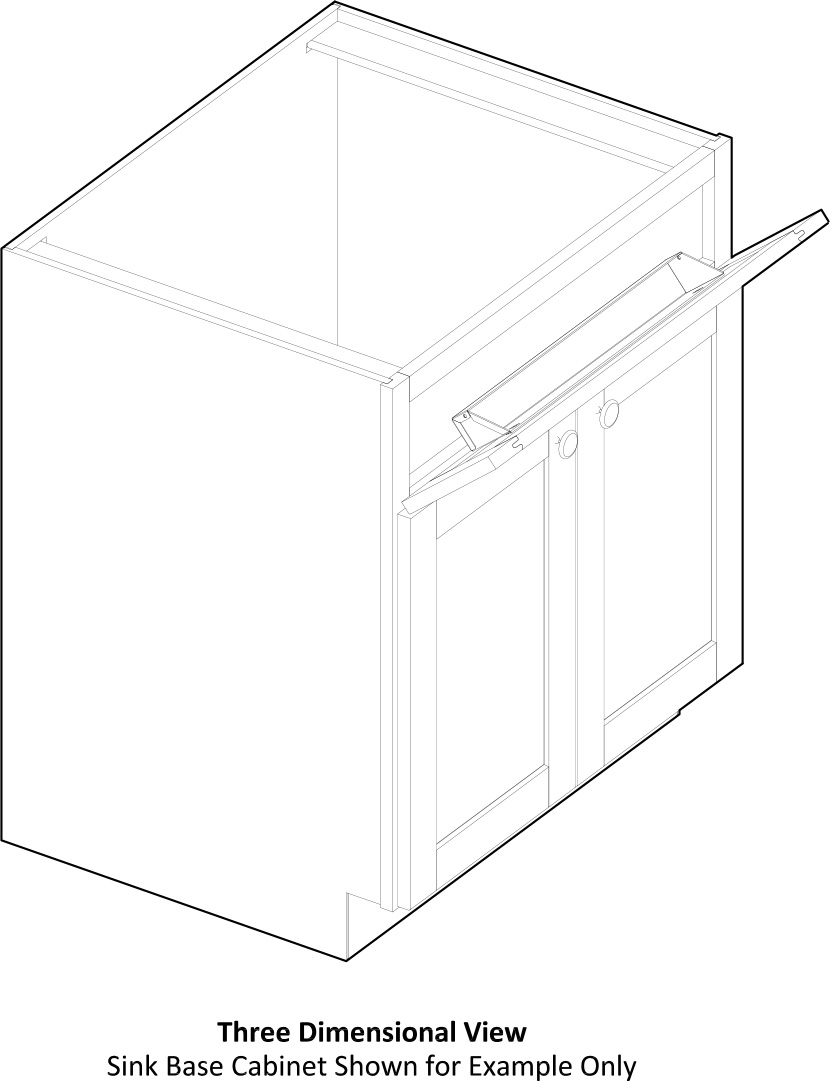

Specsheet Mod Door Drawer Tip Out One False 2

Cabinet Width	Tip-Out Tray Width - Framed \| Frameless
24"	16" \| 19"
27"	19" \| 19"
30"	19" \| 25"
33"	25" \| 25"
36"	25" \| 25"

Design Notes

Adds a Stainless Steel Tip-Out Tray and 50° Soft-Close Hinges to One False Front
