Framed Wainscot Panel End Spec

Wall Cabinet

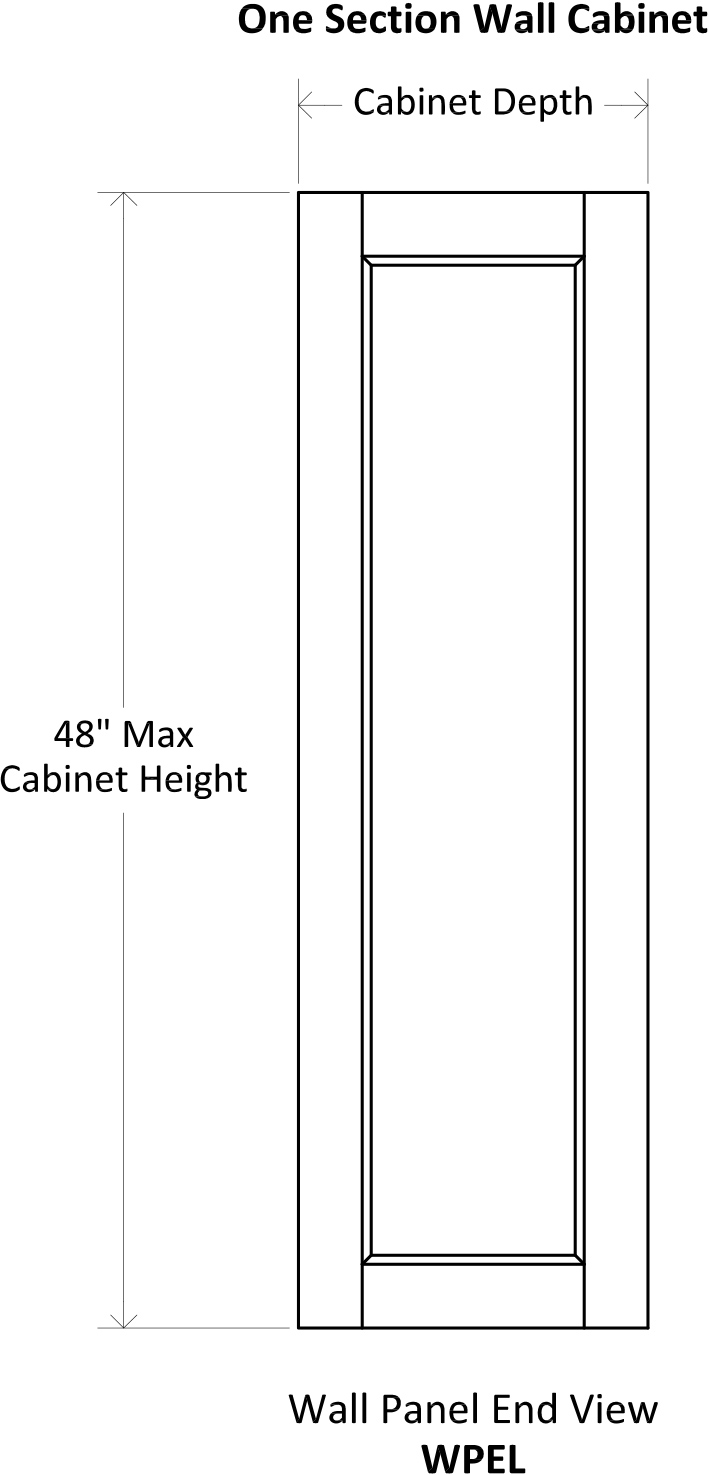

Specsheet Wainscot Panel End Wall 1

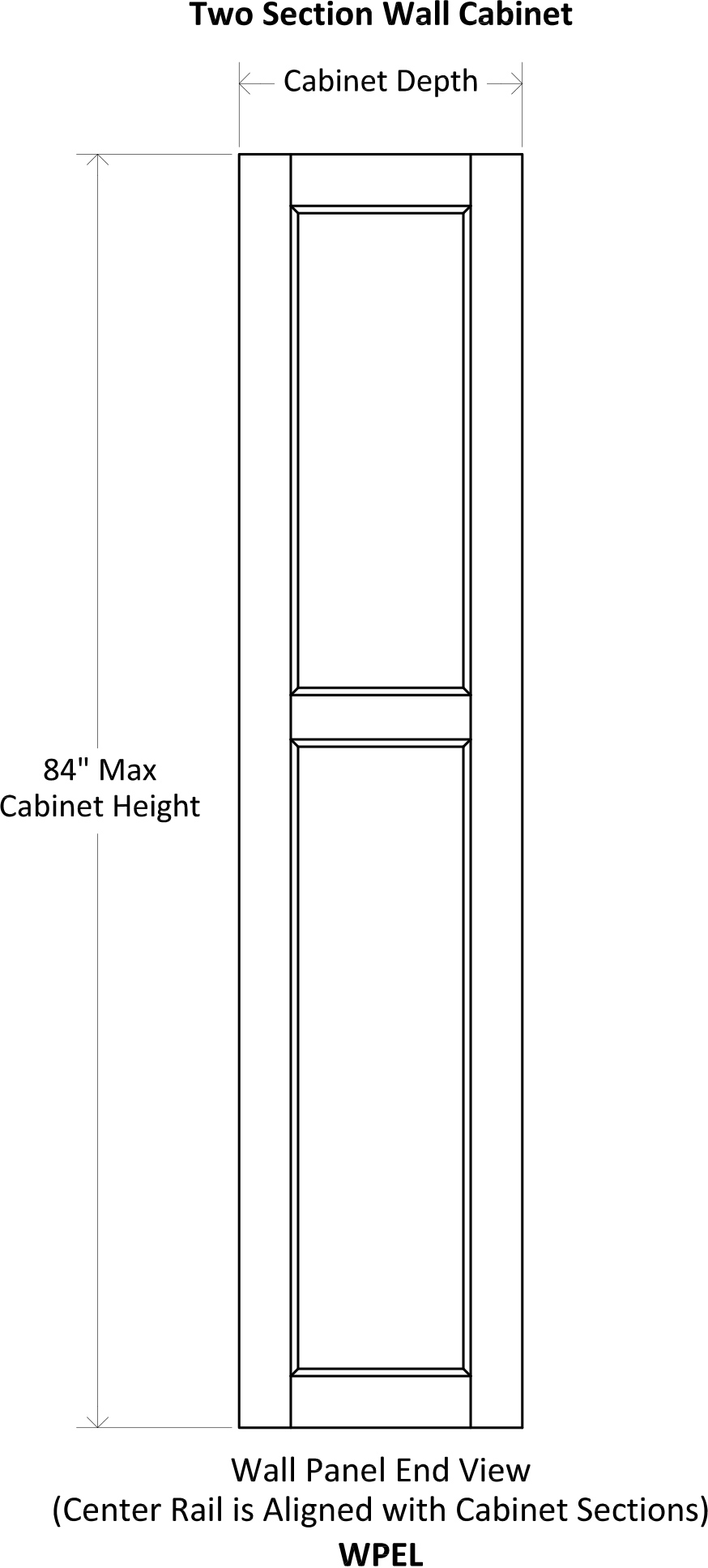

Specsheet Wainscot Panel End Wall 2

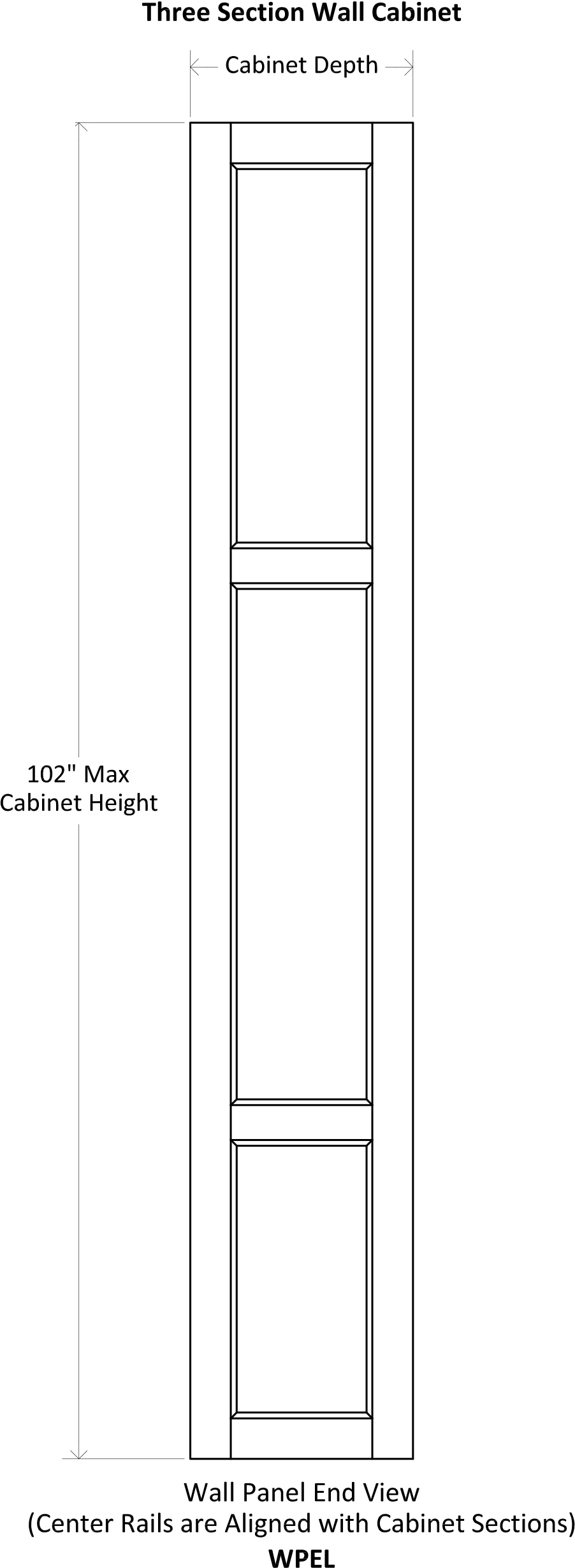

Specsheet Wainscot Panel End Wall 3

Design Notes

If a One Section Wall Cabinet is Increased Beyond 48" in Height, a Center Rail will be Added and Centered in the Wainscot Panel End

Base Cabinet

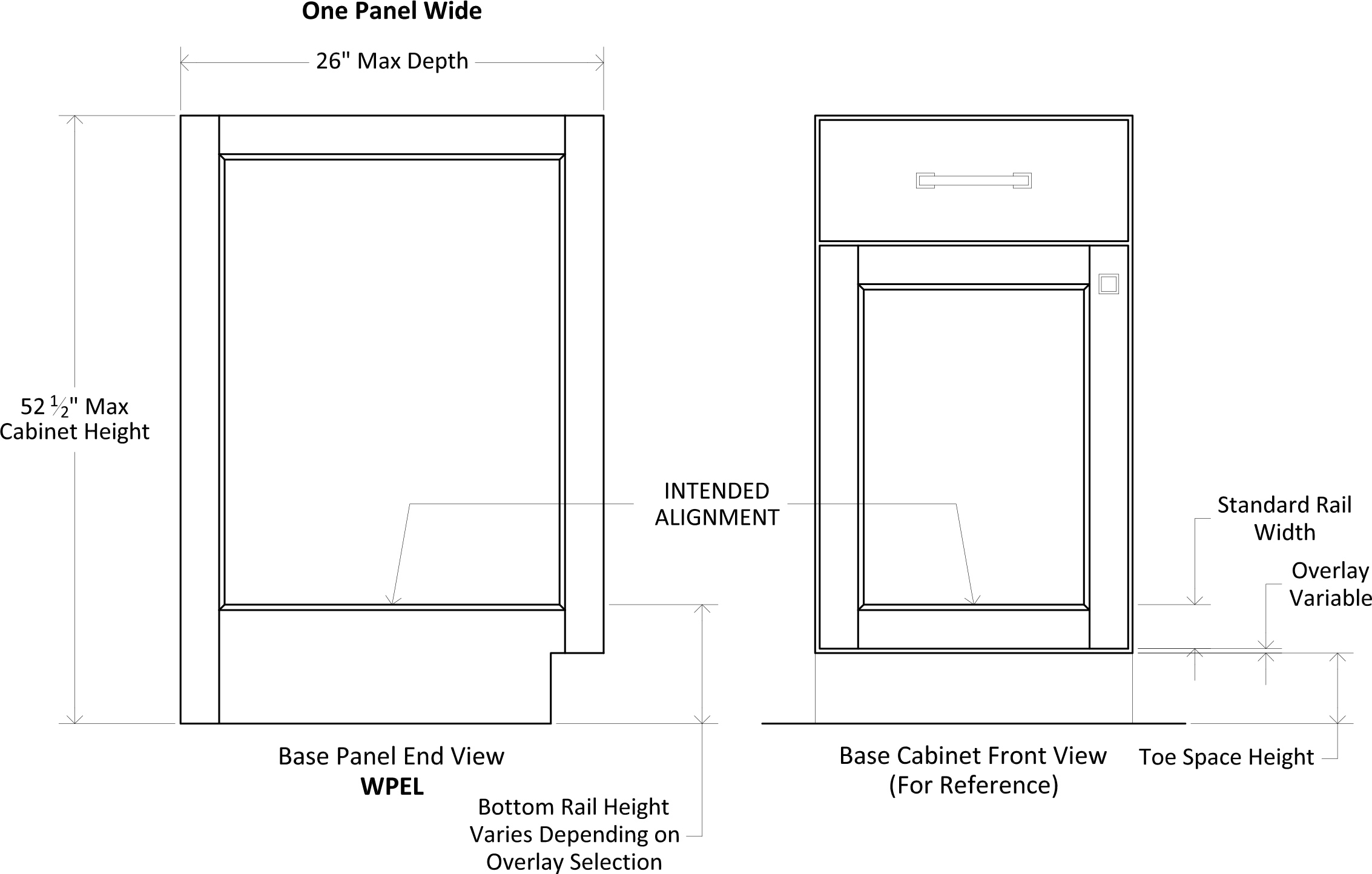

Specsheet Wainscot Panel End Base 1

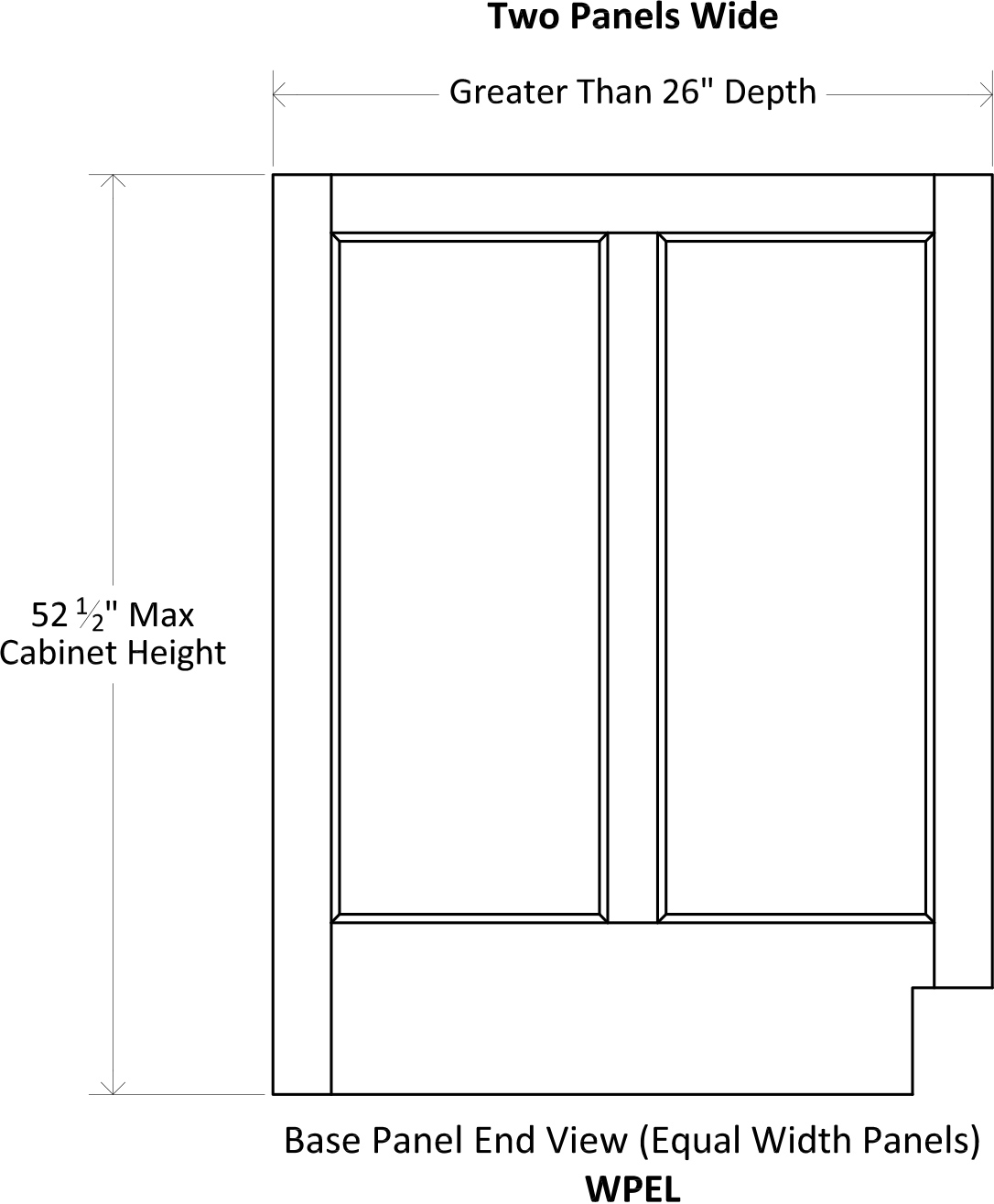

Specsheet Wainscot Panel End Base 2

Utility Cabinet

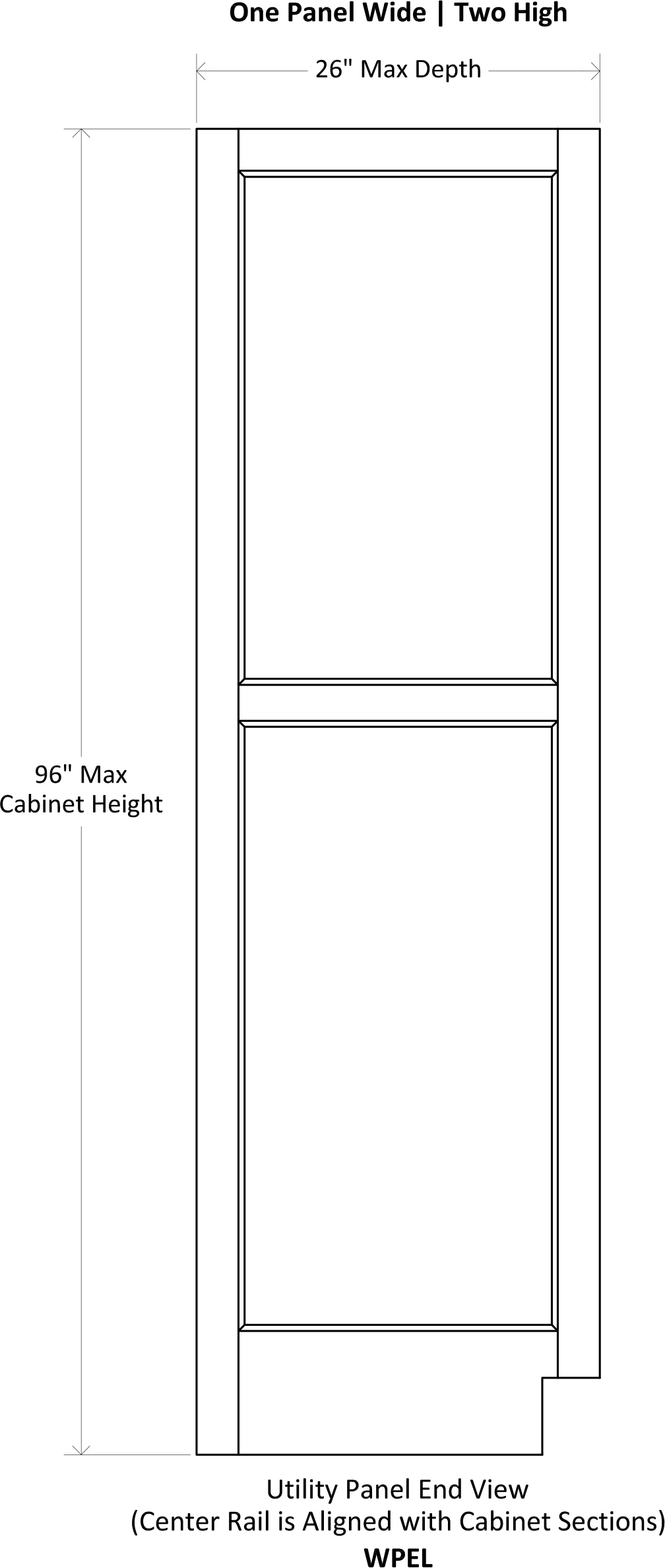

Specsheet Wainscot Panel End Utility 1

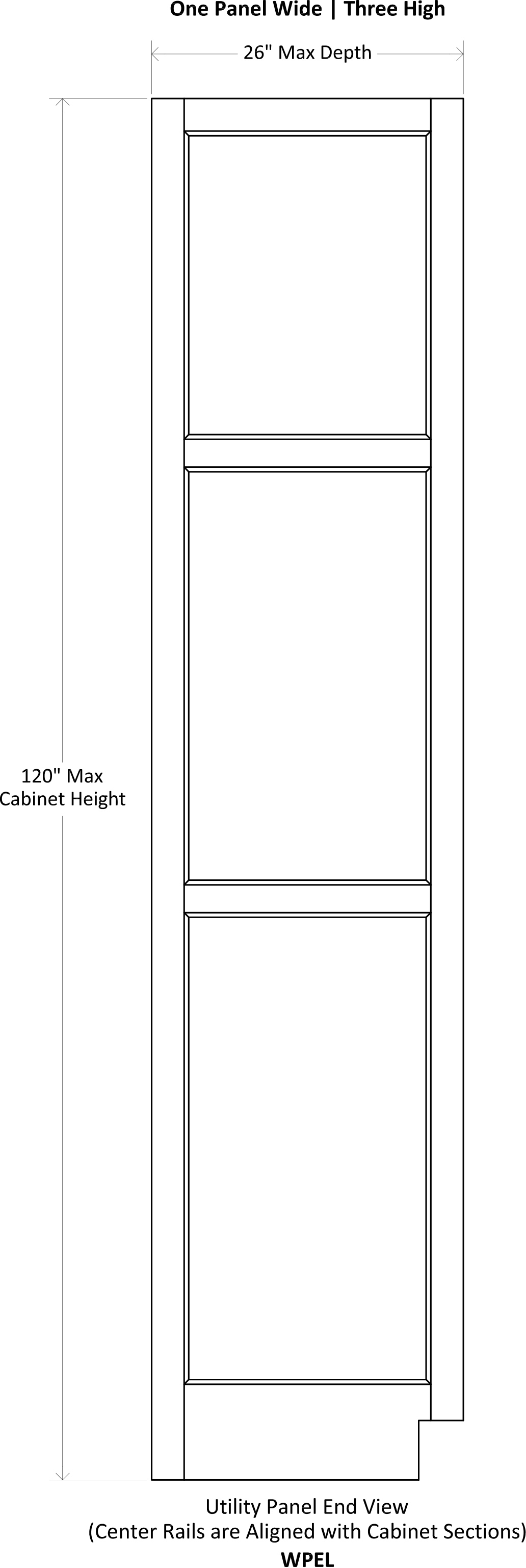

Specsheet Wainscot Panel End Utility 2

Modification Name	Mod Code
Wainscot Panel End Left	WPEL
Wainscot Panel End Right	WPER
