Framed Applied Panel End Spec

Full Overlay

Wall Cabinet

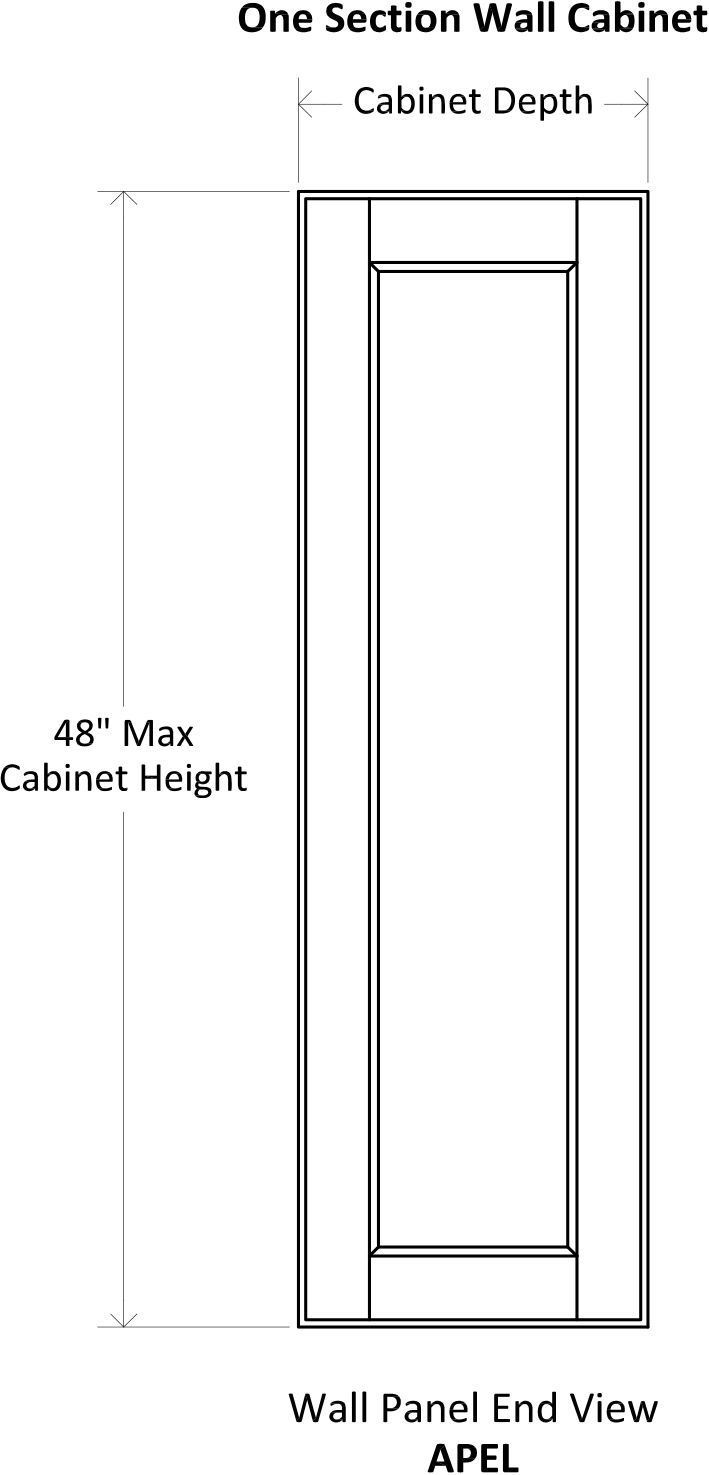

Specsheet Applied Panel End Framed Wall 1

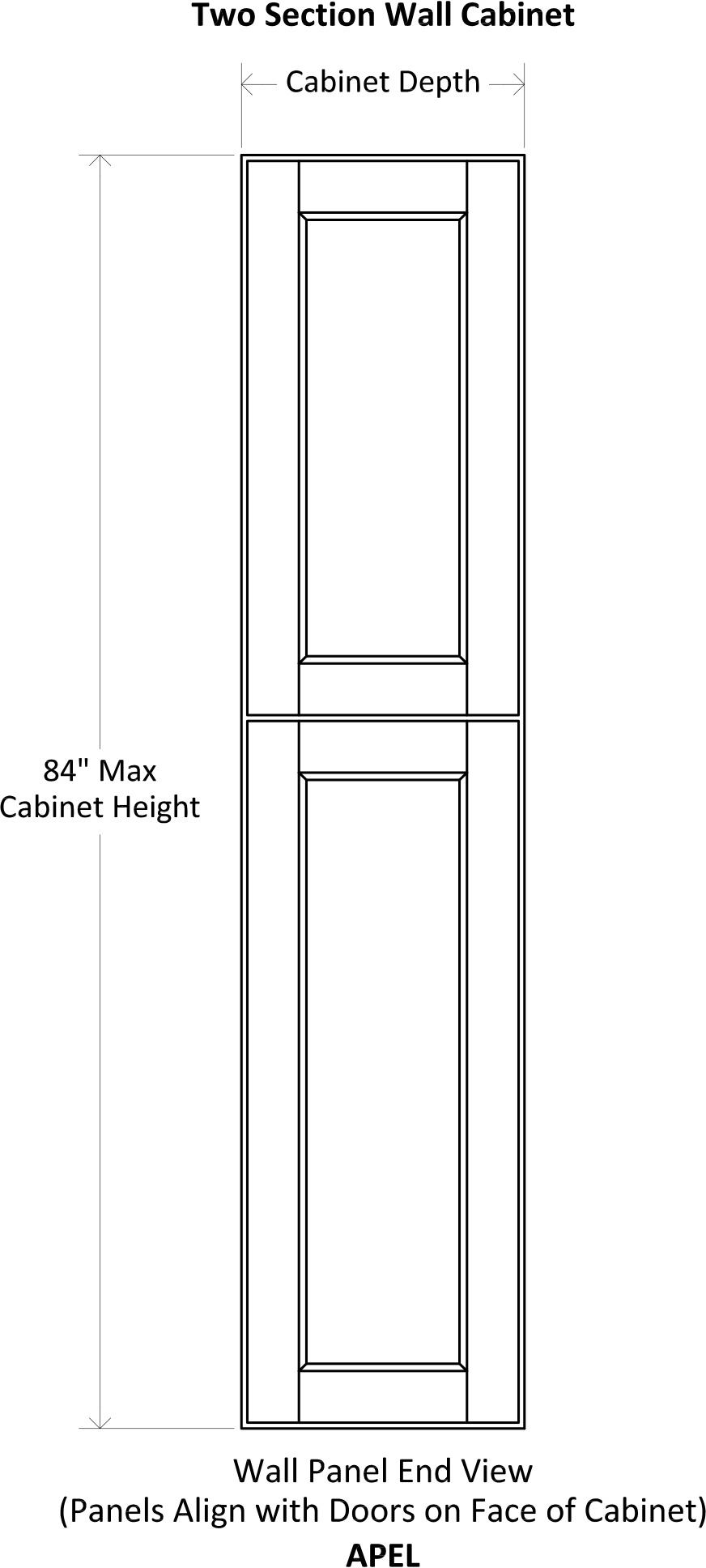

Specsheet Applied Panel End Framed Wall 2

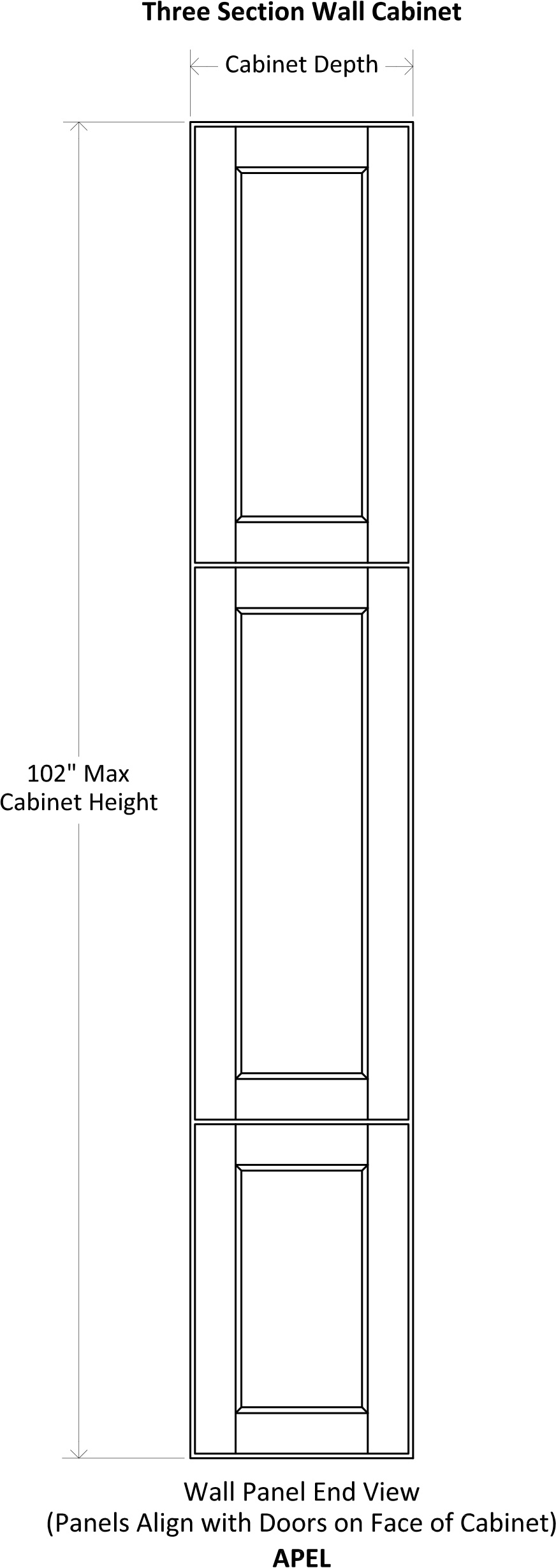

Specsheet Applied Panel End Framed Wall 3

Design Notes

If a One Section Wall Cabinet is Increased Beyond 48" in Height, a Center Rail will be Added and Centered in the Applied Panel End

Base Cabinet

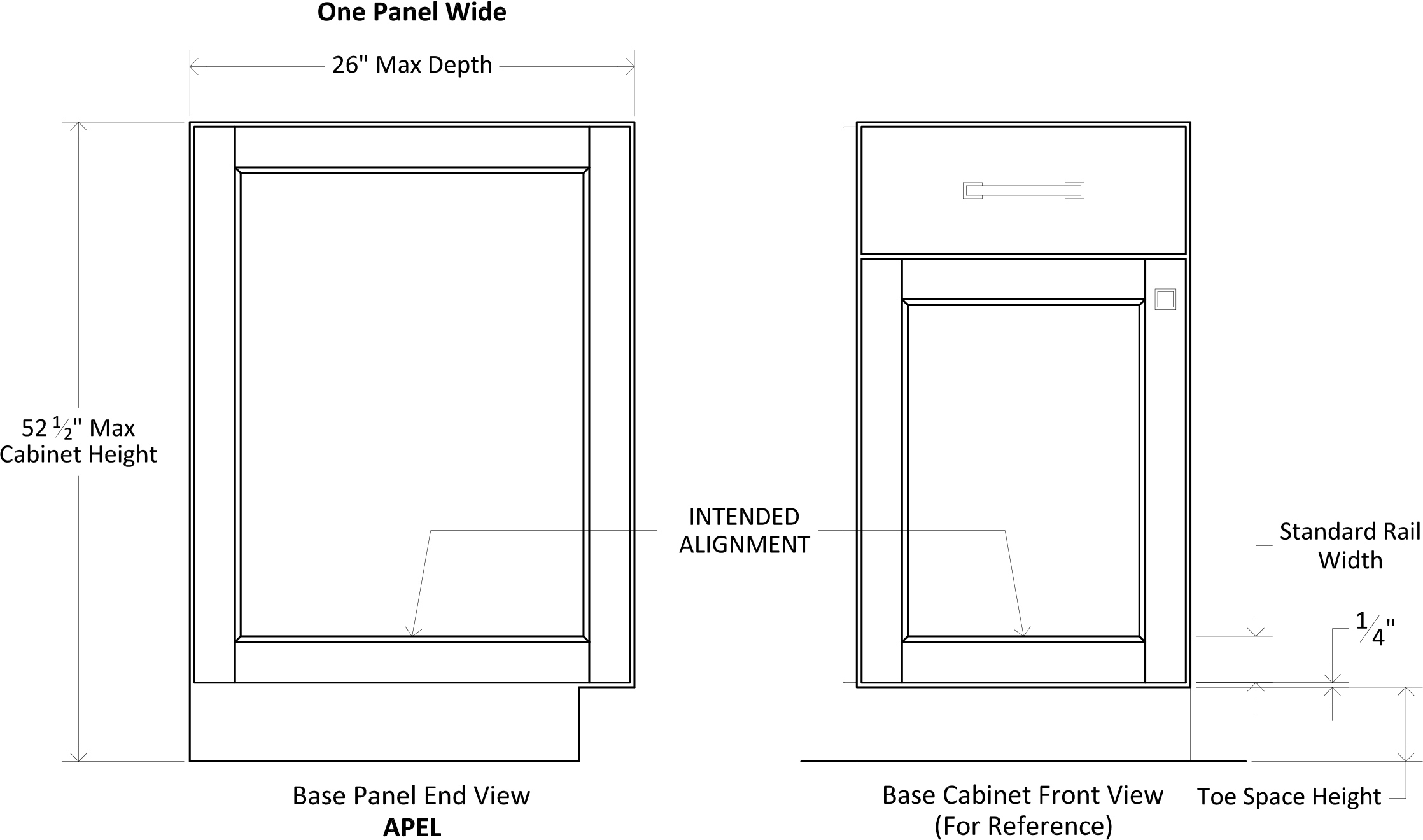

Specsheet Applied Panel End Framed Base 1

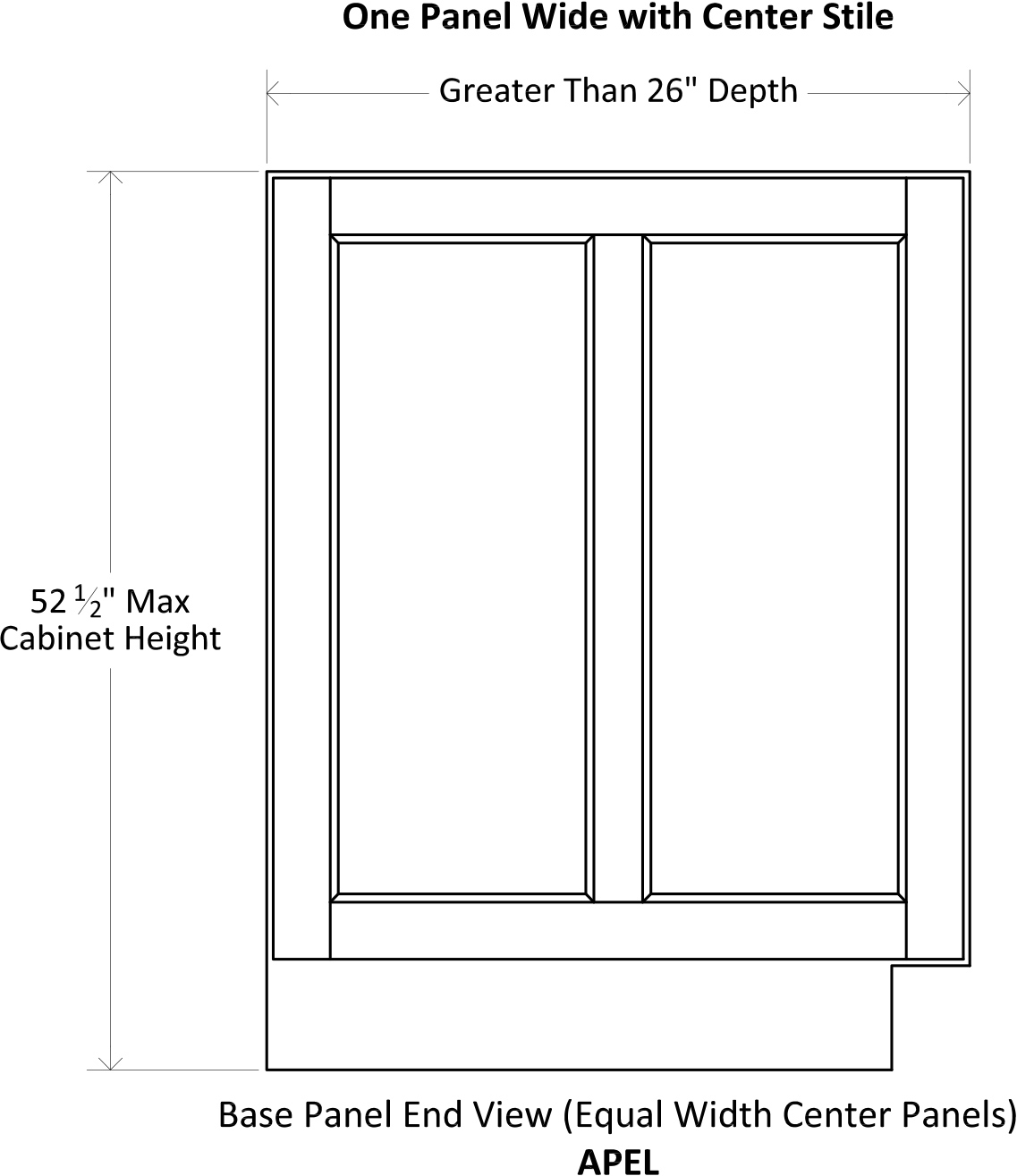

Specsheet Applied Panel End Framed Base 2

Utility Cabinet

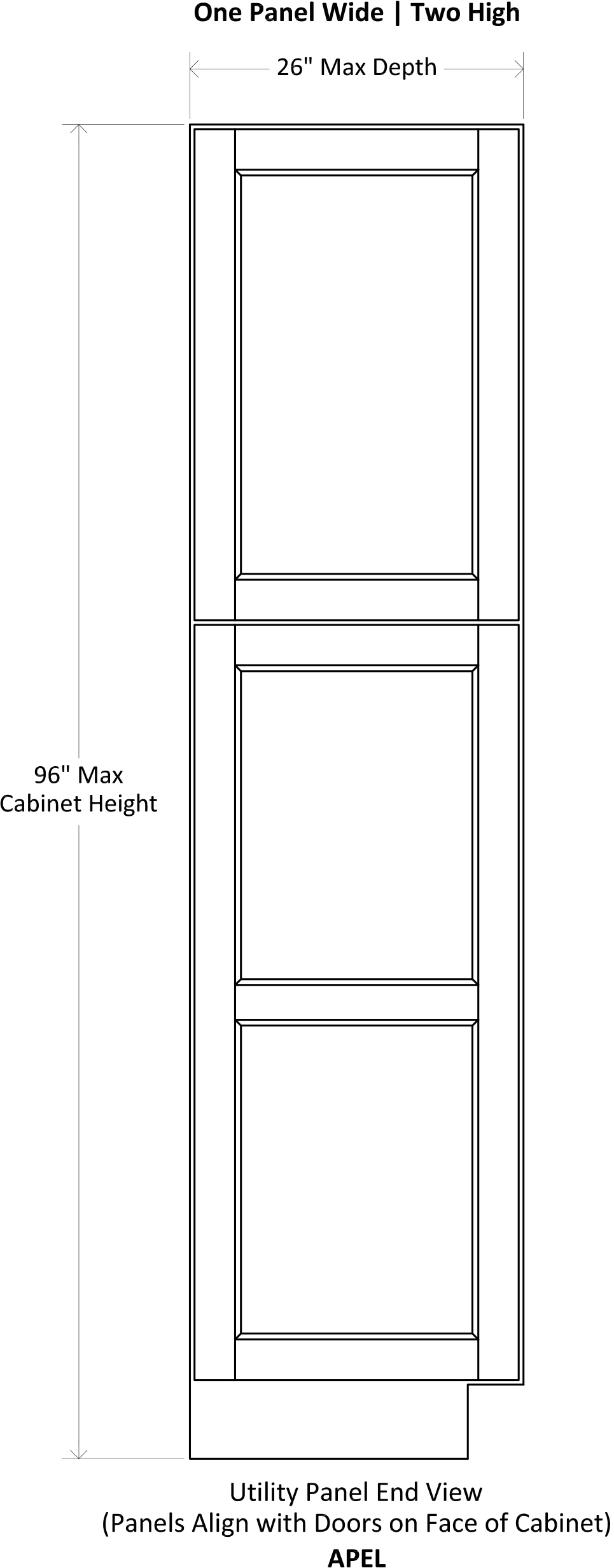

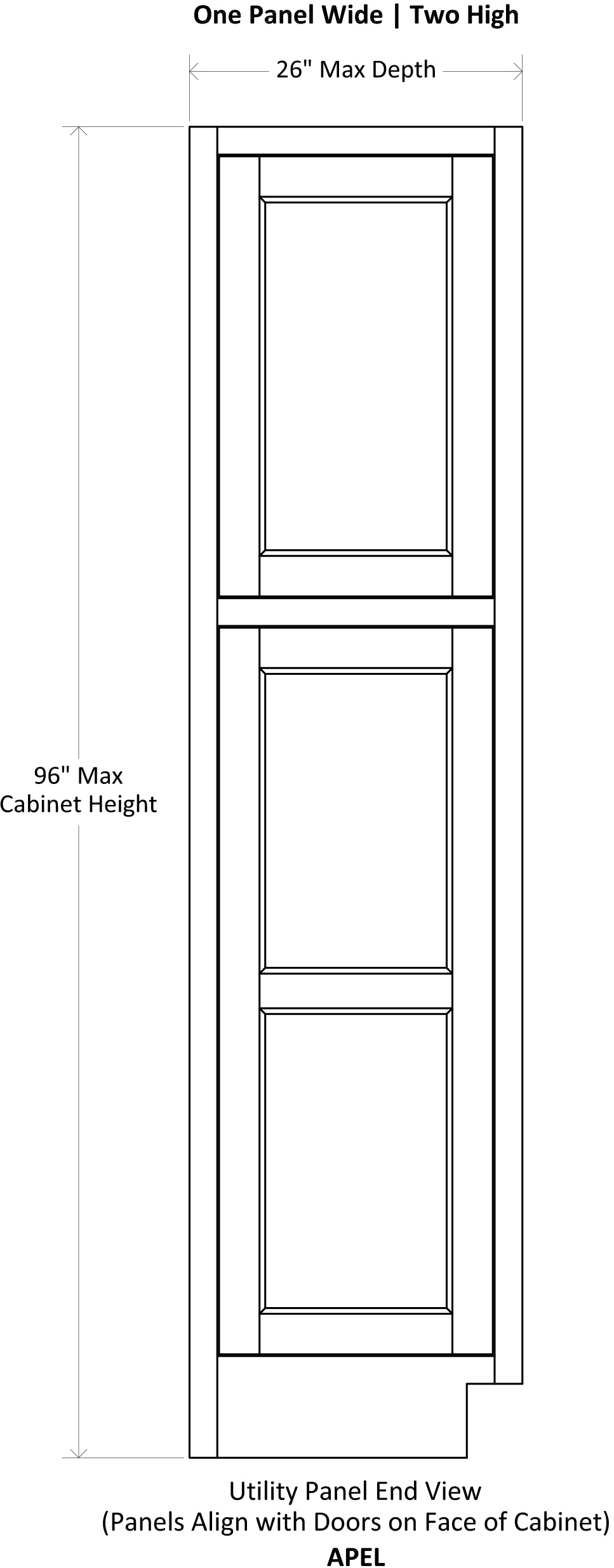

Specsheet Applied Panel End Framed Utility 1

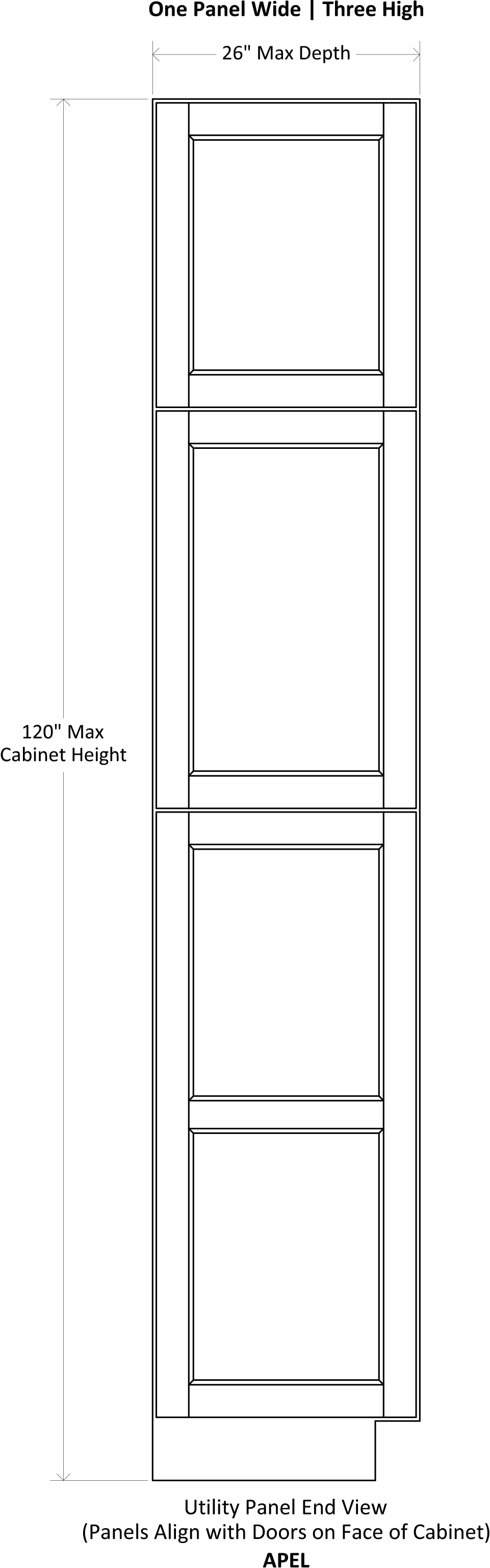

Specsheet Applied Panel End Framed Utility 2

Inset

Wall Cabinet

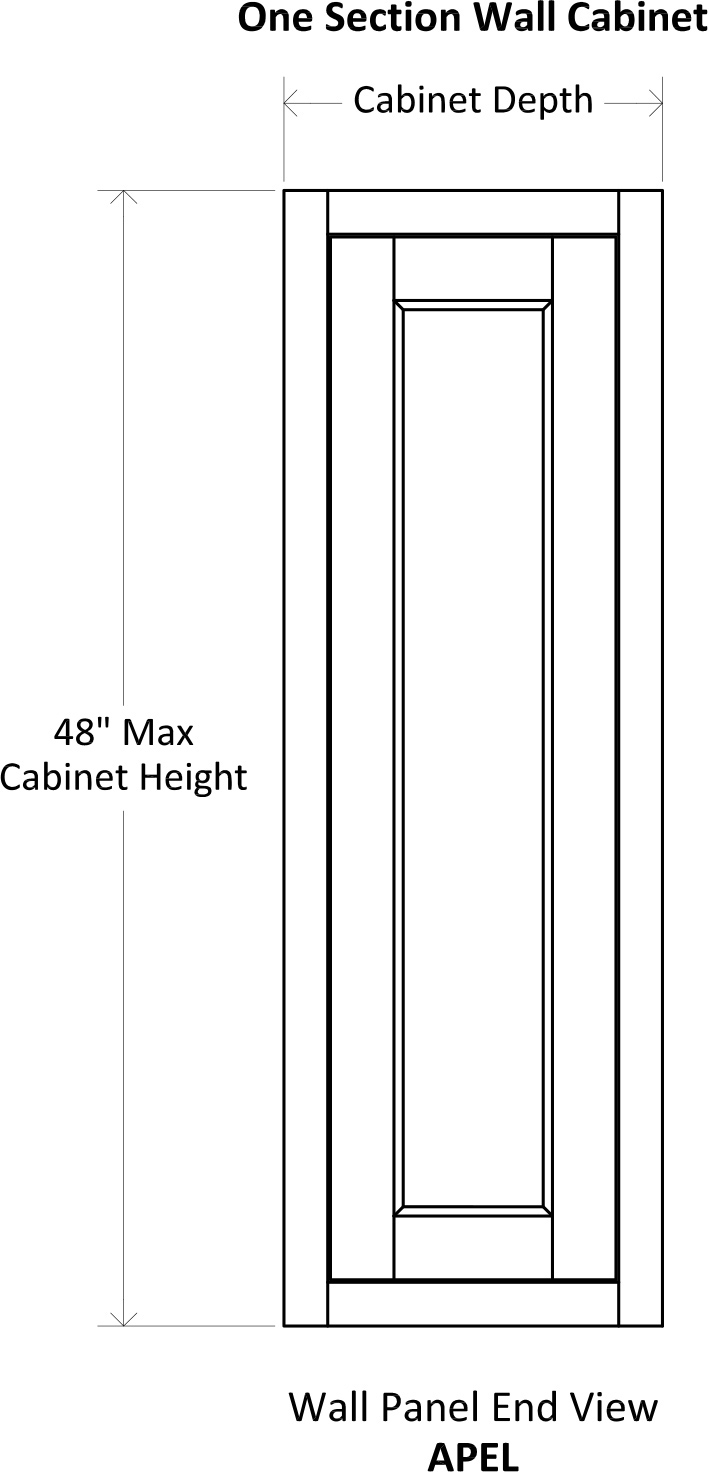

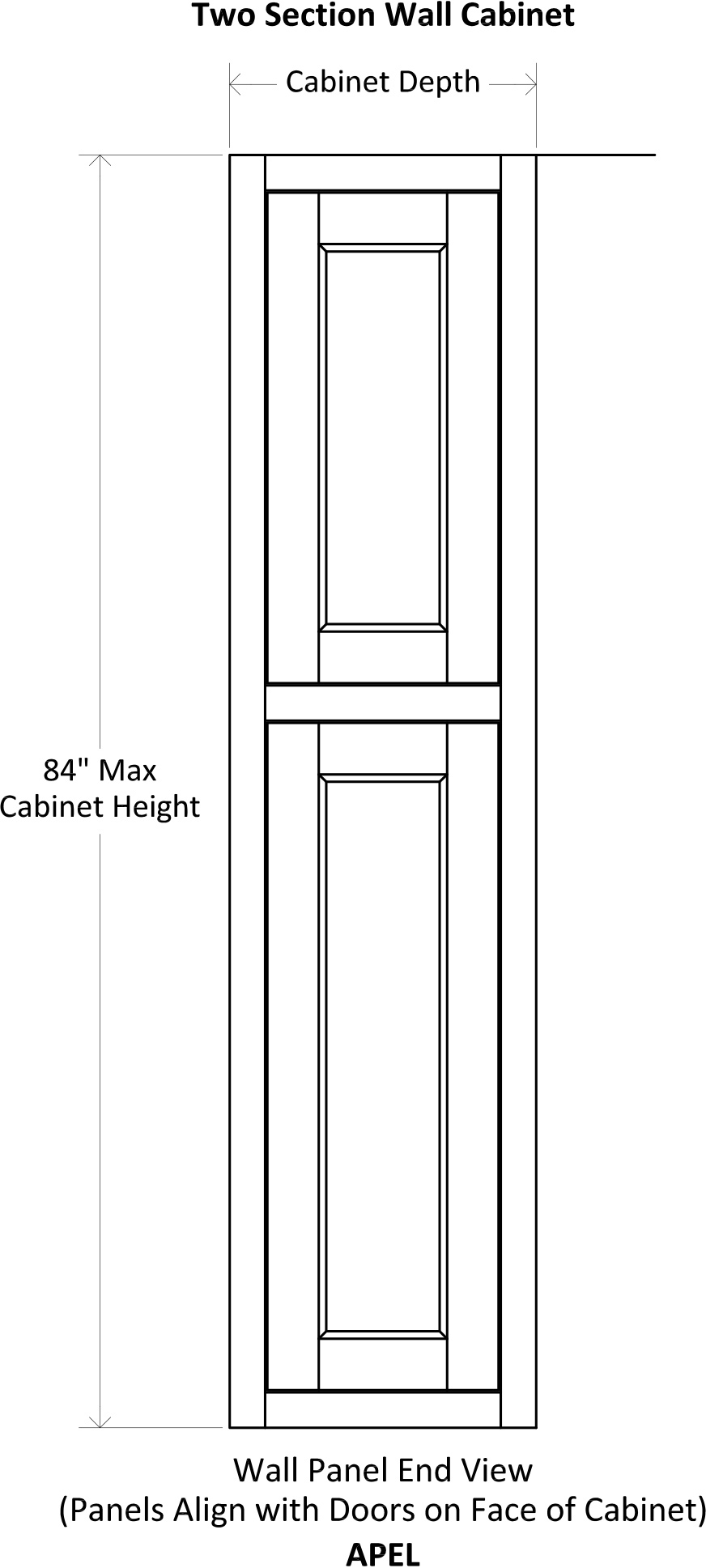

Specsheet Applied Panel End Framed Wall Inset 1

Specsheet Applied Panel End Framed Wall Inset 2

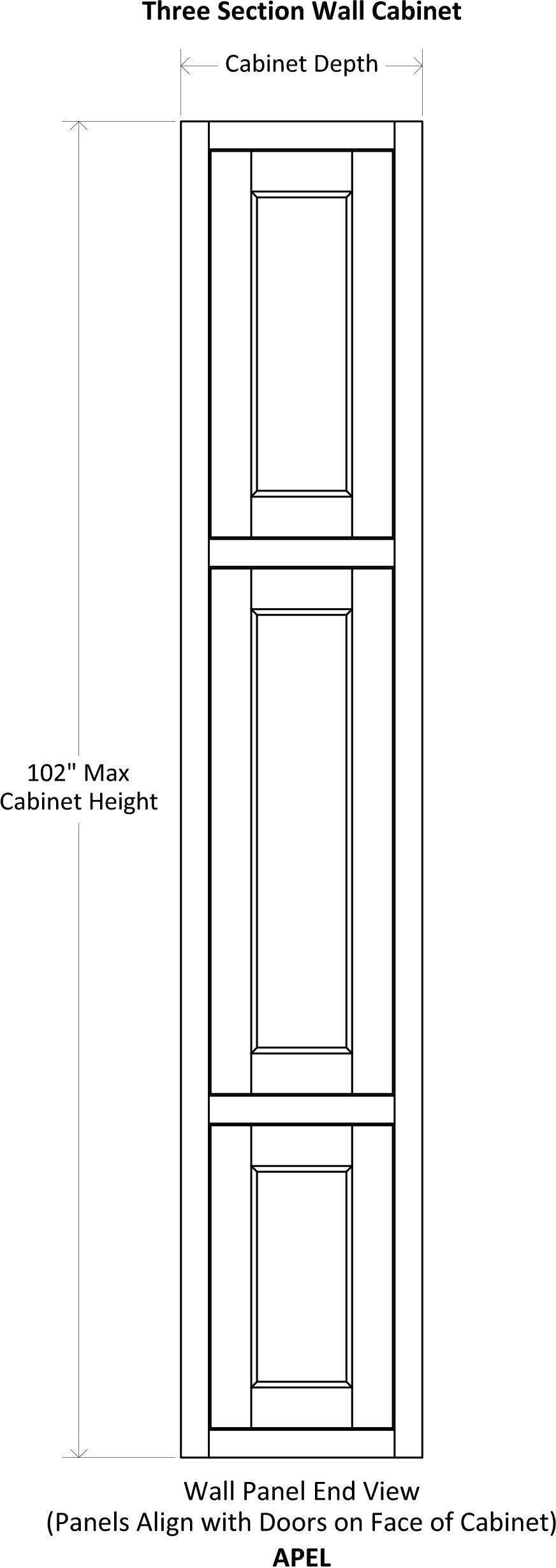

Specsheet Applied Panel End Framed Wall Inset 3

Base Cabinet

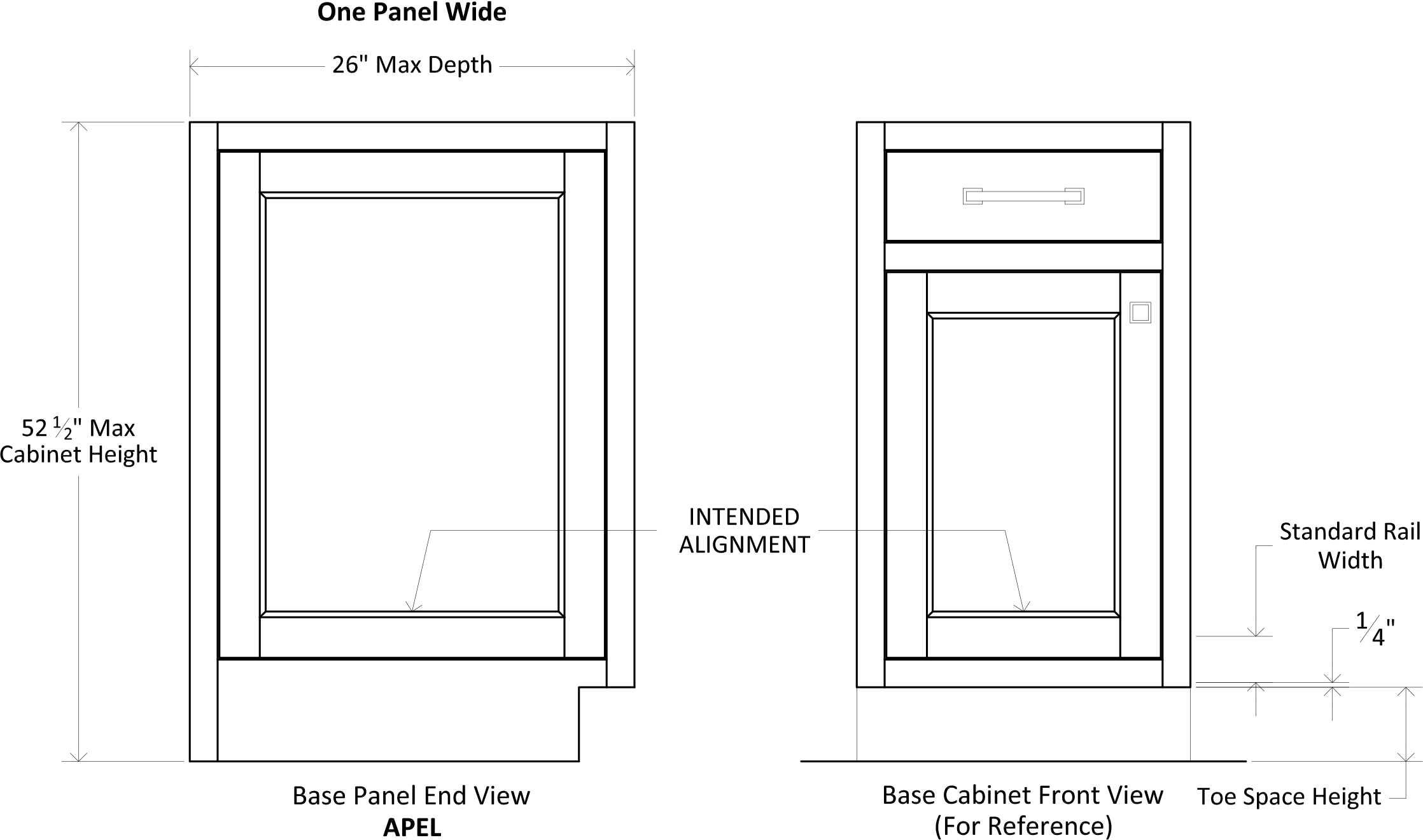

Specsheet Applied Panel End Framed Base Inset 1

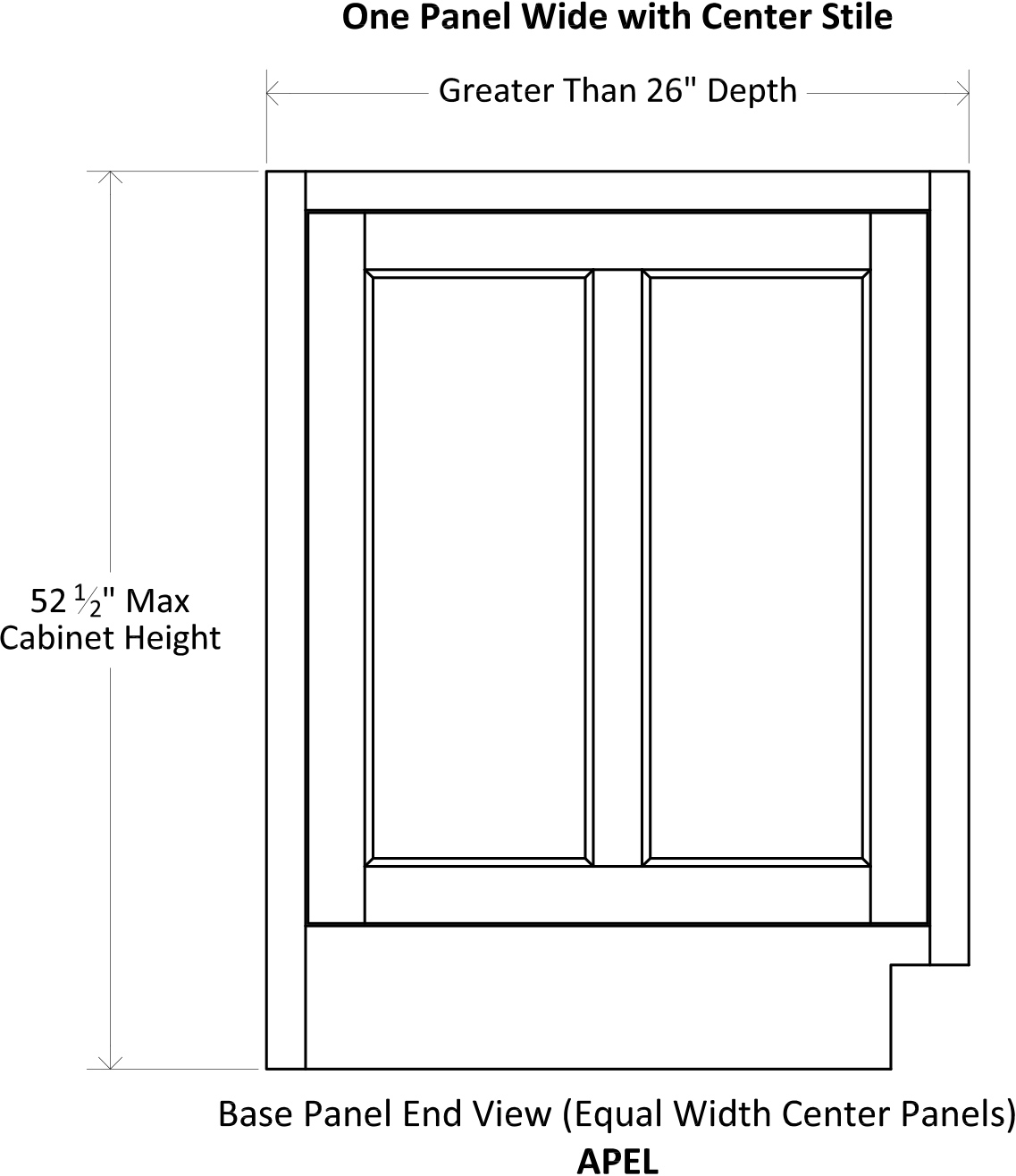

Specsheet Applied Panel End Framed Base Inset 2

Utility Cabinet

Specsheet Applied Panel End Framed Utility Inset 1

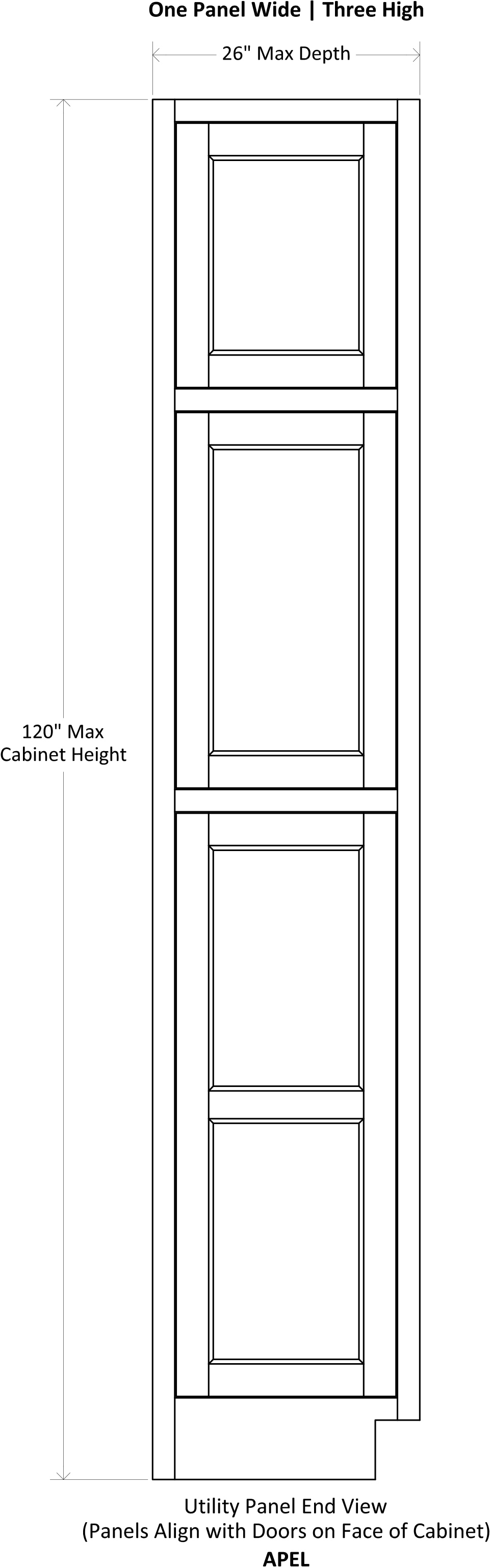

Specsheet Applied Panel End Framed Utility Inset 2

Modification Name	Mod Code
Applied Panel End Left	APEL
Applied Panel End Right	APER
