Floating Shelf Spec
Floating Shelf Codes and Widths
| No. |
Item Codes |
Width |
| 1 |

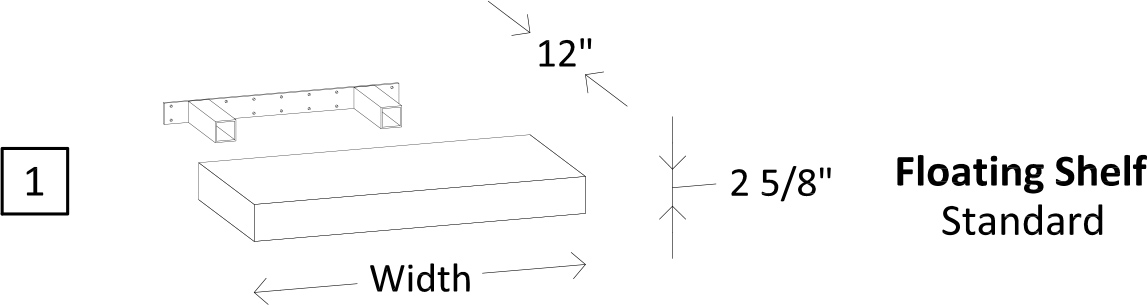

FS24 |
24" |
| 2 |

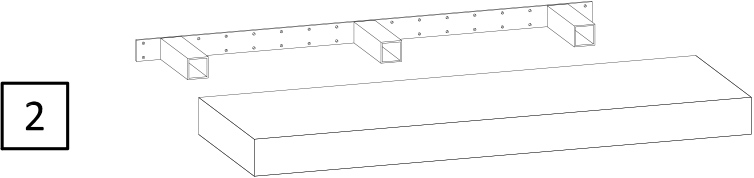

FS36 |
36" |
| 3 |

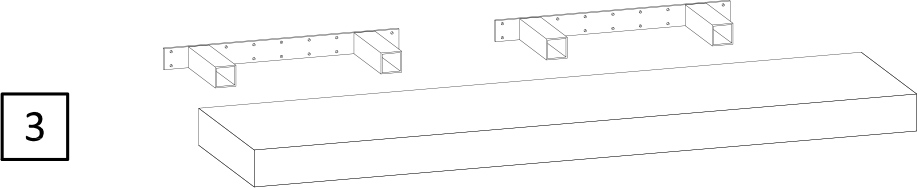

FS48 |
48" |
| 4 |

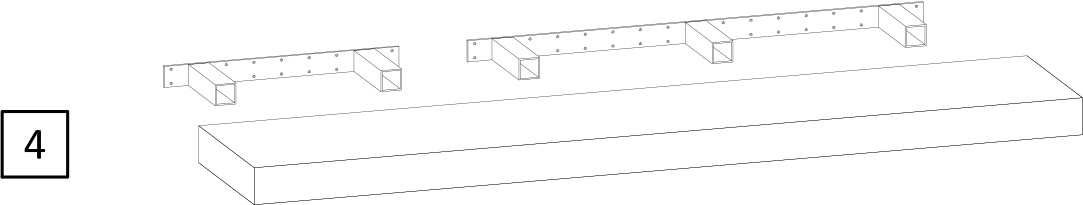

FS60 |
60" |
| 5 |

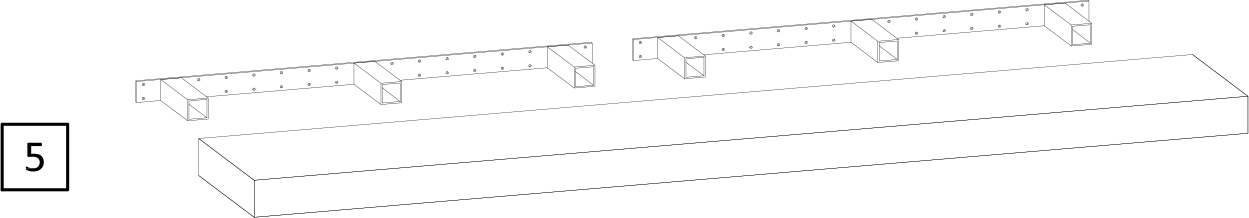

FS72 |
72" |
| 6 |

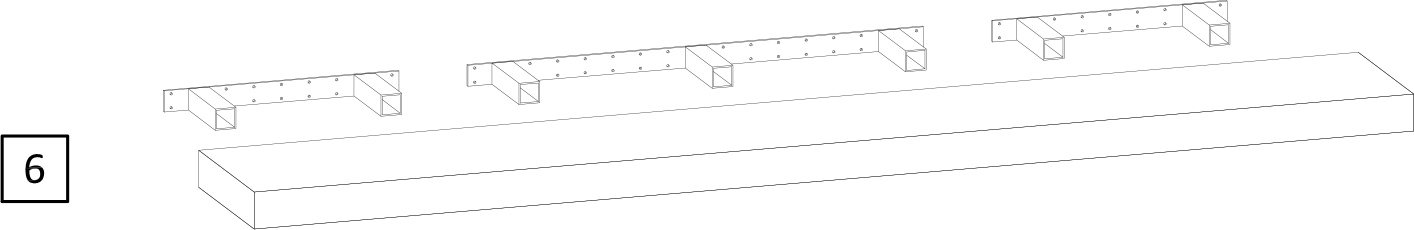

FS84 |
84" |
| 7 |

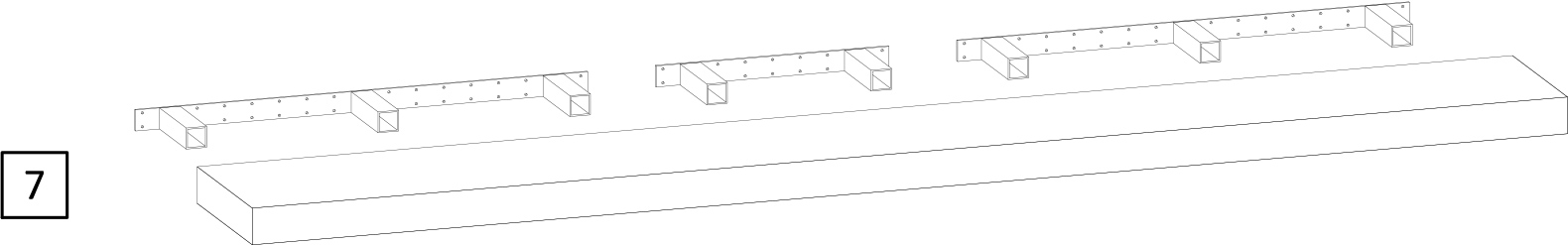

FS96 |
96" |
Design Notes
- Set Height Size - Height Mods are Not Available
- Increase Width Floating Shelf Modification (IWFS) Available to Increase Each Shelf Width Up to 12" - Maximum Width is 96"
- Minimum Depth is 9" - Maximum Depth is 12"
- Finished All Surfaces Except Back
- Grain Runs with the Width of the Shelf
- Grain at Ends Runs with the Depth of the Shelf
- Metal Brackets Included for Wall Mount
- When Properly Installed the Maximum Load for the Shelf is 15 lbs Per Lineal Foot based on Original Width of SKU Ordered
