Drawer Box & Rollout Spec

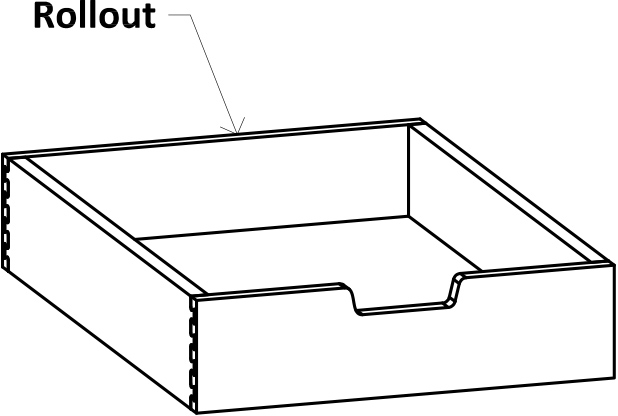

Drawer Box & Rollout Construction

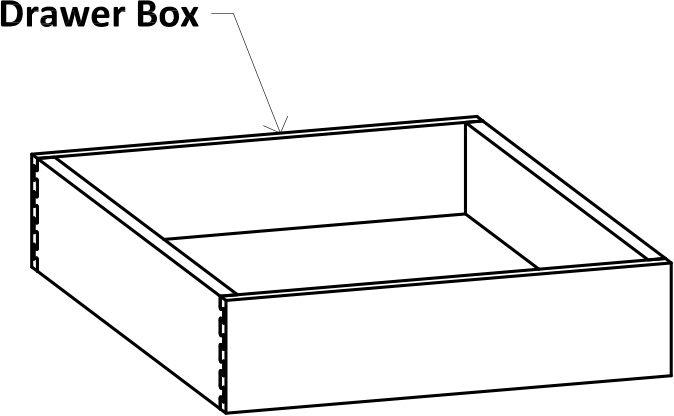

Three Dimensional View
Specifications
- Wood Species:
- Maple
- Joinery:
- Dovetail
- Drawer Guides:
- Blum TANDEM plus BLUMOTION - Soft Close - Self Close - Full Extension Concealed Undermount
- Load Capacity:
- Dynamic - 75 lb | Static - 100 lb
- Finish:
- Natural - Matte Sheen
- Drawer Box Standard Heights:
- 2" | 3" | 4" | 6" | 8" | 9 1/2" for File Drawers Only
- Rollout Standard Heights:
- 2" | 4"
- Standard Depths:
- 9" | 12" | 15" | 18" | 21"
- Maximum Depth:
- 21"
Design Notes
- Drawer Box Standard Depths are in 3" Increments and are 3" Less than Standard Cabinet Depth
- Tallest Drawer Box Height is Used that Cabinet Opening Height Allows - See Drawer Box Height Specs
- Drawer Box or Nested Rollout Exterior Width Calculation:
- Cabinet Opening Width Minus 3/8"
- Rollout (Adjustable with Vertical Wood Supports):
- Varies - Contact Customer Service
- Interior Height Calculation:
- Drawer Box or Rollout Height Minus 3/4"
- Interior Width Calculation:
- Drawer Box or Rollout Width Minus 1 1/4"
- Interior Depth Calculation:
- Drawer Box or Rollout Depth Minus 1 1/4"

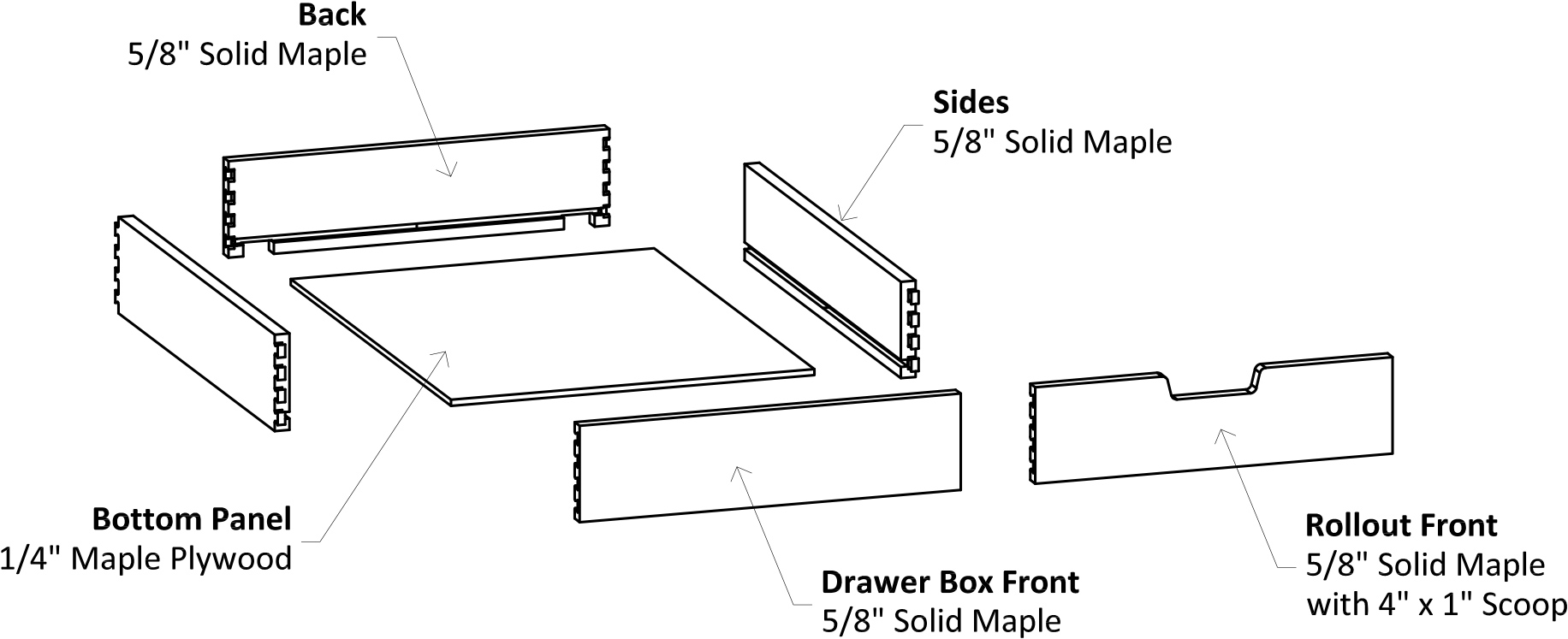

Exploded Three Dimensional View
Drawer Box Height
Framed

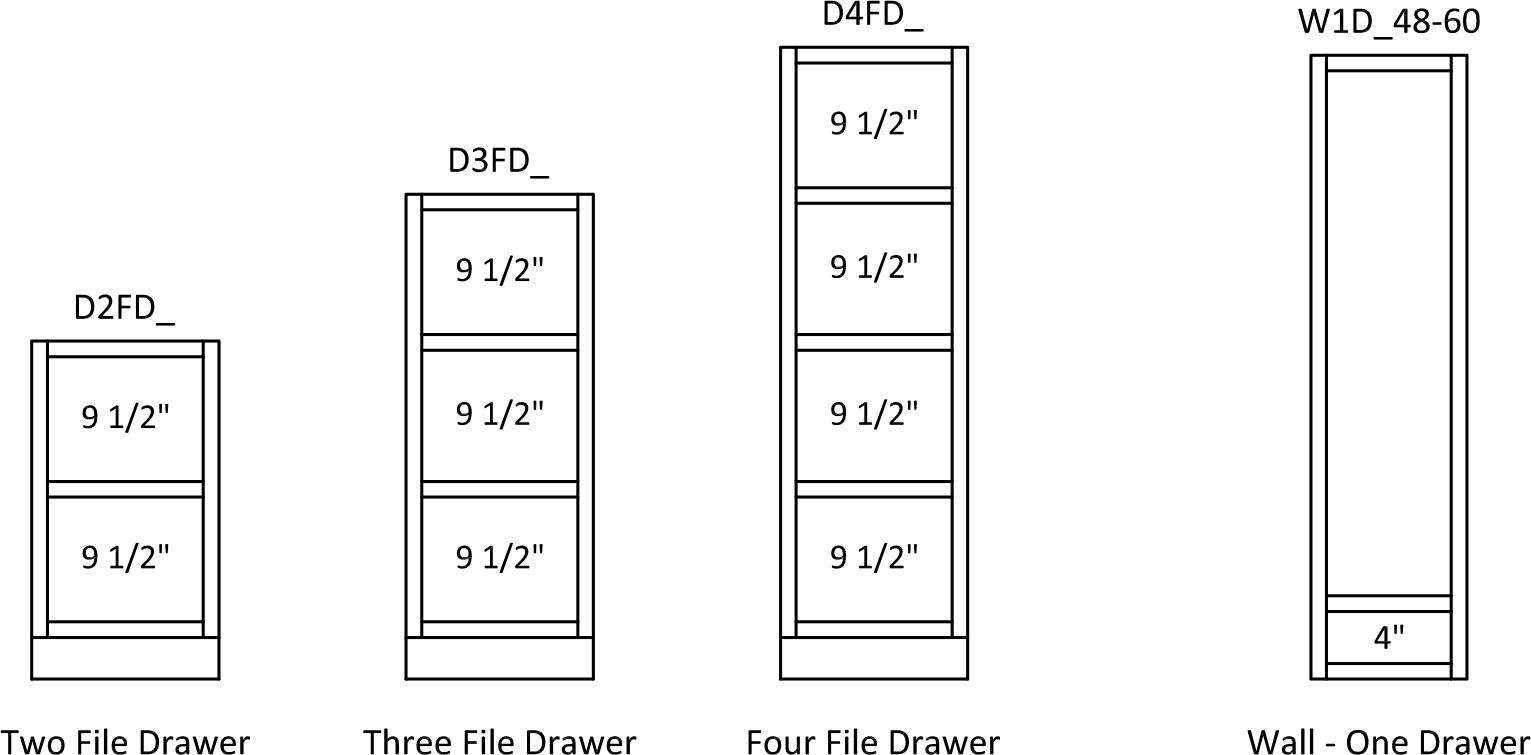

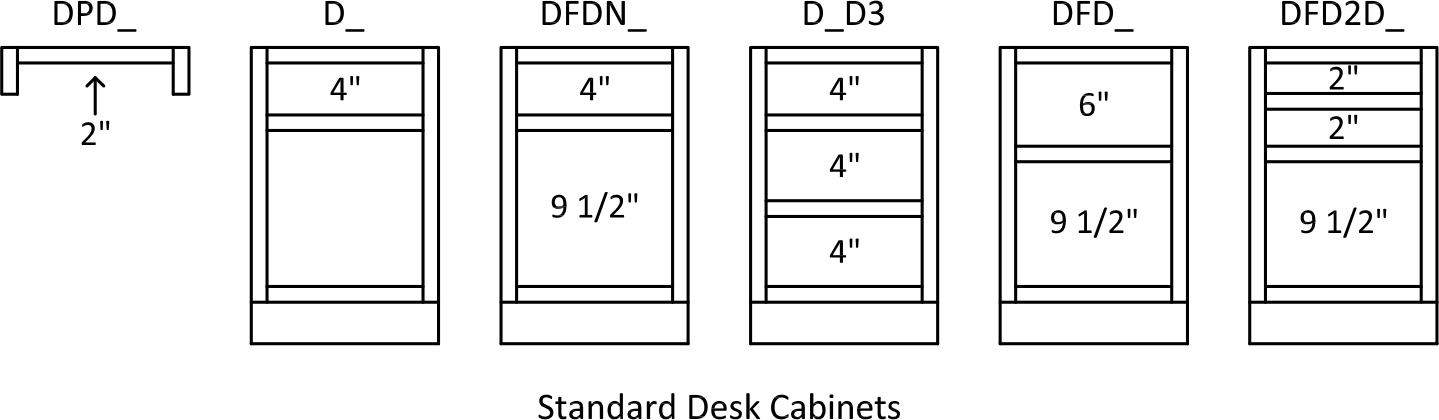

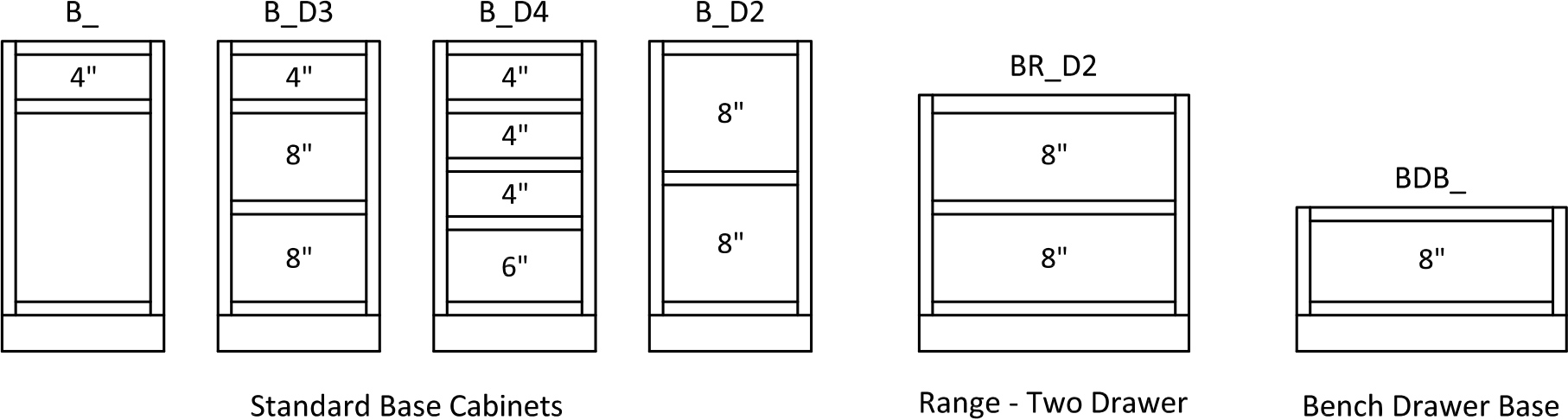

Dimensions Shown Indicate Drawer Box Height

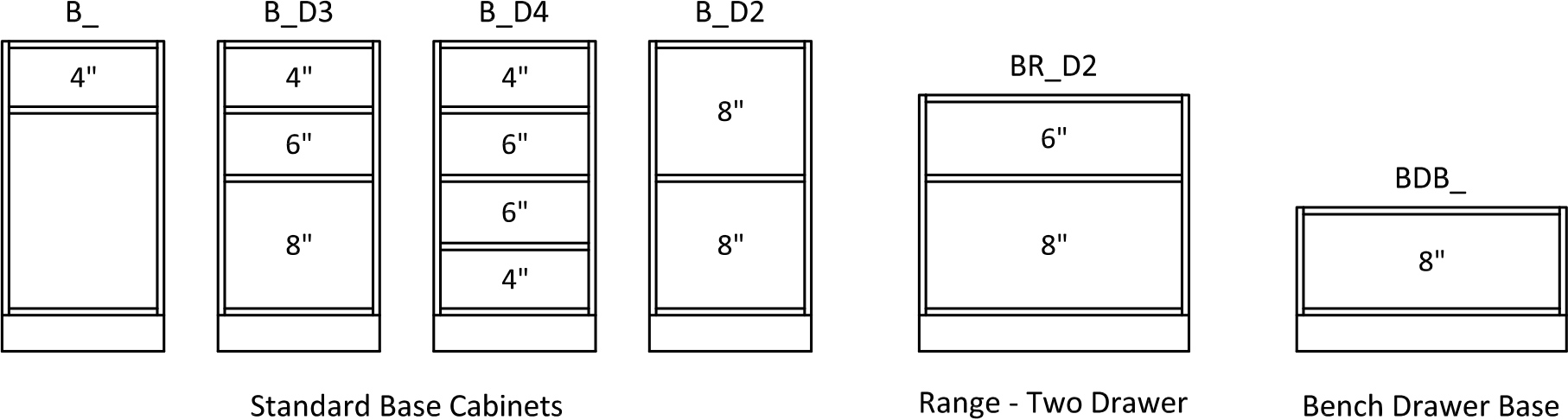

Frameless

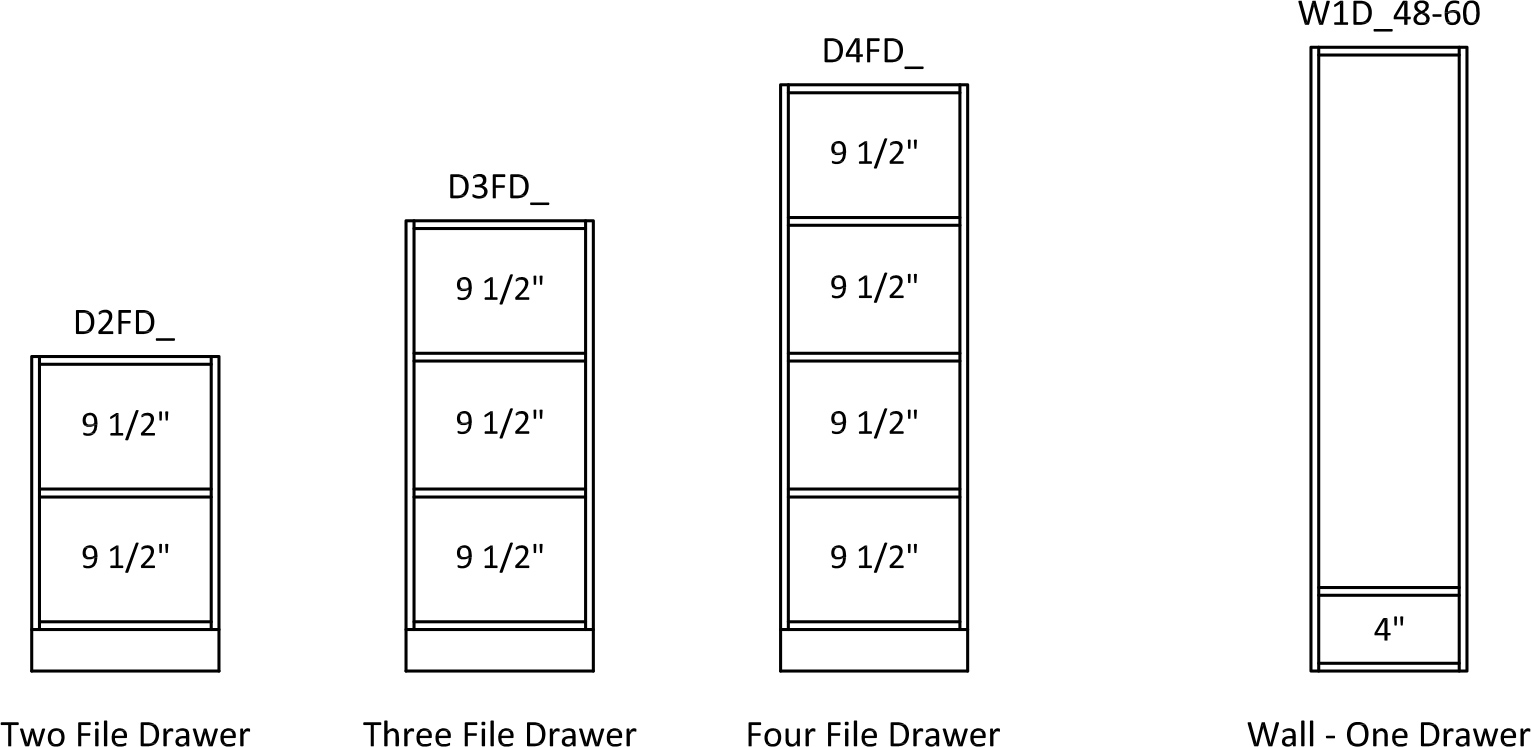

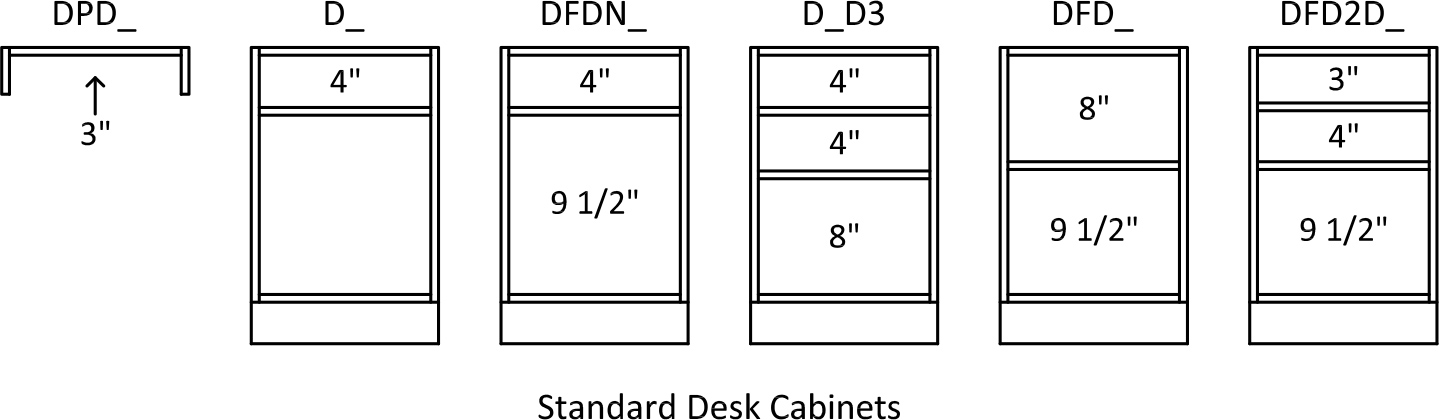

Dimensions Shown Indicate Drawer Box Height
