Corner Blind Base Cabinet Design Applications
Lazy Charlie - Lemans II - Plan View

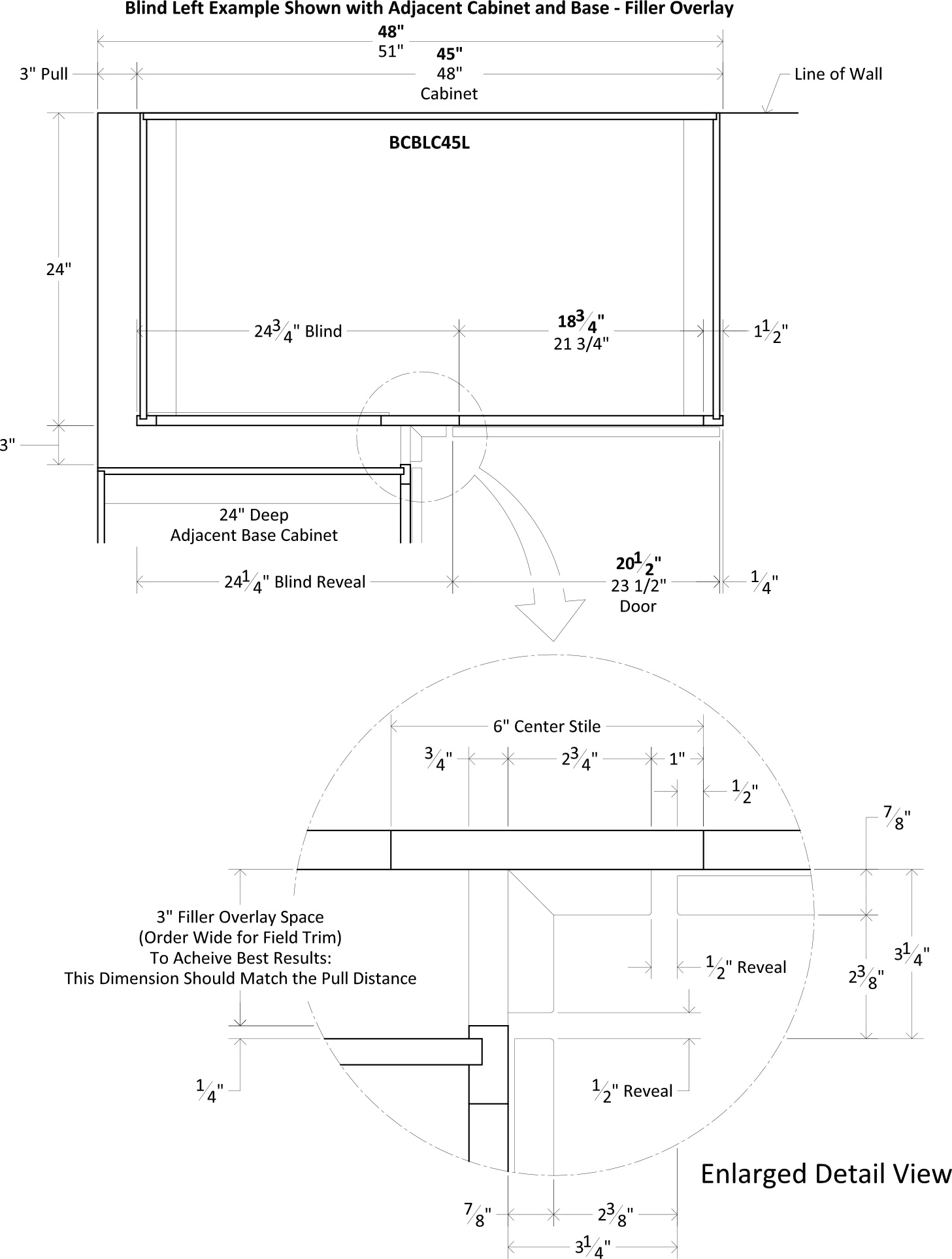

Framed - Full Overlay
Design Notes
- 3" Pull Recommended (2" Minimum, 4" Maximum)
- 3" Pull and 3" Filler Overlay Space Recommended (Order Filler Overlay Wide for Field Trim)
- 4" Wide Overlay Shipped with Cabinet

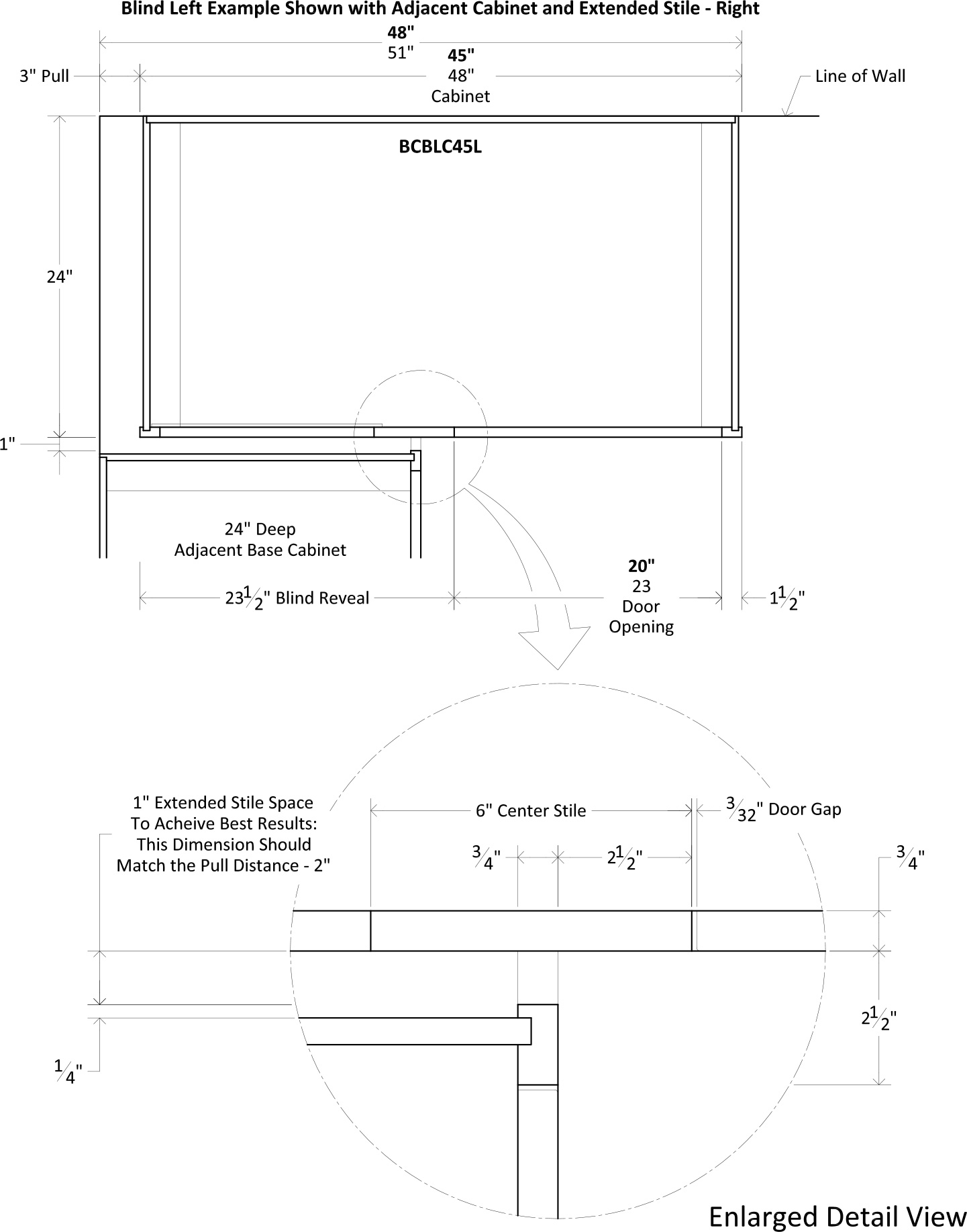

Framed - Inset
Design Notes
- 3" Pull Recommended (2" Minimum, 4" Maximum)
- 3" Pull and 1" Extended Stile Space Recommended (Extended Stile= Pull Distance - 2")

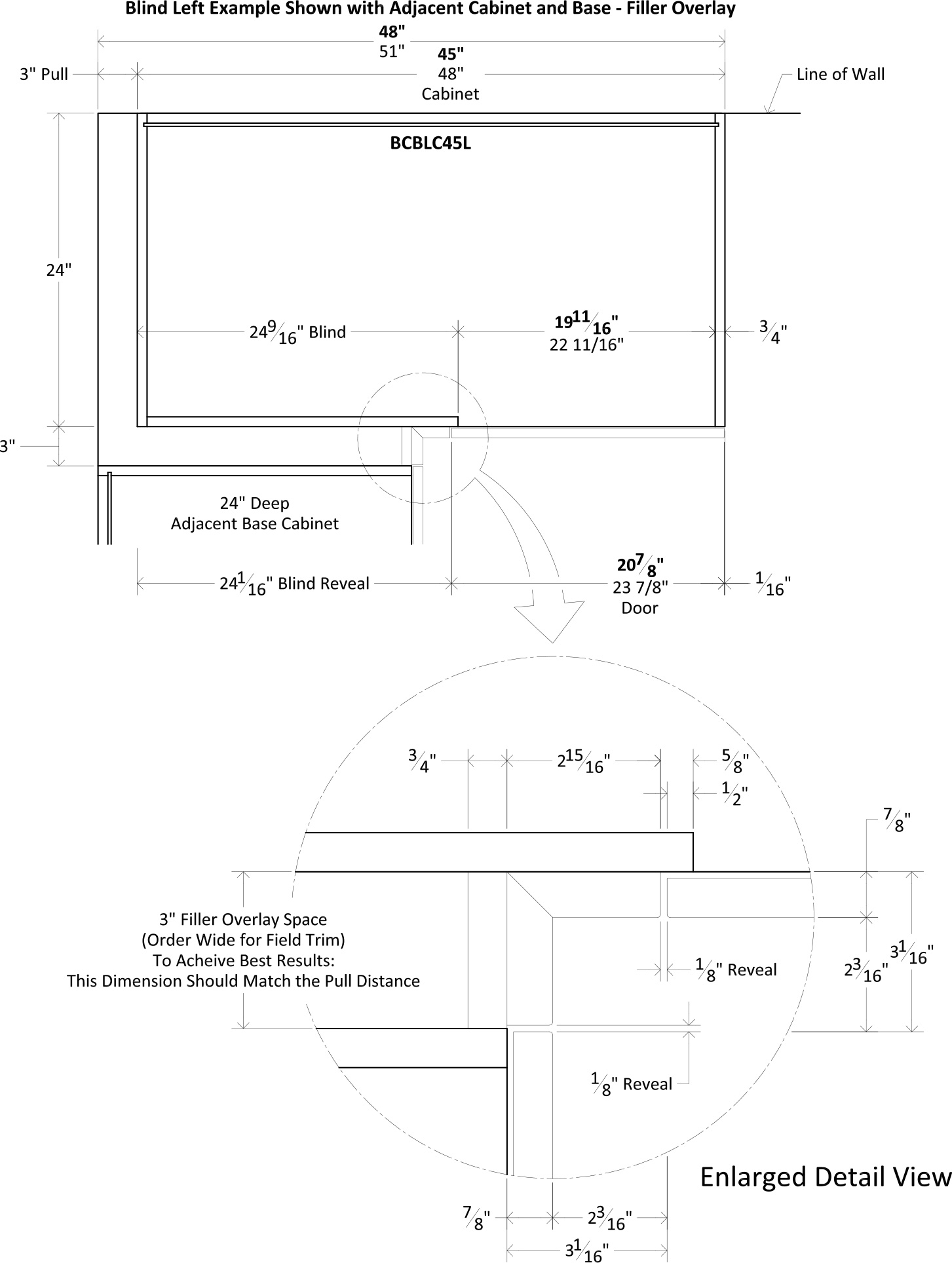

Frameless
Design Notes
- 3" Pull Recommended (2" Minimum, 4" Maximum)
- 3" Pull and 3" Filler Overlay Space Recommended (Order Filler Overlay Wide for Field Trim)
- 4" Wide Overlay Shipped with Cabinet
