Base End Panel Spec

Standard Configurations

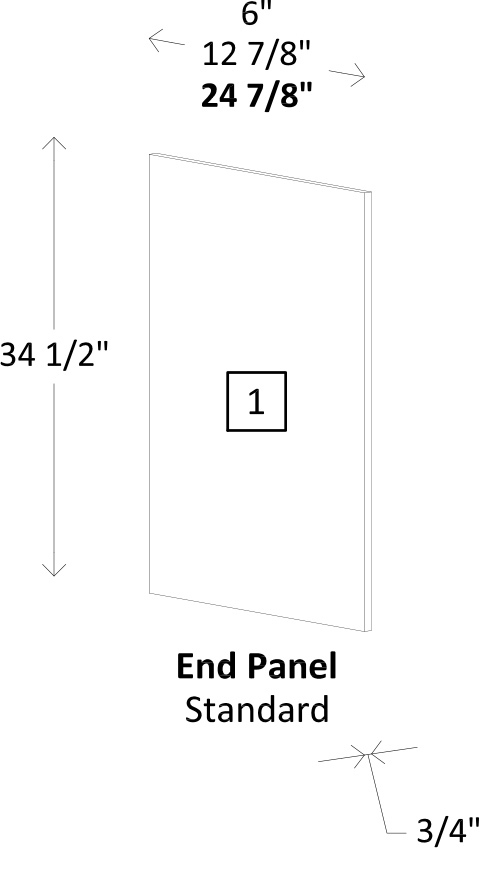

Specsheet Base End Panel 1

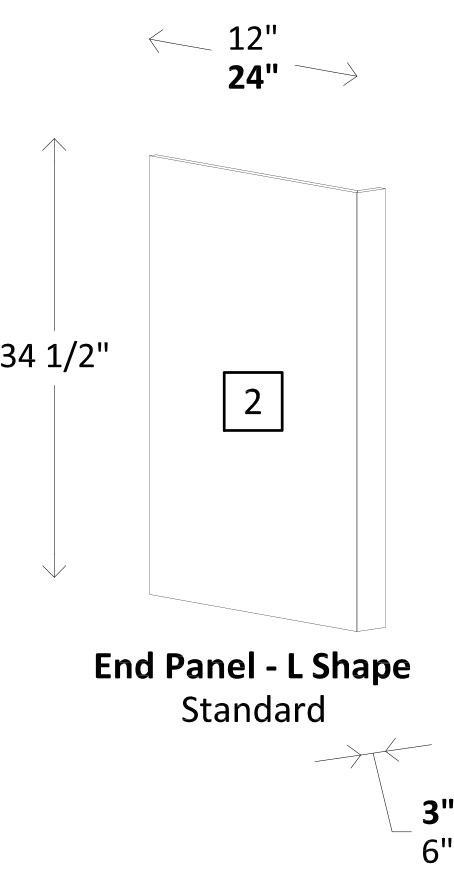

Specsheet Base End Panel 2

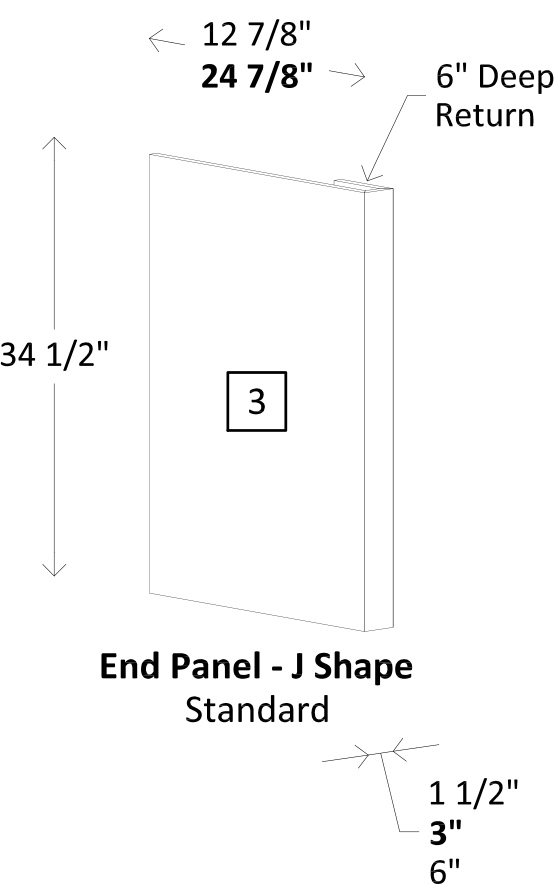

Specsheet Base End Panel 3

Specsheet Base End Panel 4

No.	Item Code	Panel Depth
1	BEP24.875	24 7/8"
2	BEPL3-24L	24"
3	BEPJ3-24.875L	24 7/8"
4	BEPU3-24.875L	24 7/8"

Design Notes

See Base - End Panel Specifications for Available Modifications to Achieve Additional Panel End Configurations

Base - End Panel

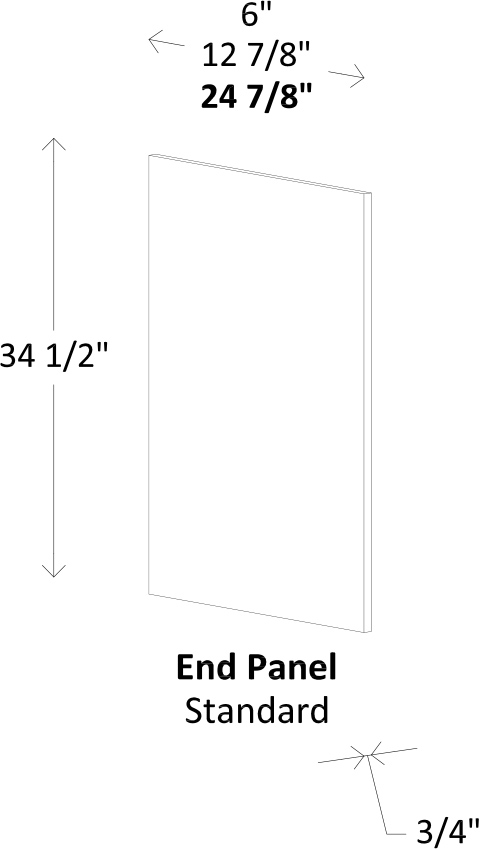

Specsheet Base End Panel 1A

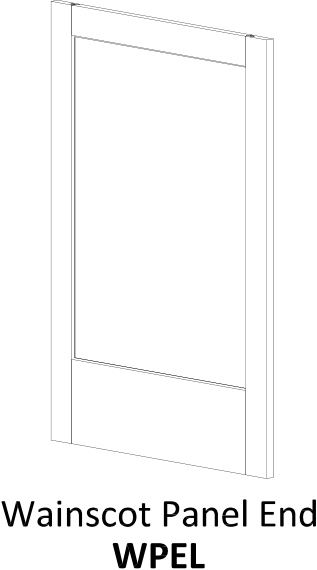

Specsheet Base End Panel 1B — Modification Name and Code to Achieve Additional Panel End Configuration

Item Code	Panel Depth
BEP6	6"
BEP12.875	12 7/8"
BEP24.875	24 7/8"

Design Notes

See Door Specifications on Door Style Page for Minimum Size When Adding the WPEL/R Modification
Finished Three Surfaces - Front, Left Side, and Right Side

Base - End Panel - L Shape

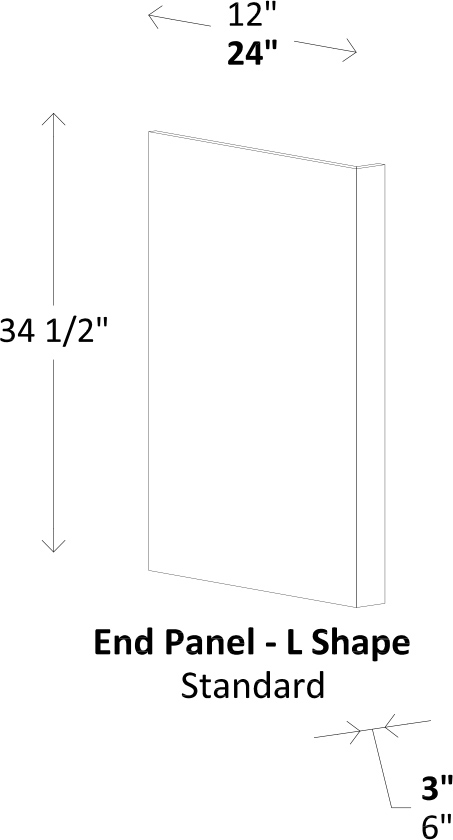

Specsheet Base End Panel L Shape 1

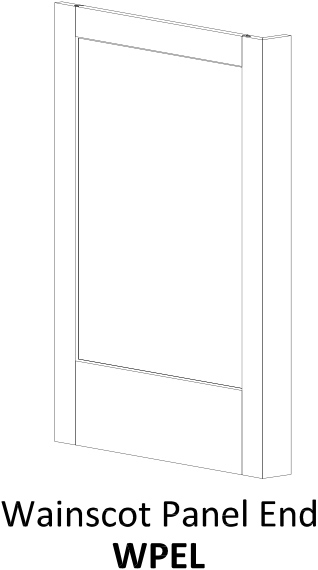

Specsheet Base End Panel L Shape 2 — Modification Name and Code to Achieve Additional Panel End Configuration

3" Width
Item Code	End Panel Depth
BEPL3-12L	12"
BEPL3-12R	12"
BEPL3-24L	24"
BEPL3-24R	24"

6" Width
Item Code	End Panel Depth
BEPL6-12L	12"
BEPL6-12R	12"
BEPL6-24L	24"
BEPL6-24R	24"

Design Notes

Left Shown - Right Opposite Shown
Finished Three Surfaces - Front, Left Side, and Right Side

Base - End Panel - J Shape

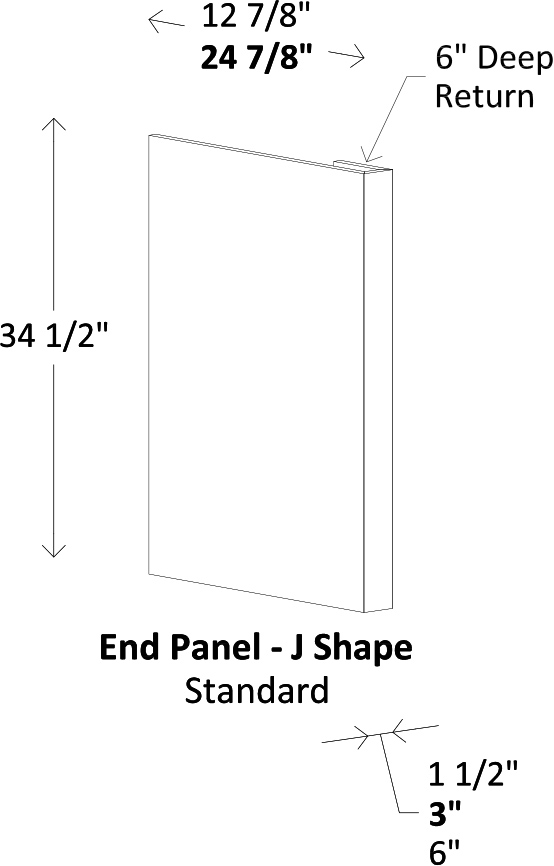

Specsheet Base End Panel J Shape 1

Specsheet Base End Panel J Shape 2 — Modification Name and Code to Achieve Additional Panel End Configuration

1 1/2" Width
Item Code	End Panel Depth
BEPJ1.5-12.875L	12 7/8"
BEPJ1.5-12.875R	12 7/8"
BEPJ1.5-24.875L	24 7/8"
BEPJ1.5-24.875R	24 7/8"

3" Width
Item Code	End Panel Depth
BEPJ3-12.875L	12 7/8"
BEPJ3-12.875R	12 7/8"
BEPJ3-24.875L	24 7/8"
BEPJ3-24.875R	24 7/8"

6" Width
Item Code	End Panel Depth
BEPJ6-12.875L	12 7/8"
BEPJ6-12.875R	12 7/8"
BEPJ6-24.875L	24 7/8"
BEPJ6-24.875R	24 7/8"

Design Notes

Left Shown - Right Opposite Shown
Inside Return Panel Depth is 6" Deep
Finished Three Surfaces - Front, Left Side, and Right Side

Base - End Panel - U Shape

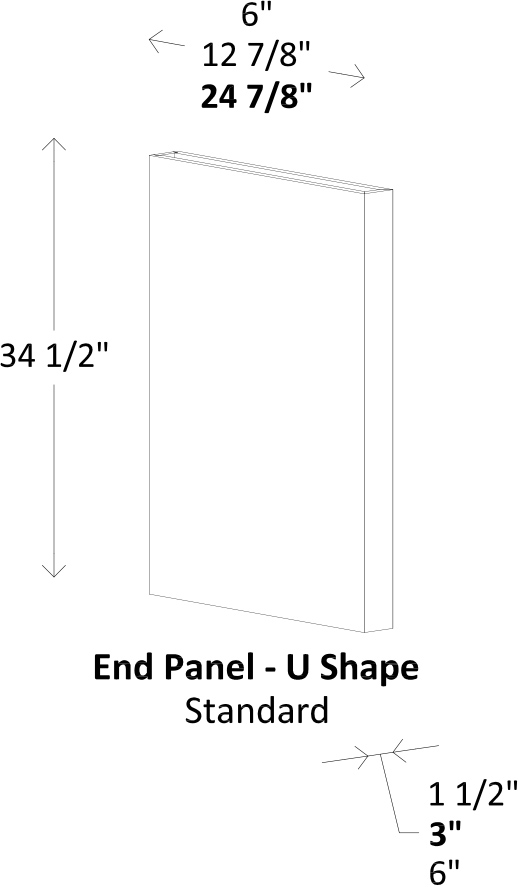

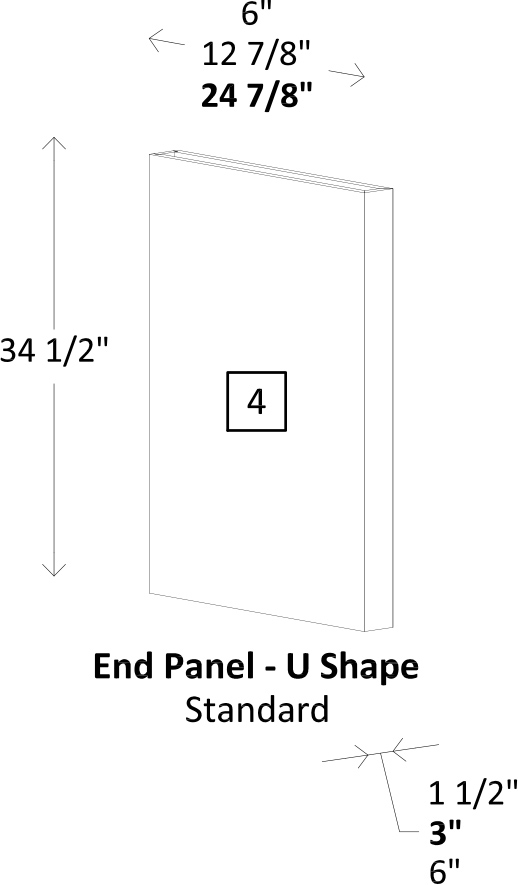

Specsheet Base End Panel U Shape 1

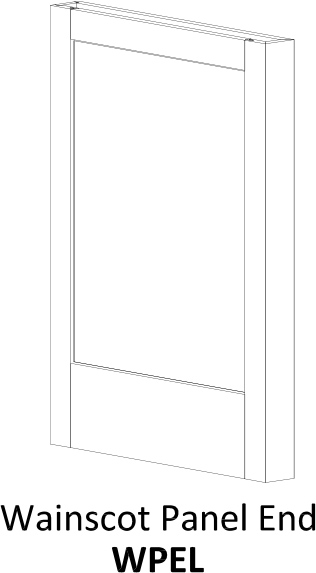

Specsheet Base End Panel U Shape 2 — Modification Name and Code to Achieve Additional Panel End Configuration

1 1/2" Width
Item Code	End Panel Depth
BEPU1.5-6	6"
BEPU1.5-12.875	12 7/8"
BEPU1.5-24.875	24 7/8"

3" Width
Item Code	End Panel Depth
BEPU3-6	6"
BEPU3-12.875	12 7/8"
BEPU3-24.875	24 7/8"

6" Width
Item Code	End Panel Depth
BEPU6-6	6"
BEPU6-12.875	12 7/8"
BEPU6-24.875	24 7/8"

Design Notes

See Door Specifications on Door Style Page for Minimum Size When Adding the WPEL/R Modification
Finished Three Surfaces - Front, Left Side, and Right Side
