Appliance Panel - Refrigeration Spec

Door Application Examples - Undercounter

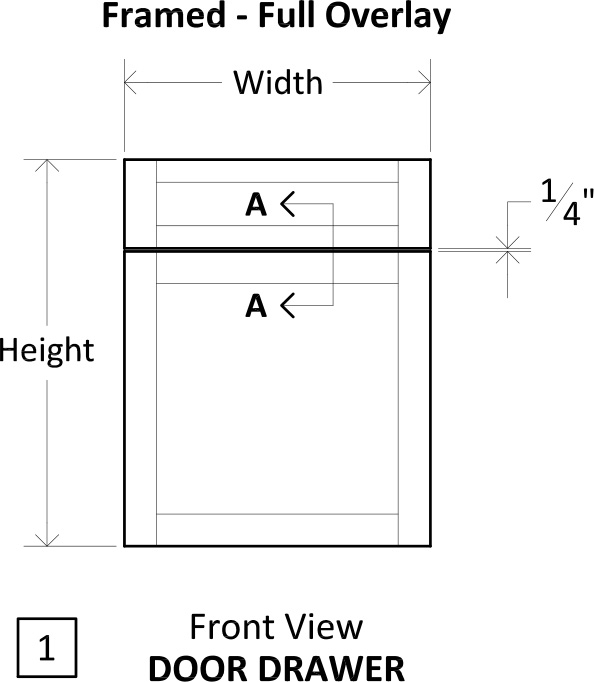

Specsheet App Panel Refrigeration Undercounter Door 1

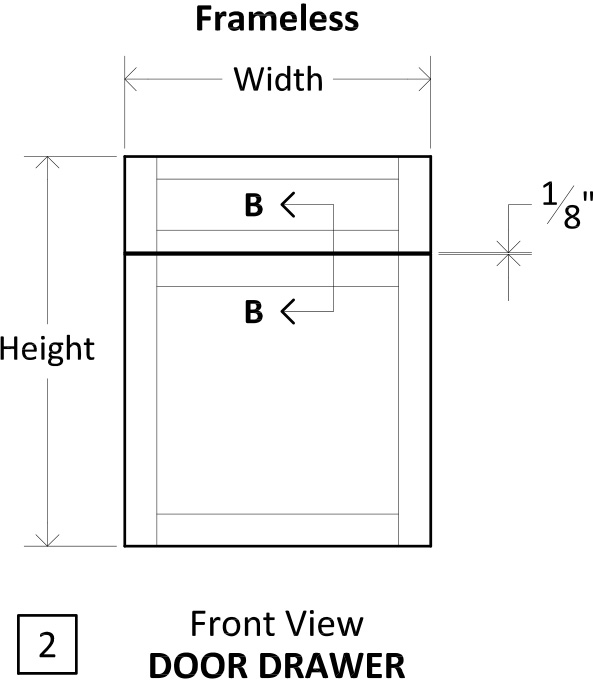

Specsheet App Panel Refrigeration Undercounter Door 2

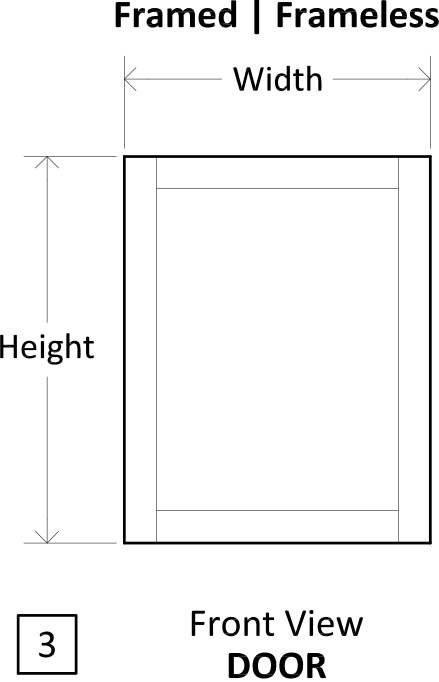

Specsheet App Panel Refrigeration Undercounter Door 3

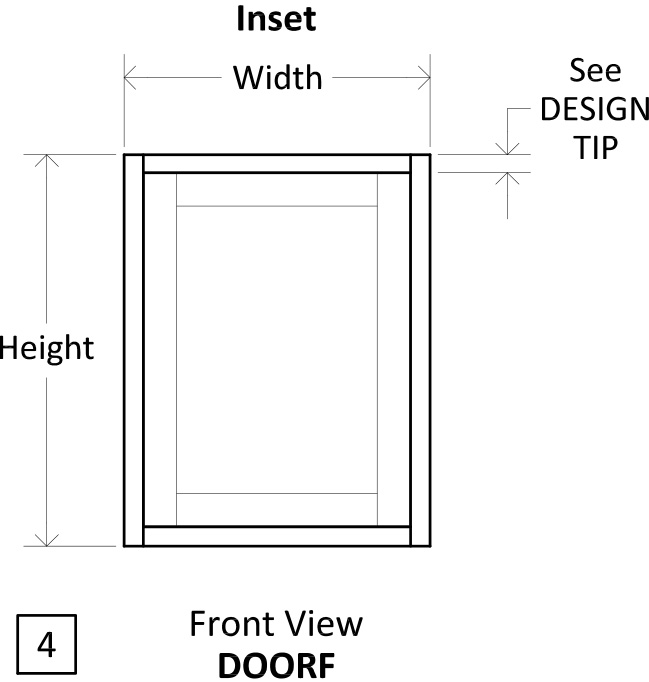

Specsheet App Panel Refrigeration Undercounter Door 4

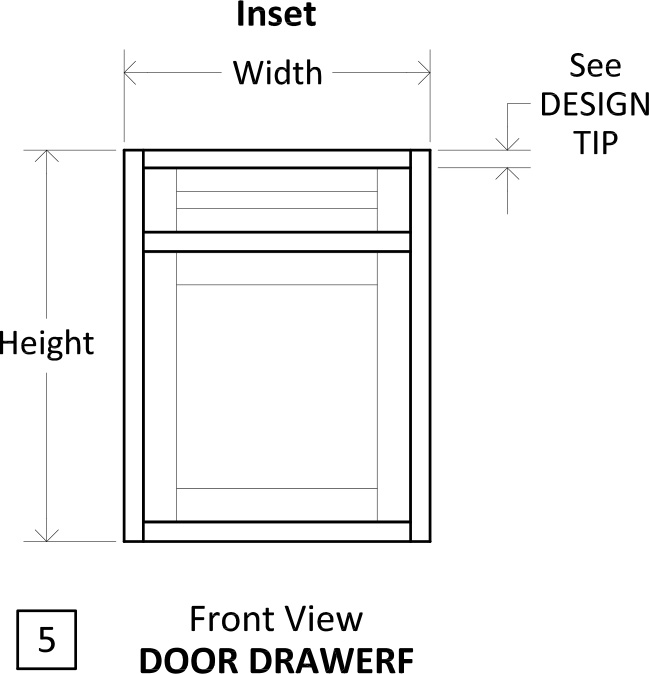

Specsheet App Panel Refrigeration Undercounter Door 5

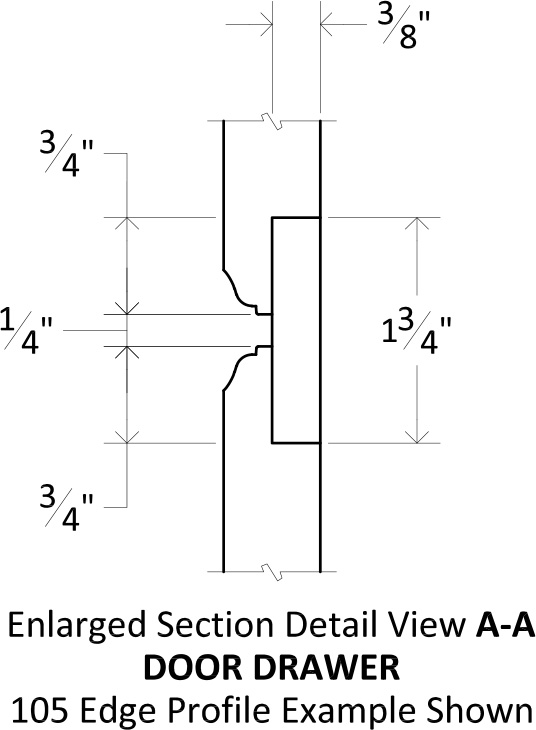

Specsheet App Panel Refrigeration Undercounter Door Detail Aa

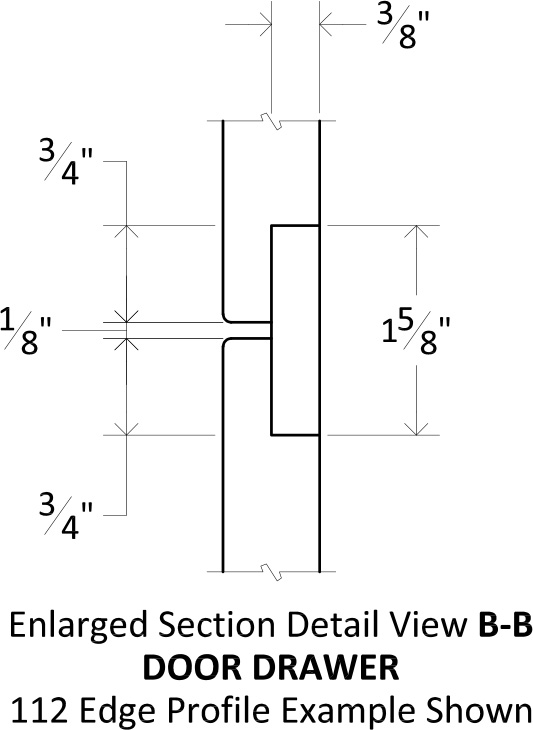

Specsheet App Panel Refrigeration Undercounter Door Detail Bb

No.	Item Code	Construction	Overlay
1	DOOR DRAWER	Framed	Full
2	DOOR DRAWER	Frameless	Full
3	DOOR	Framed \| Frameless	Full
4	DOORF	Framed	Inset
5	DOOR DRAWERF	Framed	Inset

Design Notes

Finished Two Sides and All Edges
Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required

Design Tip

Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Door/Drawer Front Alignment with Adjacent Cabinet(s)

Drawer Application Examples - Undercounter

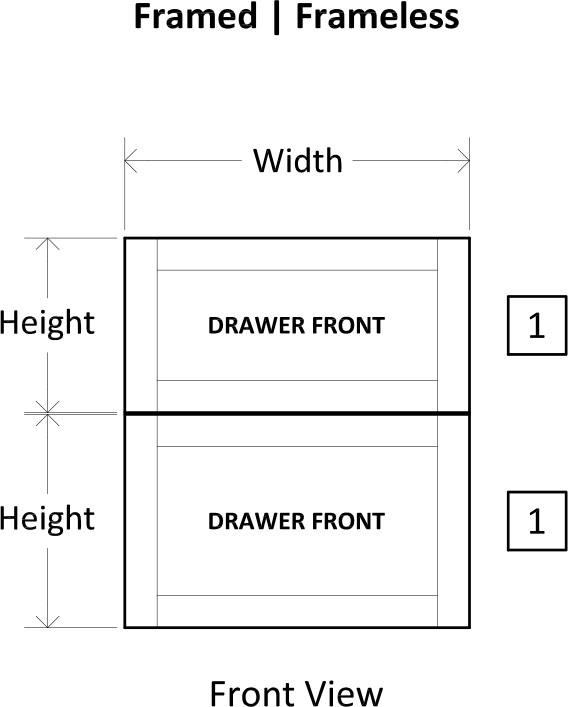

Specsheet App Panel Refrigeration Undercounter Drawer 1

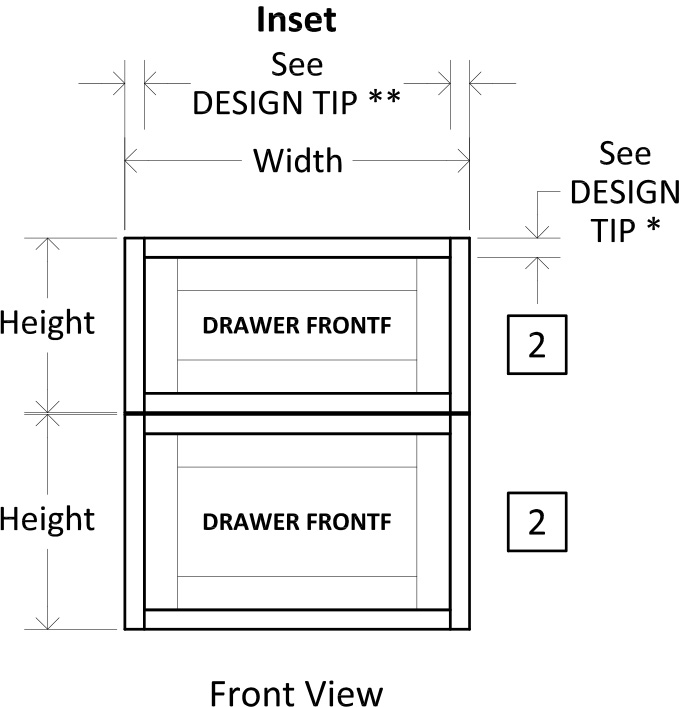

Specsheet App Panel Refrigeration Undercounter Drawer 2

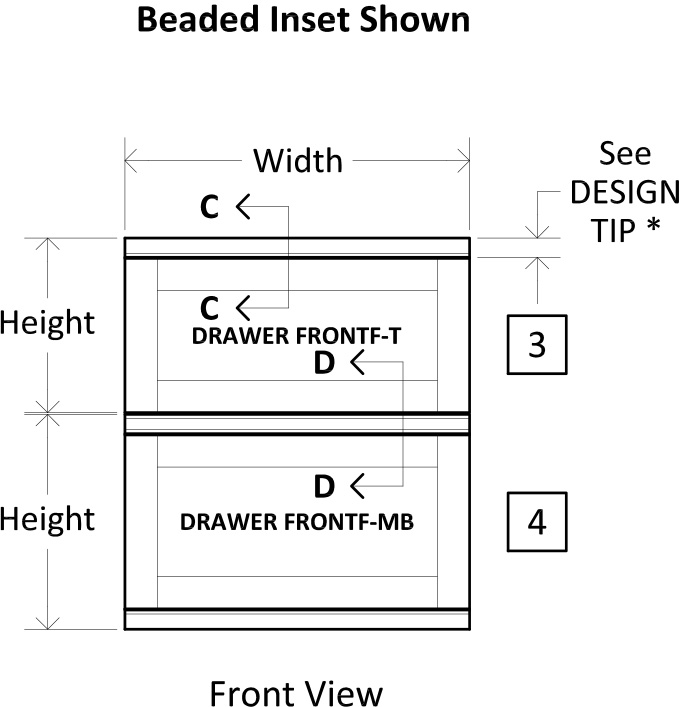

Specsheet App Panel Refrigeration Undercounter Drawer 3

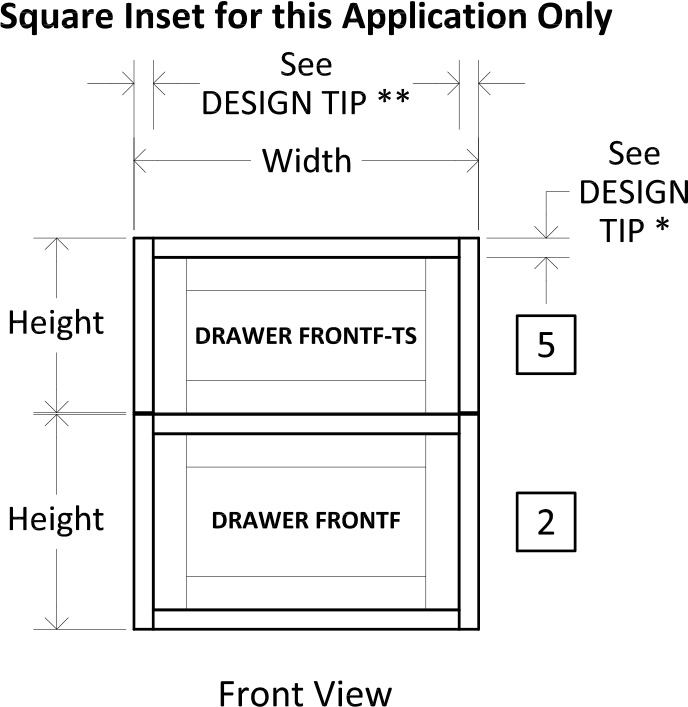

Specsheet App Panel Refrigeration Undercounter Drawer 4

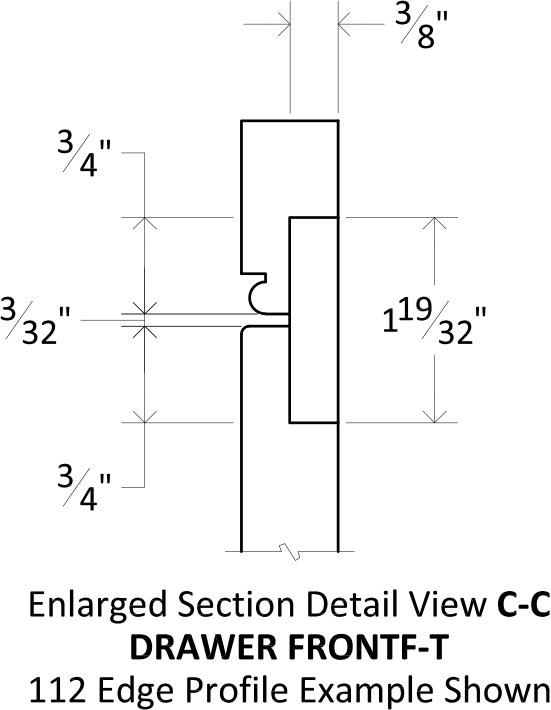

Specsheet App Panel Refrigeration Undercounter Drawer Detail Cc

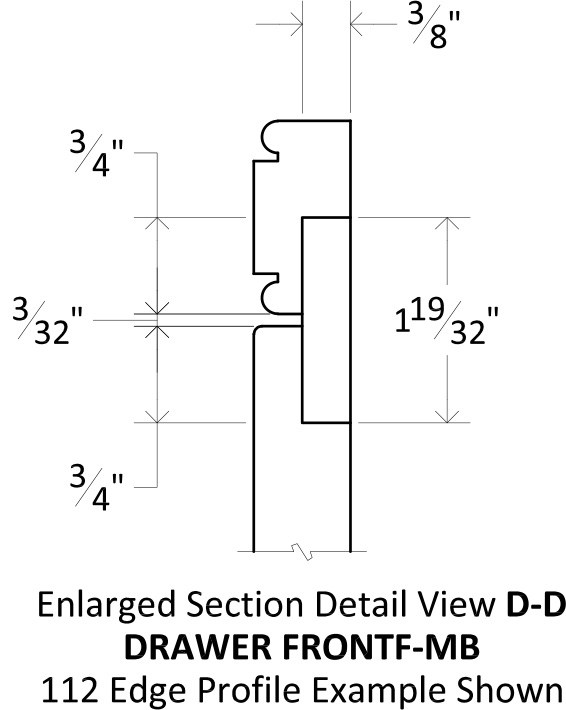

Specsheet App Panel Refrigeration Undercounter Drawer Detail Dd

No.	Item Code	Construction	Overlay
1	DRAWER FRONT	Framed \| Frameless	Full
2	DRAWER FRONTF	Framed	Inset
3	DRAWER FRONTF-T	Framed	Inset
4	DRAWER FRONTF-MB	Framed	Inset
5	DRAWER FRONTF-TS	Framed	Inset

Design Notes

Finished Two Sides and All Edges
Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required

Design Tip

* Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Drawer Front Alignment with Adjacent Cabinet(s)
** Left and Right Face Frame Stiles can be Reduced with Wide Stile Left Modification (WSL) and Wide Stile Right Modification (WSR) to Maintain Drawer Front Alignment with Adjacent Cabinet(s)

Door and Drawer Application Examples - Tall

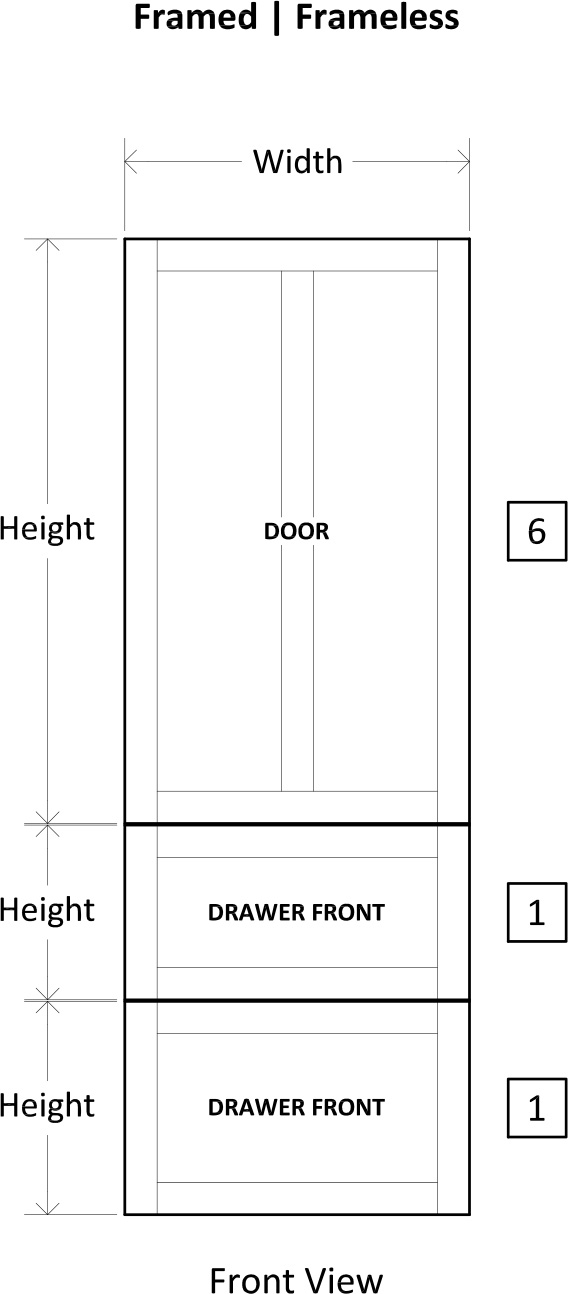

Specsheet App Panel Refrigeration Door Drawer Tall 1

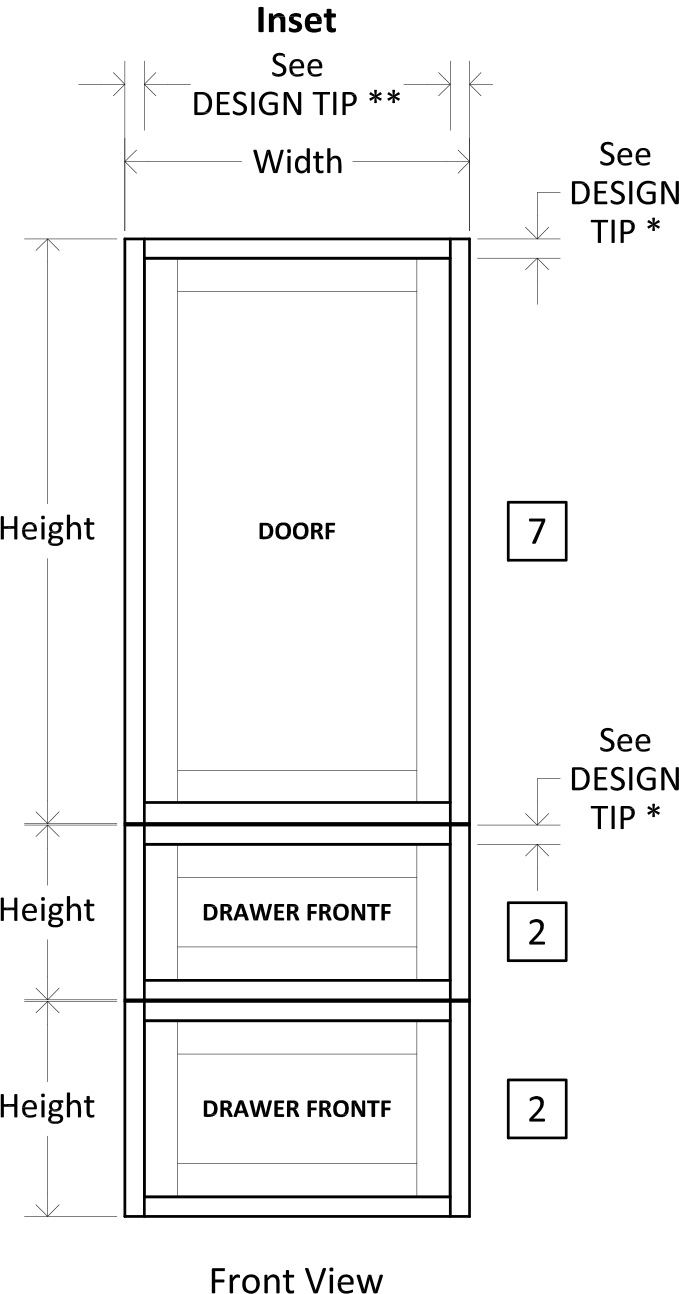

Specsheet App Panel Refrigeration Door Drawer Tall 2

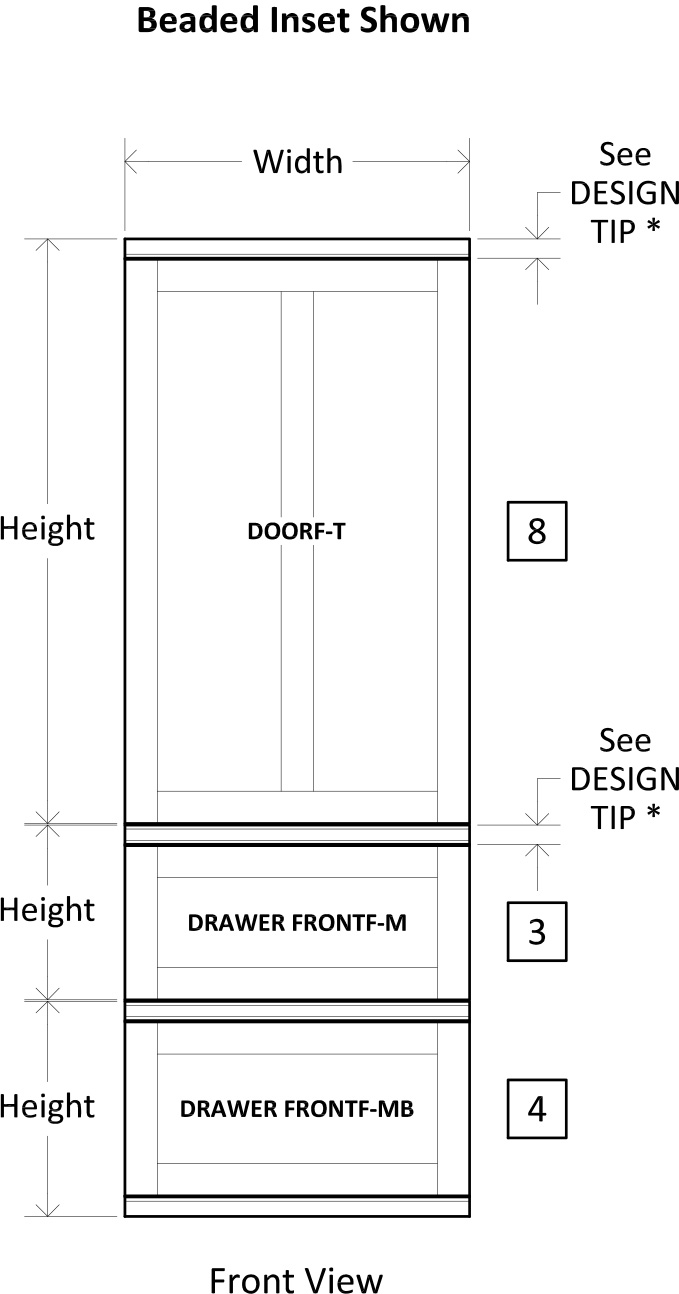

Specsheet App Panel Refrigeration Door Drawer Tall 3

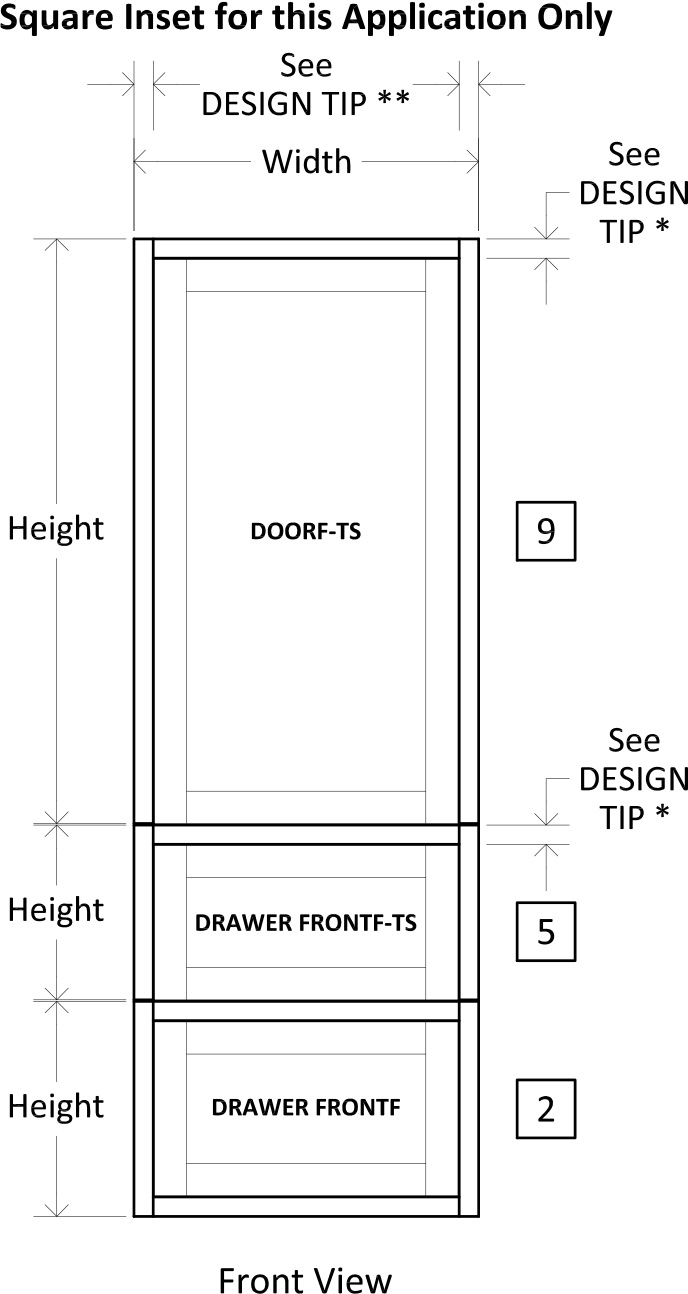

Specsheet App Panel Refrigeration Door Drawer Tall 4

No.	Item Code	Construction	Overlay
1	DRAWER FRONT	Framed \| Frameless	Full
2	DRAWER FRONTF	Framed	Inset
3	DRAWER FRONTF-M	Framed	Inset
4	DRAWER FRONTF-MB	Framed	Inset
5	DRAWER FRONTF-TS	Framed	Inset
6	DOOR	Framed \| Frameless	Full
7	DOORF	Framed	Inset
8	DOORF-T	Framed	Inset
9	DOORF-TS	Framed	Inset

Design Notes

Finished Two Sides and All Edges
Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required

Design Tip

* Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Door/Drawer Front Alignment with Adjacent Cabinet(s)
** Left and Right Face Frame Stiles can be Reduced with Wide Stile Left Modification (WSL) and Wide Stile Right Modification (WSR) to Maintain Door/Drawer Front Alignment with Adjacent Cabinet(s)

Door and Drawer Application Examples - Column

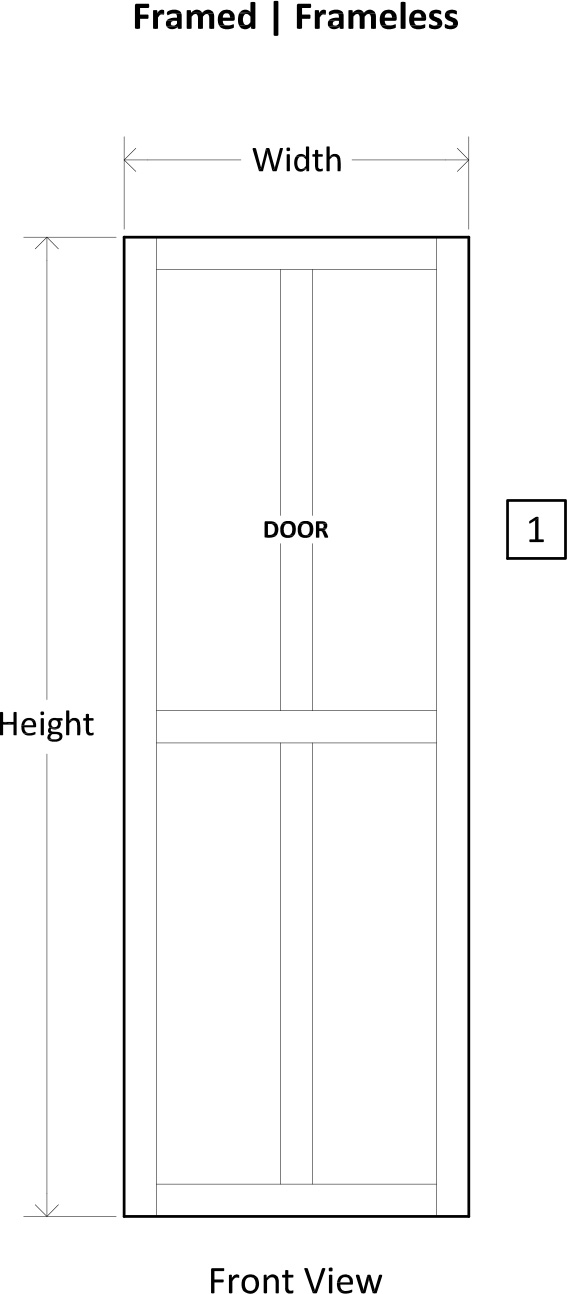

Specsheet App Panel Refrigeration Door Column 1

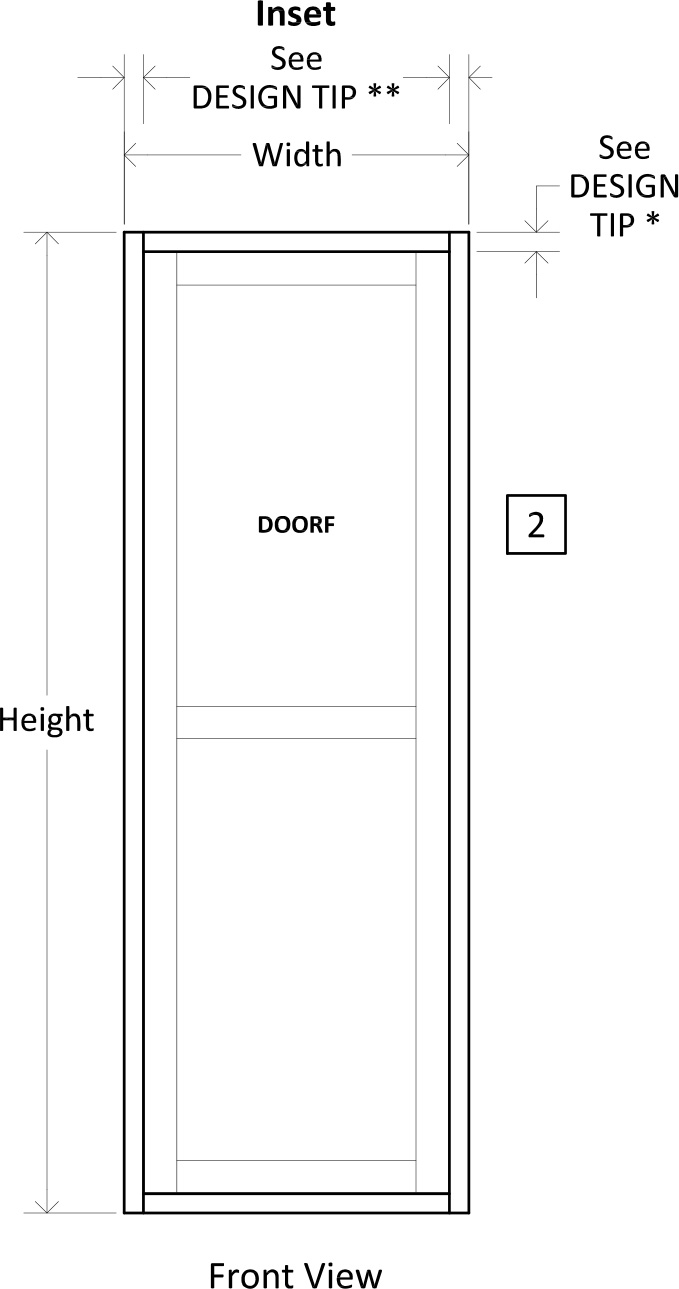

Specsheet App Panel Refrigeration Door Column 2

No.	Item Code	Construction	Overlay
1	DOOR	Framed \| Frameless	Full
2	DOORF	Framed	Inset

Design Notes

Finished Two Sides and All Edges
Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required

Design Tip

* Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Door/Drawer Front Alignment with Adjacent Cabinet(s)
** Left and Right Face Frame Stiles can be Reduced with Wide Stile Left Modification (WSL) and Wide Stile Right Modification (WSR) to Maintain Door Alignment with Adjacent Cabinet(s)
