Appliance Panel - Ice Maker Spec
Door Application Examples - Undercounter
| No. |
Item Code |
Construction |
Overlay |

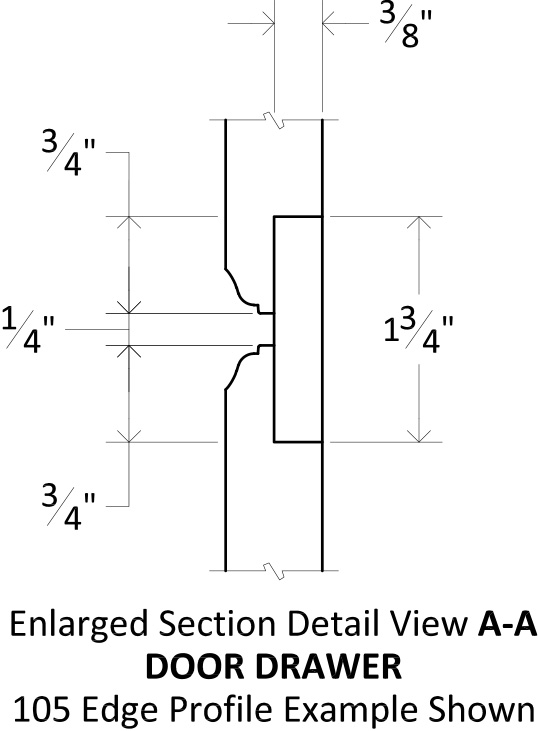

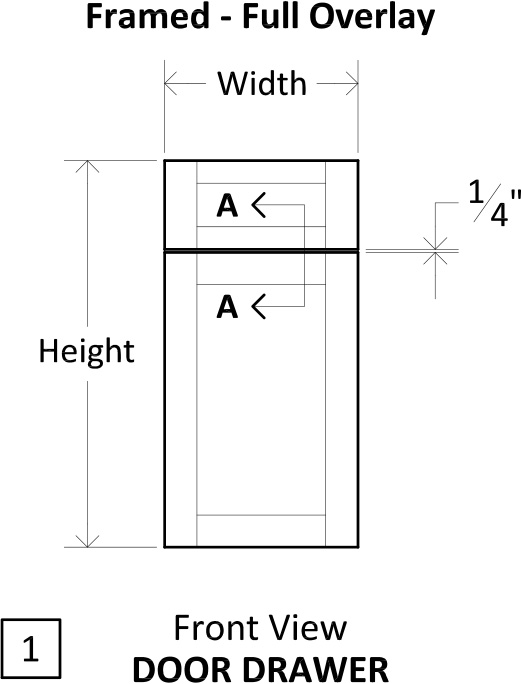

| 1 |
DOOR DRAWER |
Framed |
Full |

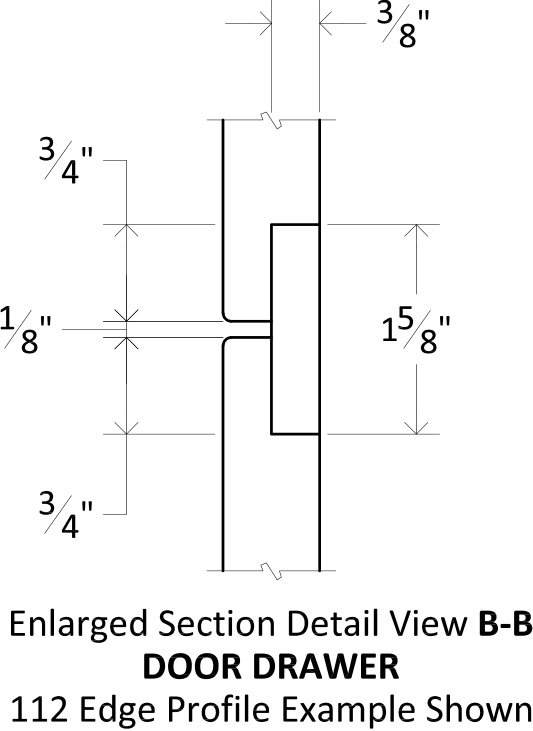

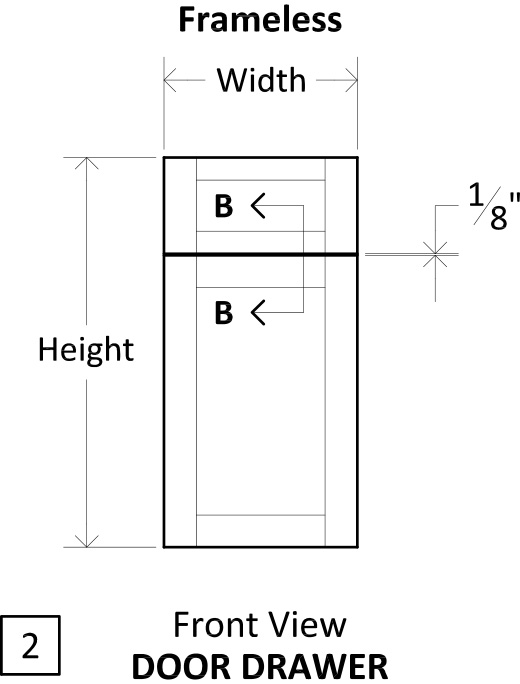

| 2 |
DOOR DRAWER |
Frameless |
Full |

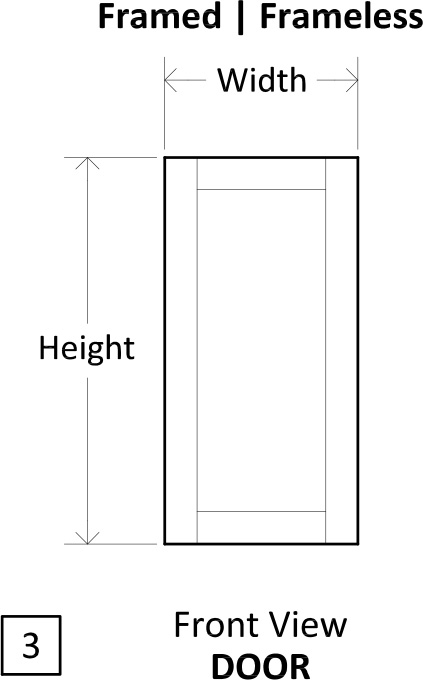

| 3 |
DOOR |
Framed | Frameless |
Full |

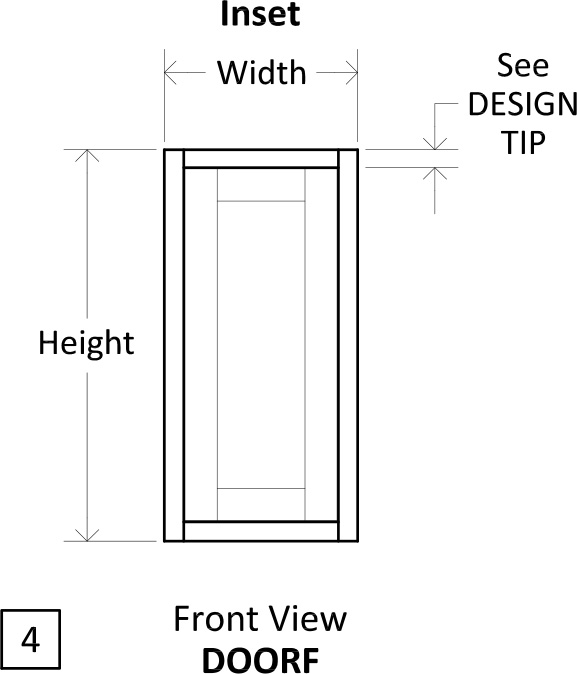

| 4 |
DOORF |
Framed |
Inset |

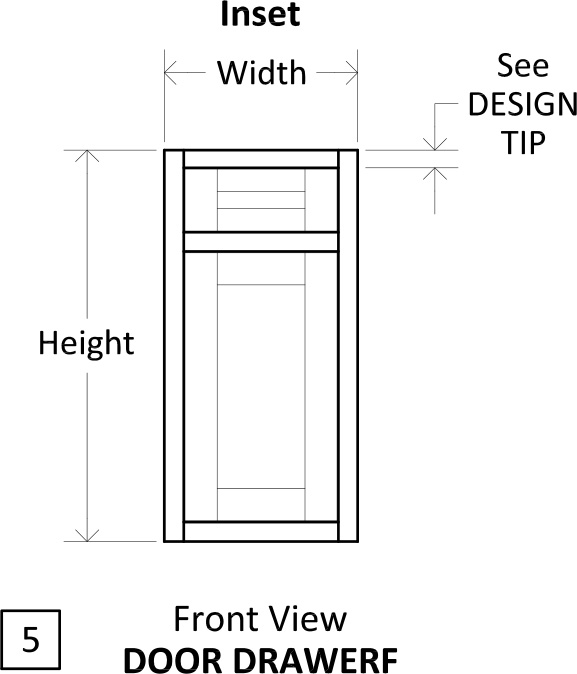

| 5 |
DOOR DRAWERF |
Framed |
Inset |
Design Notes
- Finished Two Sides and All Edges
- Order Spacer (SPACER) and Backer (PUV1/4) Panels Separately if Required
Design Tip
- Top Face Frame Rail can be Reduced with Wide Rail Top Modification (WRT) to Maintain Door/Drawer Front Alignment with Adjacent Cabinet(s)
