Appliance Cabinet - Utility Spec

Appliance Opening Details - Refrigerator

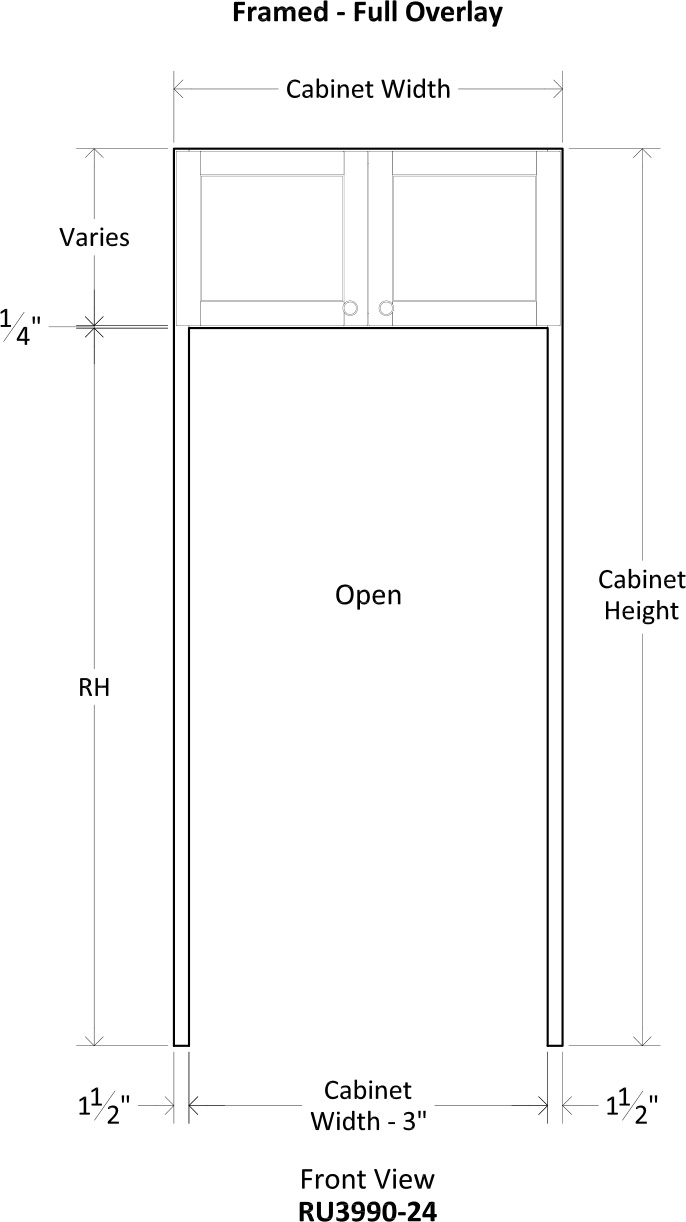

Specsheet App Cabinet Utility Refrigerator 1

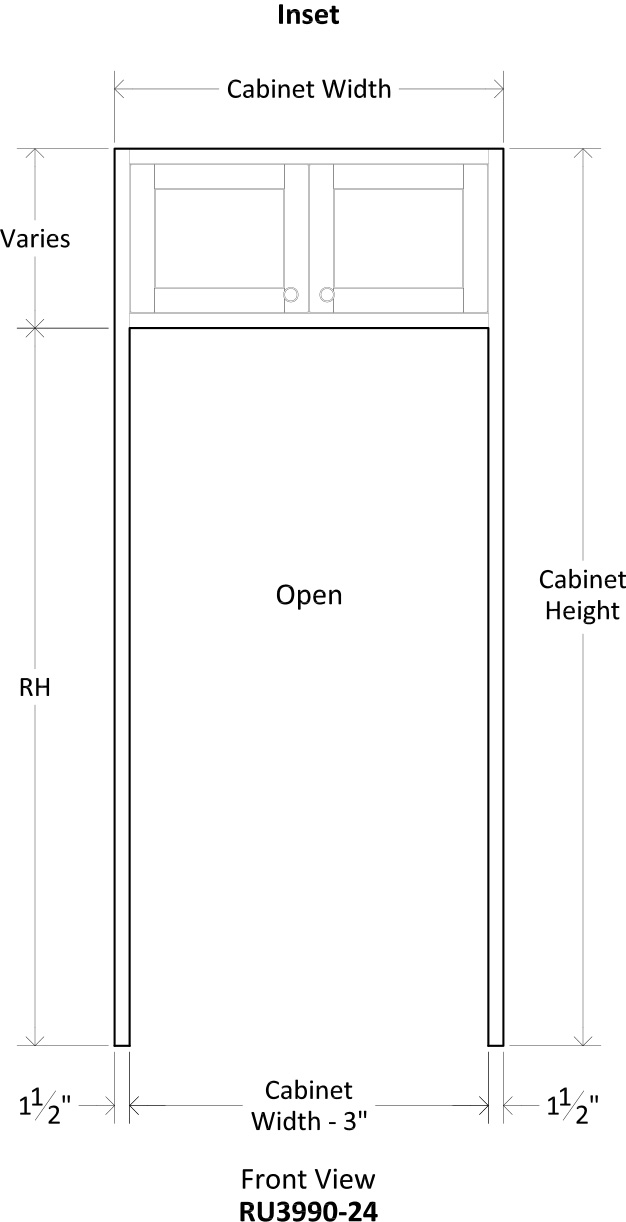

Specsheet App Cabinet Utility Refrigerator 2

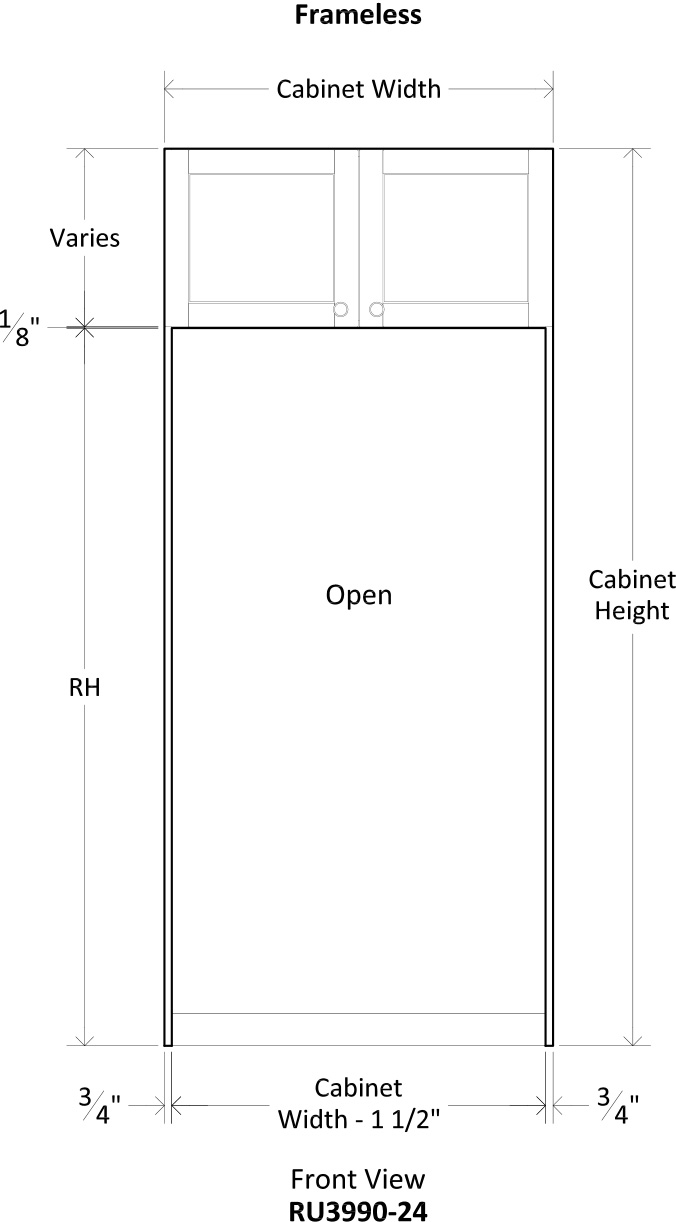

Specsheet App Cabinet Utility Refrigerator 3

Design Notes

  • Finished Interior Modification (FI) is Standard
  • Specify Appliance Make and Model Number
  • Specify RH - Refrigerator Opening Height

Appliance Opening Details - Double Oven - One Drawer

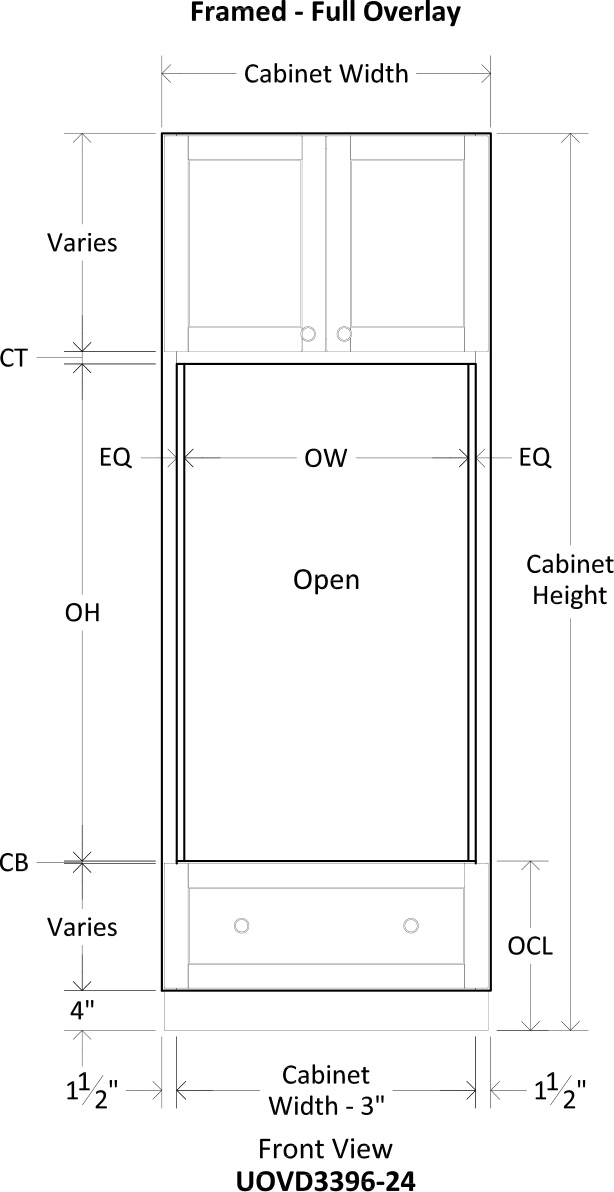

Specsheet App Cabinet Utility Dbloven 1

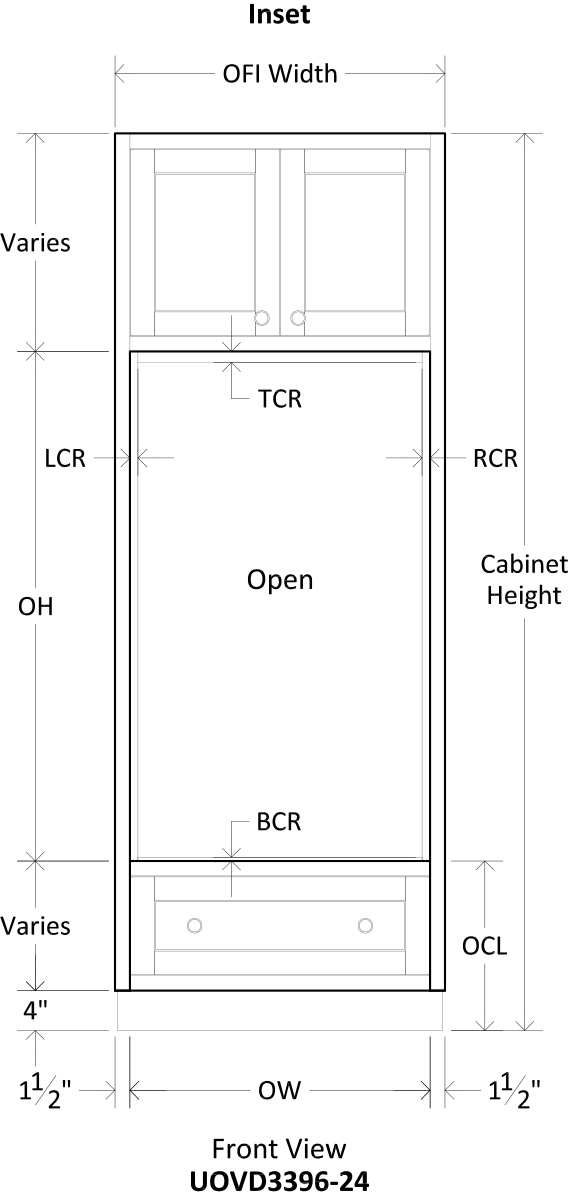

Specsheet App Cabinet Utility Dbloven 2

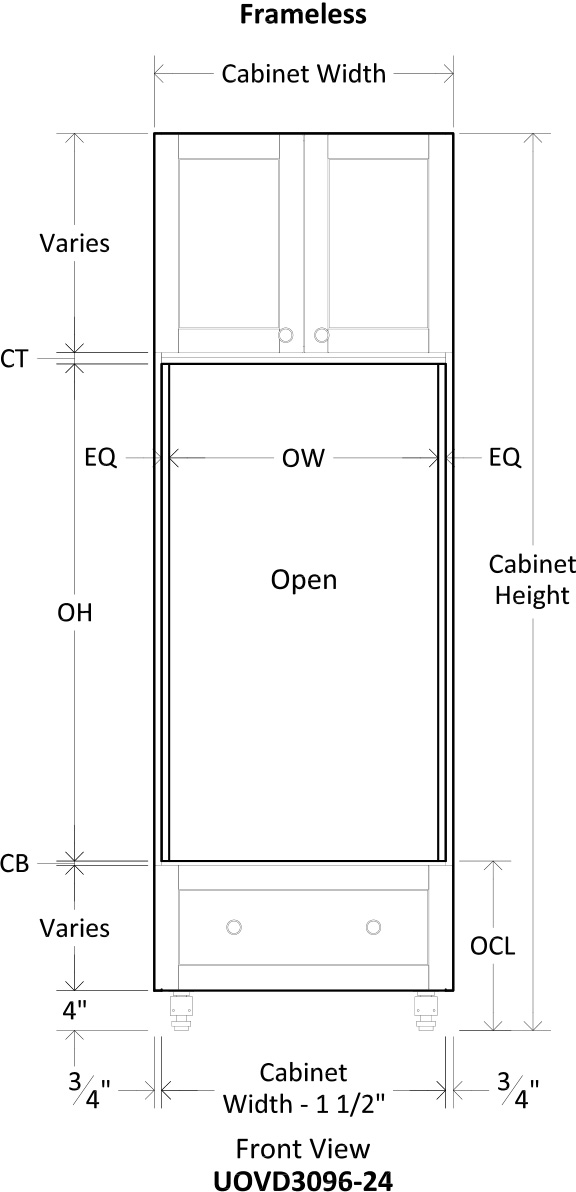

Specsheet App Cabinet Utility Dbloven 3

Design Notes

Cabinet Prompts

  • Appliance Opening has UV Coated Finish on Maple or Birch Interiors
  • Specify Appliance Make and Model Number
  • Specify OCL: Distance from Floor to Oven Cutout
  • Specify OH - Oven Opening Height
  • Specify OW - Oven Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed
  • Specify CT: Clearance from Appliance Cutout to Door Above
  • Specify CB: Clearance from Appliance Cutout to Drawer Front Below

OFI Mod Prompts for Flush Inset Installation

  • Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
  • Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
  • Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
  • Specify TCR - Top Cleat Reveal
  • Specify LCR - Left Cleat Reveal
  • Specify RCR - Right Cleat Reveal
  • Specify BCR - Bottom Cleat Reveal
  • Specify CSD - Cleat Setback Distance from Face of Cabinet

Appliance Opening Details - Combination Oven - One Drawer

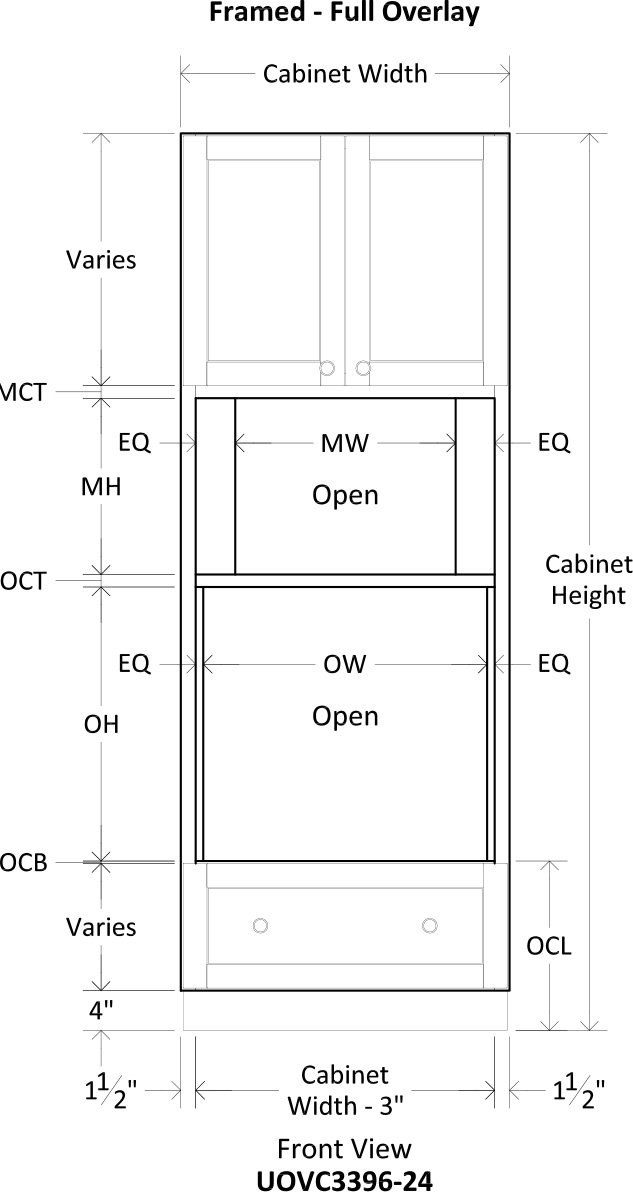

Specsheet App Cabinet Utility Combo Oven 1

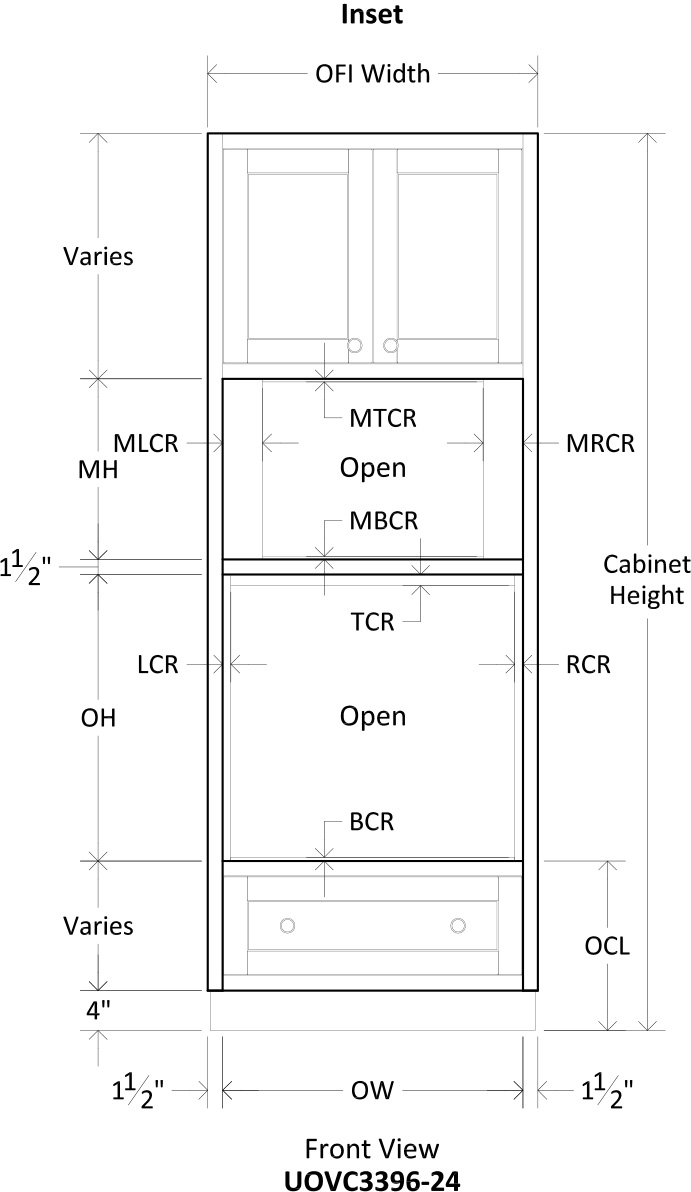

Specsheet App Cabinet Utility Combo Oven 2

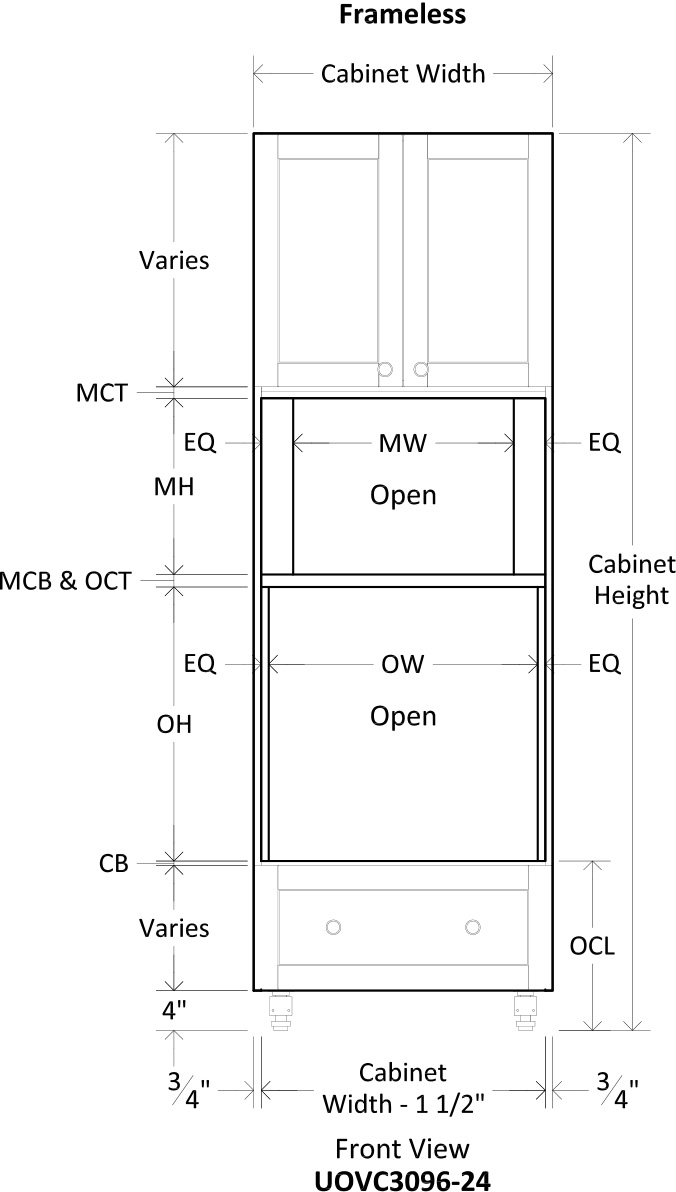

Specsheet App Cabinet Utility Combo Oven 3

Design Notes

Cabinet Prompts

  • Appliance Openings have UV Coated Finish on Maple or Birch Interiors
  • Specify Lower Appliance Make and Model Number
  • Specify Upper Appliance Make and Model Number
  • Specify OCL: Distance from Floor to Oven Cutout
  • Specify OH - Oven Opening Height
  • Specify OW - Oven Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed
  • Specify OCT: Clearance from Oven Cutout to Microwave Above
  • Specify OCB: Clearance from Oven Cutout to Drawer Front Below
  • Specify MH - Microwave Opening Height
  • Specify MW - Microwave Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed
  • Specify MCT: Clearance from Microwave Cutout to Doors Above
  • Specify MCB: Clearance from Microwave Cutout to Oven Below

OFI Mod Prompts for Flush Inset Installation

  • Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
  • Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
  • Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
  • Specify TCR - Top Cleat Reveal (Oven)
  • Specify LCR - Left Cleat Reveal (Oven)
  • Specify RCR - Right Cleat Reveal (Oven)
  • Specify BCR - Bottom Cleat Reveal (Oven)
  • Specify CSD - Cleat Setback Distance from Face of Cabinet (Oven)
  • Specify MTCR - Top Cleat Reveal (Microwave)
  • Specify MLCR - Left Cleat Reveal (Microwave)
  • Specify MRCR - Right Cleat Reveal (Microwave)
  • Specify MBCR - Bottom Cleat Reveal (Microwave)
  • Specify MCSD - Cleat Setback Distance from Face of Cabinet (Microwave)

Appliance Opening Details - Oven - Two Drawer

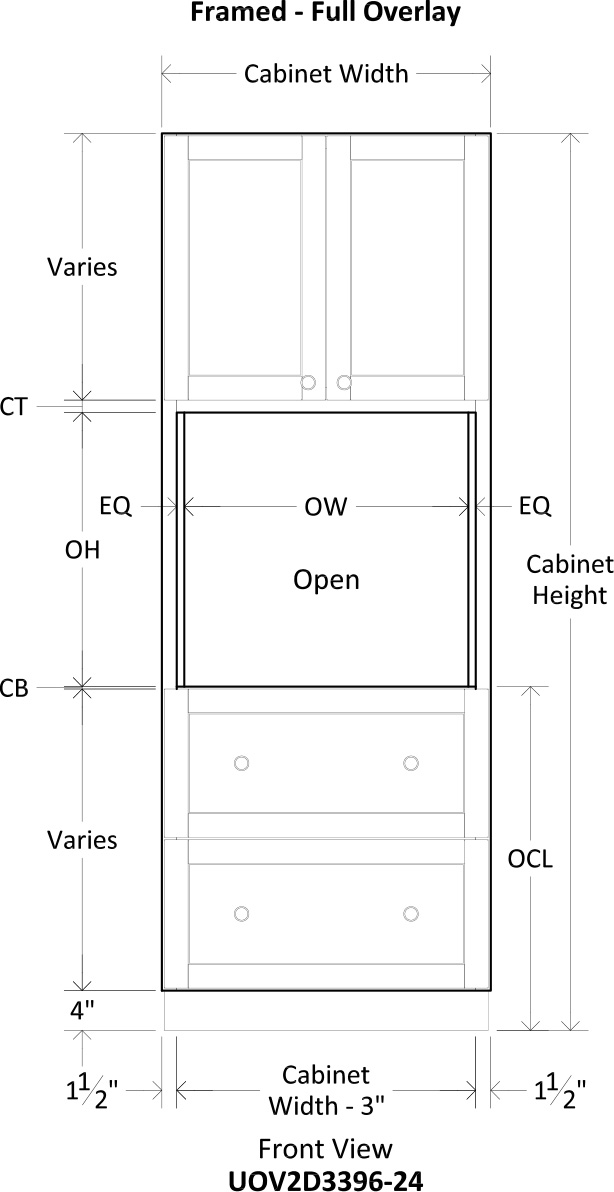

Specsheet App Cabinet Utility Oven 2Drawer 1
Specsheet App Cabinet Utility Oven 2Drawer 2

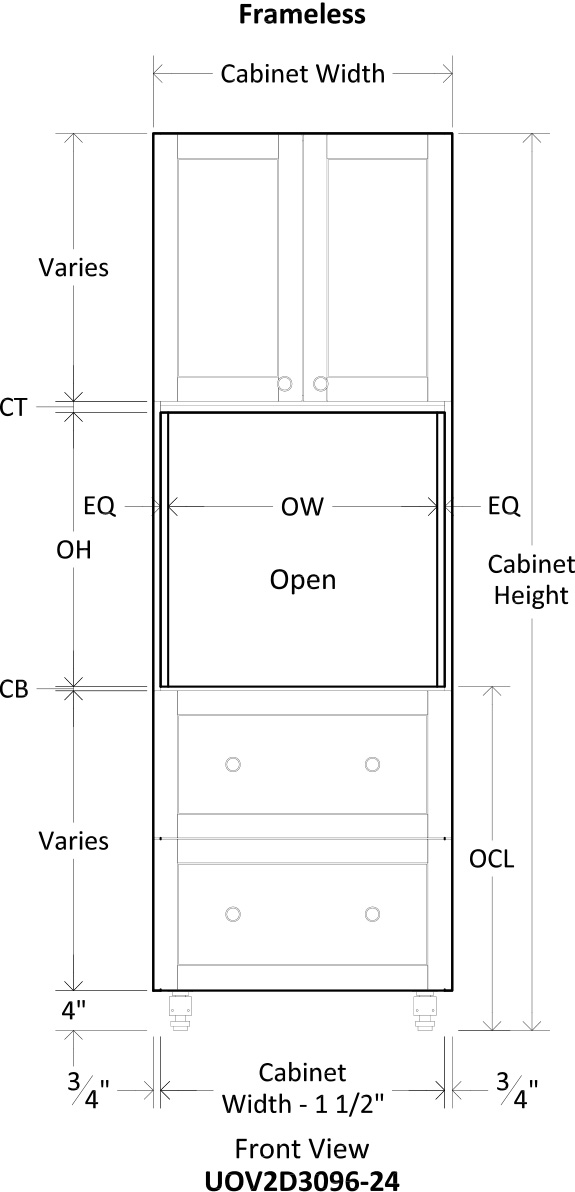

Specsheet App Cabinet Utility Oven 2Drawer 3

Design Notes

Cabinet Prompts

  • Appliance Opening has UV Coated Finish on Maple or Birch Interiors
  • Specify Appliance Make and Model Number
  • Specify OCL: Distance from Floor to Oven Cutout
  • Specify OH - Oven Opening Height
  • Specify OW - Oven Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed
  • Specify CT: Clearance from Appliance Cutout to Door Above
  • Specify CB: Clearance from Appliance Cutout to Door/Drawer Front Below

OFI Mod Prompts for Flush Inset Installation

  • Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
  • Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
  • Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
  • Specify TCR - Top Cleat Reveal
  • Specify LCR - Left Cleat Reveal
  • Specify RCR - Right Cleat Reveal
  • Specify BCR - Bottom Cleat Reveal
  • Specify CSD - Cleat Setback Distance from Face of Cabinet

Appliance Opening Details - Oven - Three Drawer

Specsheet App Cabinet Utility Oven 3Drawer 1

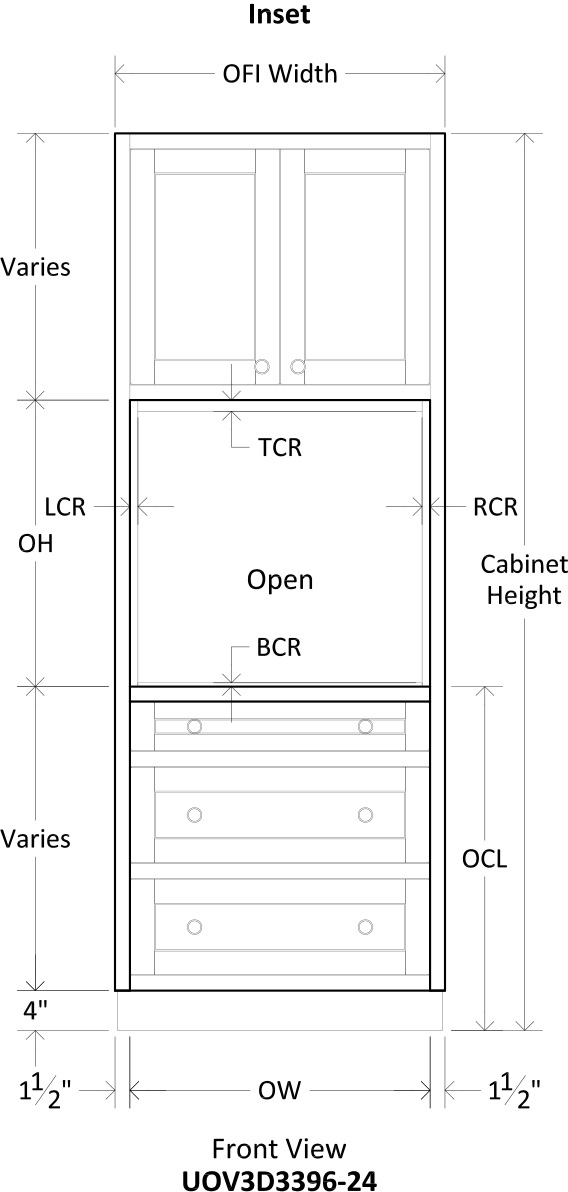

Specsheet App Cabinet Utility Oven 3Drawer 2
Specsheet App Cabinet Utility Oven 3Drawer 3

Design Notes

Cabinet Prompts

  • Appliance Opening has UV Coated Finish on Maple or Birch Interiors
  • Specify Appliance Make and Model Number
  • Specify OCL: Distance from Floor to Oven Cutout
  • Specify OH - Oven Opening Height
  • Specify OW - Oven Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed
  • Specify CT: Clearance from Appliance Cutout to Door Above
  • Specify CB: Clearance from Appliance Cutout to Door/Drawer Front Below

OFI Mod Prompts for Flush Inset Installation

  • Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
  • Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
  • Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
  • Specify TCR - Top Cleat Reveal
  • Specify LCR - Left Cleat Reveal
  • Specify RCR - Right Cleat Reveal
  • Specify BCR - Bottom Cleat Reveal
  • Specify CSD - Cleat Setback Distance from Face of Cabinet

Appliance Opening Details - Oven - Full Height Door

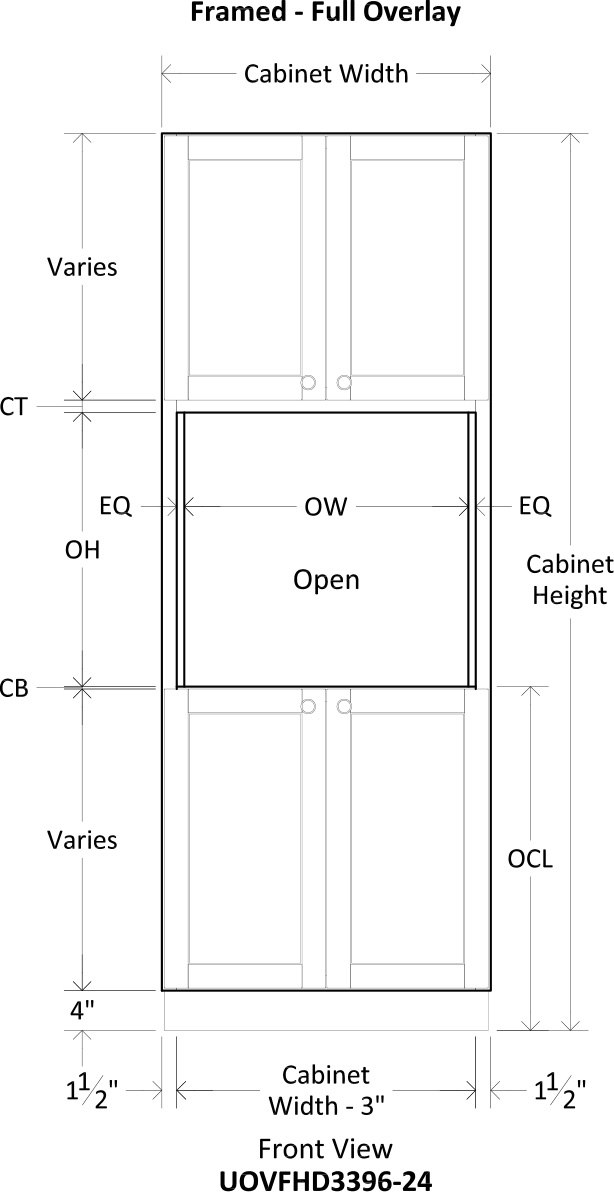

Specsheet App Cabinet Utility Oven Door 1

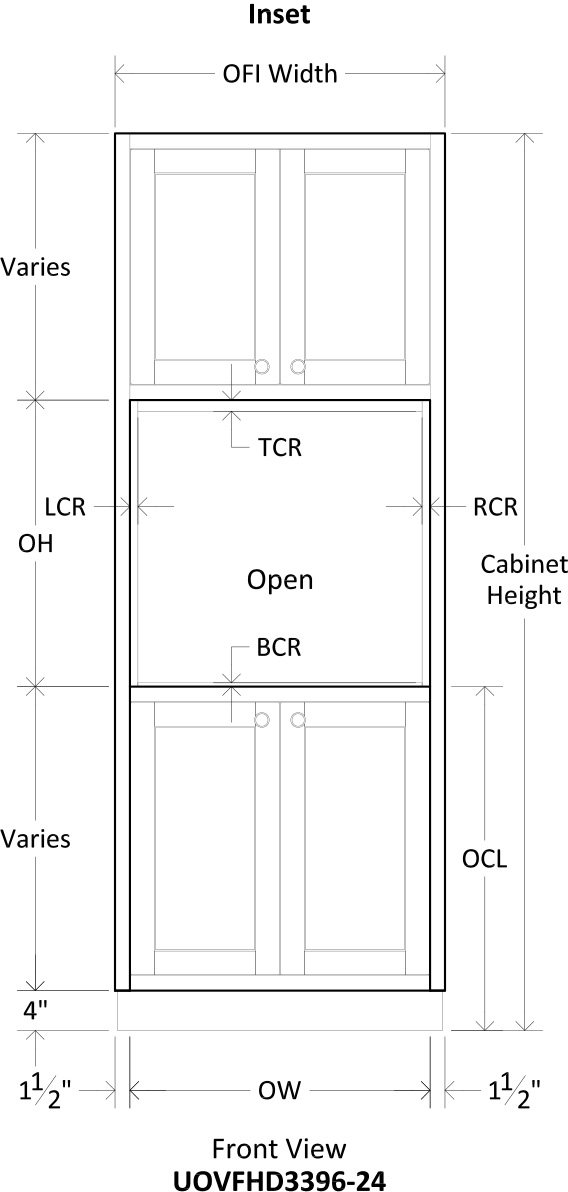

Specsheet App Cabinet Utility Oven Door 2
Specsheet App Cabinet Utility Oven Door 3

Design Notes

Cabinet Prompts

  • Appliance Opening has UV Coated Finish on Maple or Birch Interiors
  • Specify Appliance Make and Model Number
  • Specify OCL: Distance from Floor to Oven Cutout
  • Specify OH - Oven Opening Height
  • Specify OW - Oven Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed
  • Specify CT: Clearance from Appliance Cutout to Door Above
  • Specify CB: Clearance from Appliance Cutout to Door/Drawer Front Below

OFI Mod Prompts for Flush Inset Installation

  • Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
  • Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
  • Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
  • Specify TCR - Top Cleat Reveal
  • Specify LCR - Left Cleat Reveal
  • Specify RCR - Right Cleat Reveal
  • Specify BCR - Bottom Cleat Reveal
  • Specify CSD - Cleat Setback Distance from Face of Cabinet

Appliance Opening Details - Coffee

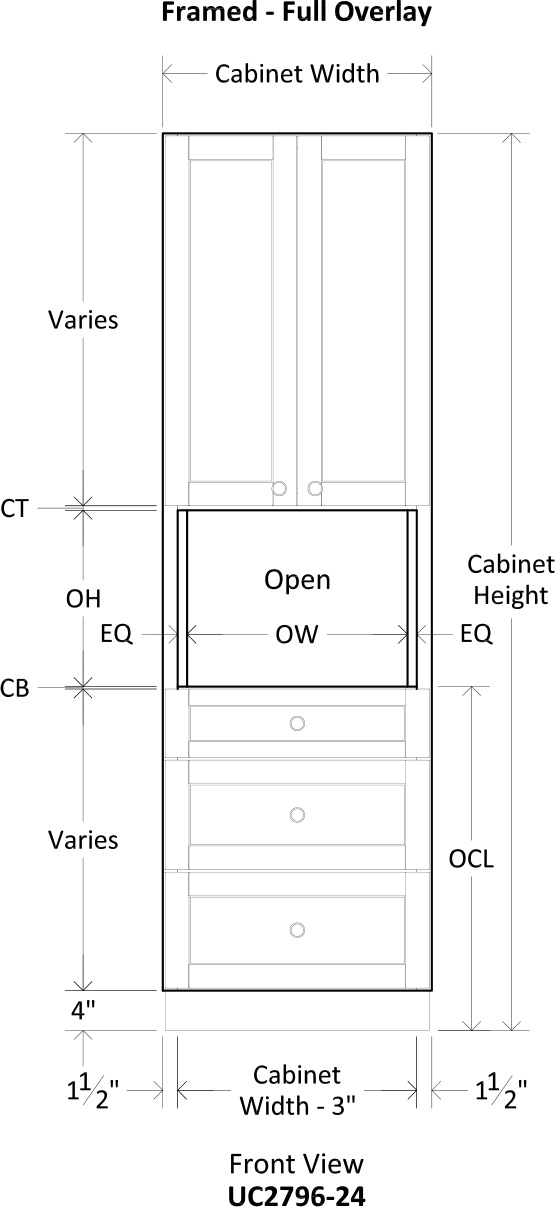

Specsheet App Cabinet Utility Coffee 1

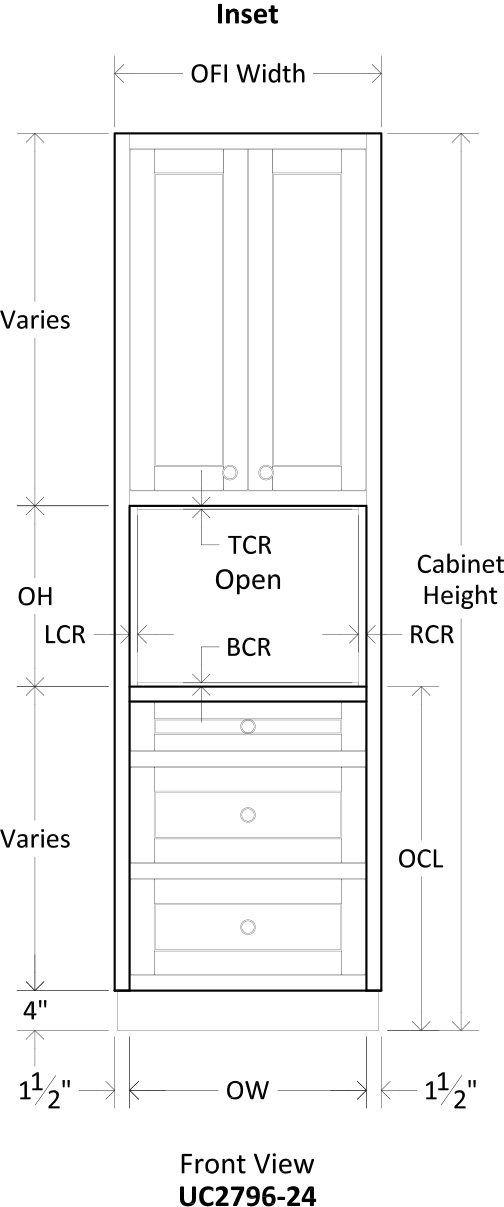

Specsheet App Cabinet Utility Coffee 2

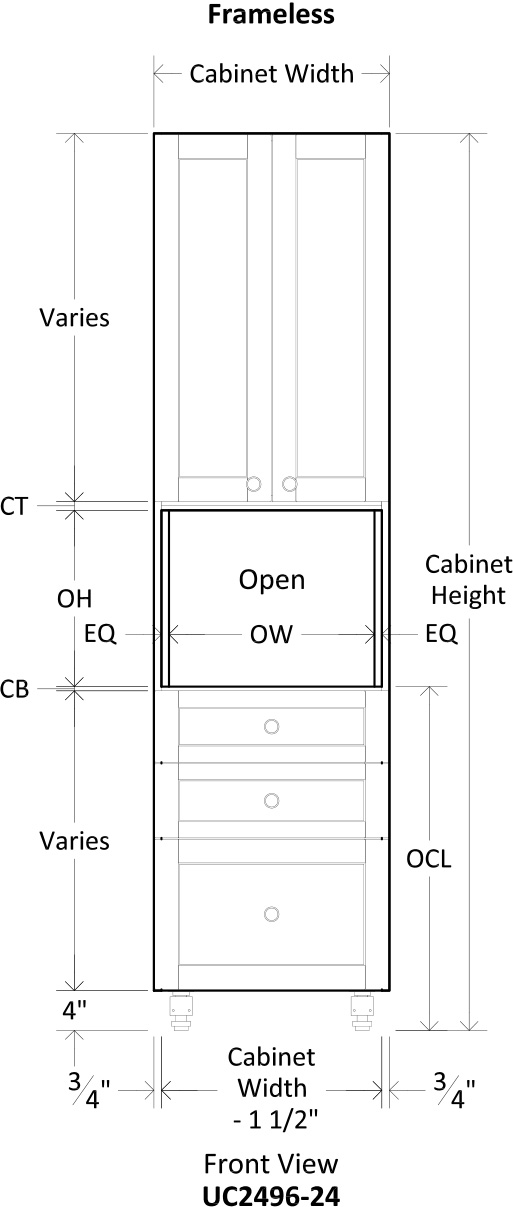

Specsheet App Cabinet Utility Coffee 3

Design Notes

Cabinet Prompts

  • Appliance Opening has UV Coated Finish on Maple or Birch Interiors
  • Specify Appliance Make and Model Number
  • Specify OCL: Distance from Floor to Oven Cutout
  • Specify OH - Oven Opening Height
  • Specify OW - Oven Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed
  • Specify CT: Clearance from Appliance Cutout to Door Above
  • Specify CB: Clearance from Appliance Cutout to Door/Drawer Front Below

OFI Mod Prompts for Flush Inset Installation

  • Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
  • Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
  • Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
  • Specify TCR - Top Cleat Reveal
  • Specify LCR - Left Cleat Reveal
  • Specify RCR - Right Cleat Reveal
  • Specify BCR - Bottom Cleat Reveal
  • Specify CSD - Cleat Setback Distance from Face of Cabinet
