Appliance Cabinet - Base Spec

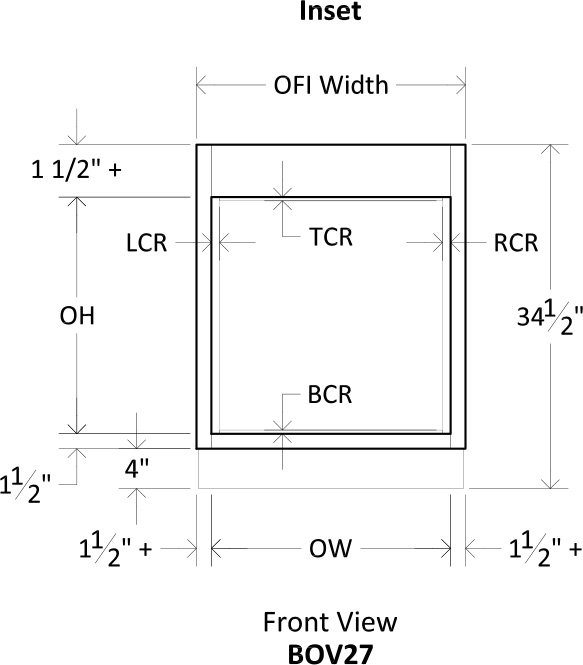

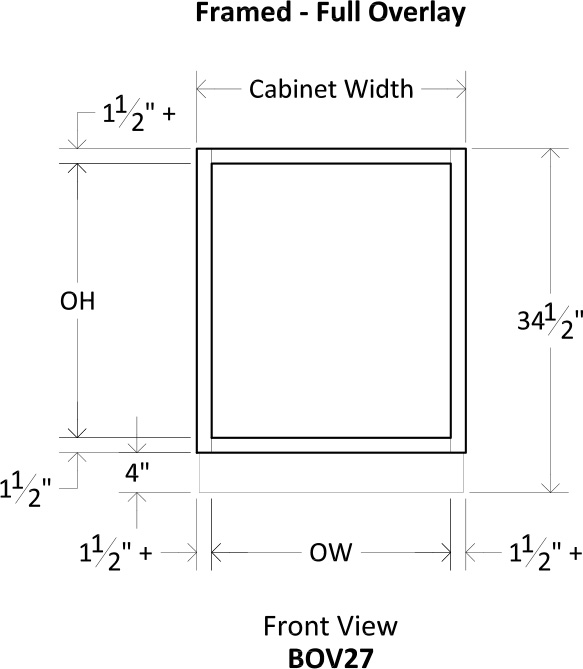

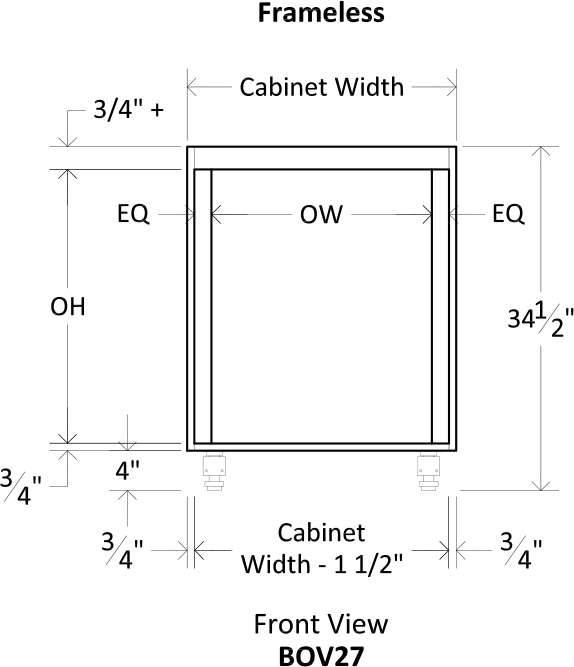

Appliance Opening Details - Oven
Design Notes
- Appliance Opening has UV Coated Finish on Maple or Birch Interiors, Finished Interior Modification (FI) is Available
- Specify Appliance Make and Model Number
- Specify OH - Oven Opening Height
- Specify OW - Oven Opening Width - Frameless: Fillers are Added if Needed to Maintain Cabinet Width
- Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
- Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
- Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
- Specify TCR - Top Cleat Reveal
- Specify LCR - Left Cleat Reveal
- Specify RCR - Right Cleat Reveal
- Specify BCR - Bottom Cleat Reveal
- Specify CSD - Cleat Setback Distance from Face of Cabinet

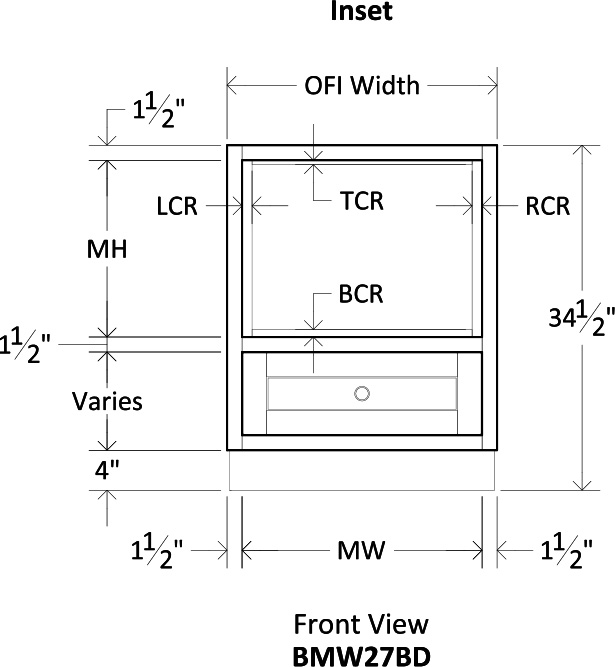

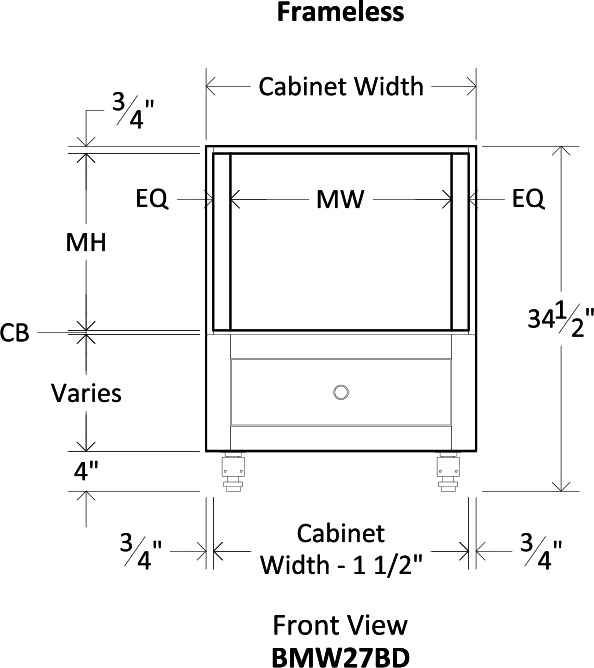

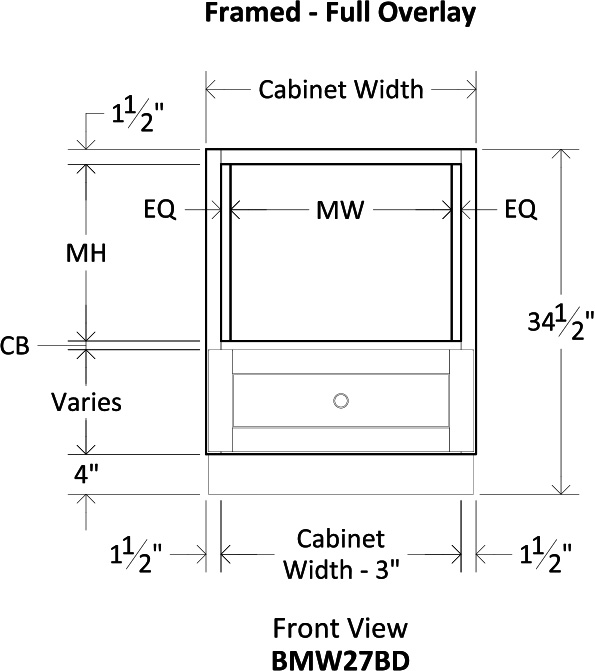

Appliance Opening Details - Microwave - One Drawer Bottom
Design Notes
- Appliance Opening has UV Coated Finish on Maple or Birch Interiors, Finished Interior Modification (FI) is Available
- Specify Appliance Make and Model Number
- Specify MH - Microwave Opening Height
- Specify MW - Microwave Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed to Maintain Standard Drawer Side Reveals
- Specify CB: Clearance from Appliance Cutout to Drawer Front Below
- Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
- Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
- Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
- Specify TCR - Top Cleat Reveal
- Specify LCR - Left Cleat Reveal
- Specify RCR - Right Cleat Reveal
- Specify BCR - Bottom Cleat Reveal
- Specify CSD - Cleat Setback Distance from Face of Cabinet

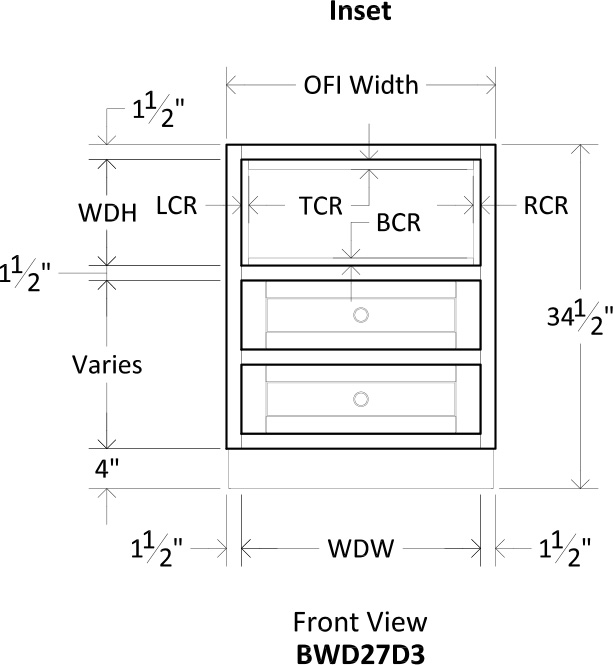

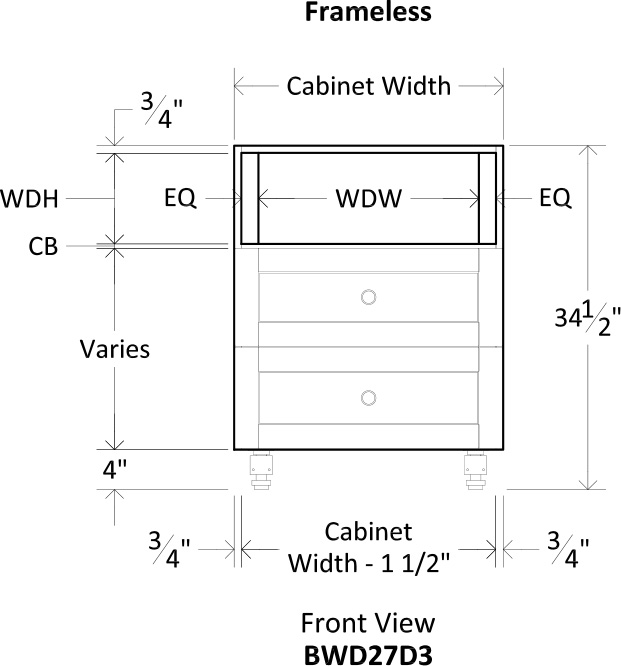

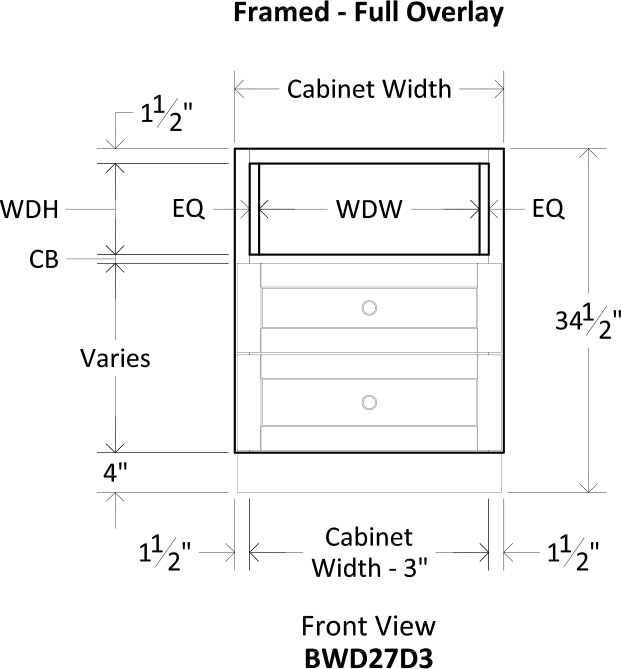

Appliance Opening Details - Warming Drawer - Two Drawer Bottom
Design Notes
- Appliance Opening has UV Coated Finish on Maple or Birch Interiors, Finished Interior Modification (FI) is Available
- Specify Appliance Make and Model Number
- Specify WDH - Warming Drawer Opening Height
- Specify WDW - Warming Drawer Opening Width - Framed - Full Overlay and Frameless: Fillers are Added if Needed to Maintain Standard Drawer Side Reveals
- Specify CB: Clearance from Appliance Cutout to Drawer Front Below
- Specify Oven Flush Inset Modification (OFI) when Appliance Installation is Flush Inset
- Specify OFI Width - Cabinet Width (Can Increase Up to 1/4")
- Specify OFI Depth - Cabinet Depth (Can Increase Up to 1")
- Specify TCR - Top Cleat Reveal
- Specify LCR - Left Cleat Reveal
- Specify RCR - Right Cleat Reveal
- Specify BCR - Bottom Cleat Reveal
- Specify CSD - Cleat Setback Distance from Face of Cabinet
